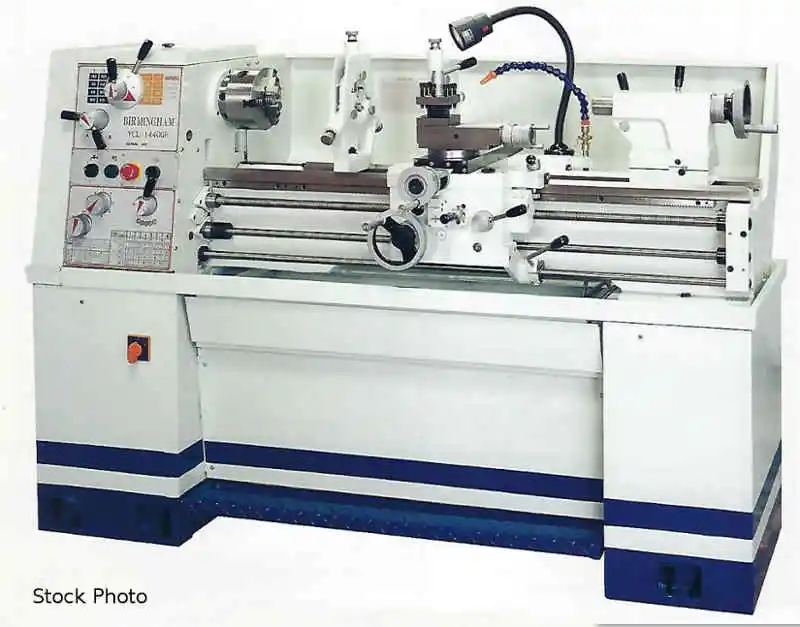

NEW BIRMINGHAM YCL-1440GH

BIRMINGHAM (NEW) MODEL YCL-1440GH PRECISION GAP
BED LATHE

CAPACITY
- 14" SWING OVER BED
- 40" BETWEEN CENTERS
- 8-5/8" SWING OVER CROSS SLIDE
- 8-1/8" BED WIDTH

HEADSTOCK
- D1-4 SPINDLE NOSE
- 1-1/2" SPINDLE BORE
- MT# 5 SPINDLE TAPER
- MT# 3 SPINDLE TAPER WITH SLEEVE
- 16 SPINDLE SPEEDS 45-1,800 RPM

FEEDS AND THREADS
- (40) LONGITUDINAL FEEDS, 0.0012 - 0.0294"/REV
- (40) CROSS FEEDS, 0.0003 - 0.01"/REV
- (40) INCH THREADS, 4 - 112 TPI
- (22) METRIC THREADS, 0.45 - 7.5 MM
- 7/8" LEADSCREW DIAMETER
- 8 TPI LEADSCREW PITCH THREADS

CARRIAGE
- 7" CROSS SLIDE TRAVEL
- 4" COMPOUND SLIDE TRAVEL
- 5/8" X 5/8" TOOL SIZE

TAILSTOCK
- 2-3/4" QUILL DIAMETER
- MT #3 QUILL CENTER TAPER
- 4-3/4" QUILL TRAVEL

MOTORS
- 3 HP MAIN MOTOR, 220 VOLT, 3 PHASE, 2 SPEED
- 1/8 HP COOLANT PUMP MOTOR, 220 VOLT, 3 PHASE

STANDARD EQUIPMENT
- FOLLOW REST
- 12" FACE PLATE
- 3-3-4" STEADY REST
- 6" 3-JAW CHUCK
- 8" 4-JAW CHUCK
- COOLANT SYSTEM
- HALOGEN WORK LIGHT
- 4-WAY TOOL POST
- THREAD CHASING DIAL
- FRONT PULL-OUT CHIP TRAY
- CENTERS AND REDUCING SLEEVE
- TOOL KIT WITH TOOLS AND LEVELING PADS
- FULL LENGTH FOOT BRAKE
- FULL LENGTH SPLASH GUARD
- ALL INCH/MM DUAL DIALS
- SPINDLE JOG BUTTON CONTROL
- OPERATION AND PARTS MANUAL

FEATURES
- NO CHANGE GEARS REQUIRED
- MAGNETIC CONTROLS AND SPINDLE FOOT BRAKE
- T-SLOTTED COMPOUND
- HARDENED AND PRECISION GROUND
MAIN SPINDLE, GEARS AND SHAFTS
- INDUCTION HARDENED AND PRECISION GROUND
BEDWAYS
- BED MADE OF FINE GRAIN HIGH TENSILE CAST IRON
- MAIN SPINDLE SUPPORTED AT 3-POINT BY PRECISION
BEARINGS
Power: 220 (3-Phase)
