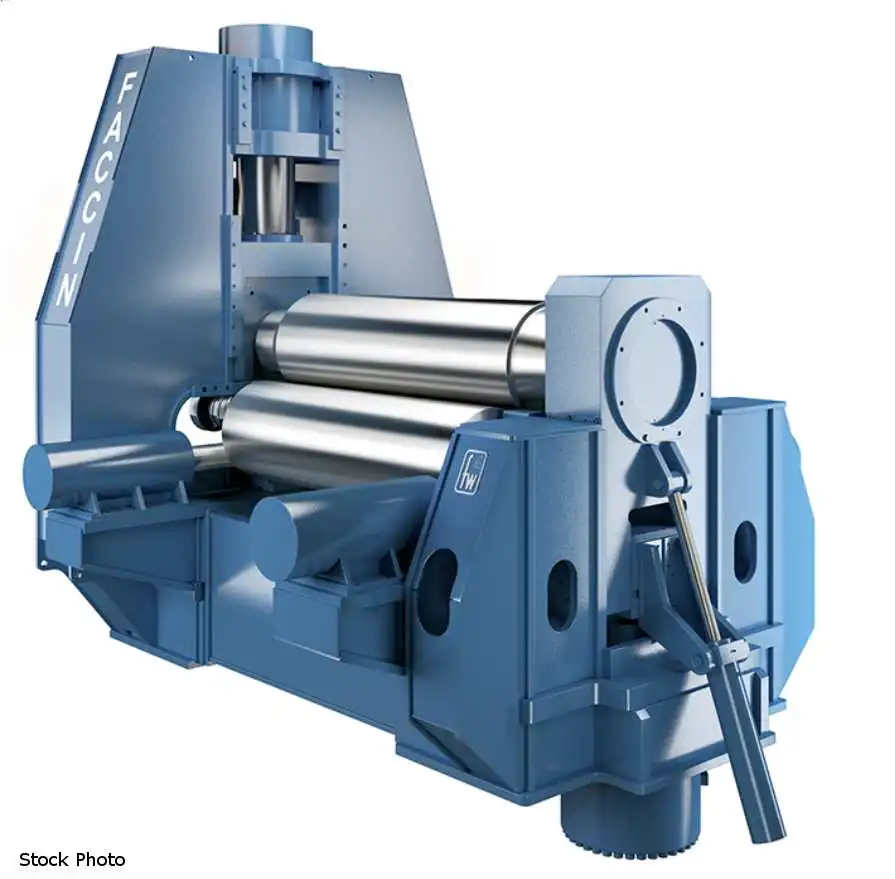

NEW FACCIN HAV-3138

FACCIN (NEW) MODEL HAV-3138 3-ROLL VARIABLE AXIS
BENDING ROLL

120.08" PLATE WIDTH
14.96" TOP ROLL DIAMETER
13.78" SIDE ROLLS DIAMETER
138,000 - 145,000 CERTIFIED ROLLS RESISTANCE
254 TON BENDING FORCE ON TOP ROLL
3,600 PSI PUMP PRESSURE
INFINITELY VARIABLE ROTATION SPEED UP TO 23 FPM
40 HP

FULL-LENGTH CAPACITY AT 37.7 KSI
- 1.378" BENDING THICKNESS WITH 75" INSIDE DIA.
- 0.71" PRE-BEND THICKNESS WITH 75" INSIDE DIA.
- 0.945" BENDING THICKNESS WITH 20" INSIDE DIA.
- 0.551" PRE-BEND THICKNESS WITH 20" INSIDE DIA.

HALF-LENGTH CAPACITY AT 37.7 KSI
- 1.732" BENDING THICKNESS WITH 75" INSIDE DIA.
- 0.906" PRE-BEND THICKNESS WITH 75" INSIDE DIA.

FULL-LENGTH CAPACITY AT 52.2 KSI
- 1.18" BENDING THICKNESS WITH 75" INSIDE DIA.
- 0.591" PRE-BEND THICKNESS WITH 75" INSIDE DIA.
- 0.827" BENDING THICKNESS WITH 20" INSIDE DIA.
- 0.472" PRE-BEND THICKNESS WITH 20" INSIDE DIA.

HALF-LENGTH CAPACITY AT 52.2 KSI
- 1.496" BENDING THICKNESS WITH 75" INSIDE DIA.
- 0.748" PRE-BEND THICKNESS WITH 75" INSIDE DIA.

STANDARD EQUIPMENT
- HARDENED AND POLISHED ROLLS
- SIEMENS TOUCH PANEL NUMERICAL CONTROL UNIT
PGS-CLASSIC SERIES
- CONICAL BENDING WITH ELECTRONIC CONTROL
- SIMULTANEOUS MOVEMENT AND ROTATION OF ROLLS
- HYDRAULIC ROLL MICRO ADJUSTMENT FROM PLC
- DESIGNED TO ACCEPT FUTURE UPGRADES
- EXTRA LONG DROP END
- ELECTRONIC BALANCING SYSTEM FOR PARALLELISM
- CENTRALIZED PUMP LUBRICATION SYSTEM
- CLIMATE CONTROL FOR HYDRAULIC OIL
- PRESSURE GAUGES TO MONITOR BENDING
- EXTRA TORQUE AND SPECIAL BRAKING POWER SYSTEM
- MICRO-POSITIONING CONTROL OF ROLL MOVEMENTS
- VARIABLE GEOMETRY LINEAR SLIDE SYSTEM
- CABLE PULL/MUSHROOM SWITCHES FOR EMERGENCY STOP
- HIGH PRECISION AND PRODUCTIVITY PACKAGE
- DESIGNED AND MANUFUFACTURED ACCORDING TO
MACHINERY DIRECTIVE 2006/42/EC

OPTIONS AVAILABLE - PRICE ON REQUEST
- 3-ROLL DRIVE SYSTEM
- INTERCHANGEABLE TOP ROLL
- MACHINE READY HOT ROLLING
- TOP SUPPORT
- SIDE SUPPORTS
- 4-AXIS CLAMPING SYSTEM FOR TACK WELDING
- ADVANCED WIRELESS CONTROL
- RADIUS MEASUREING SYSTEM
