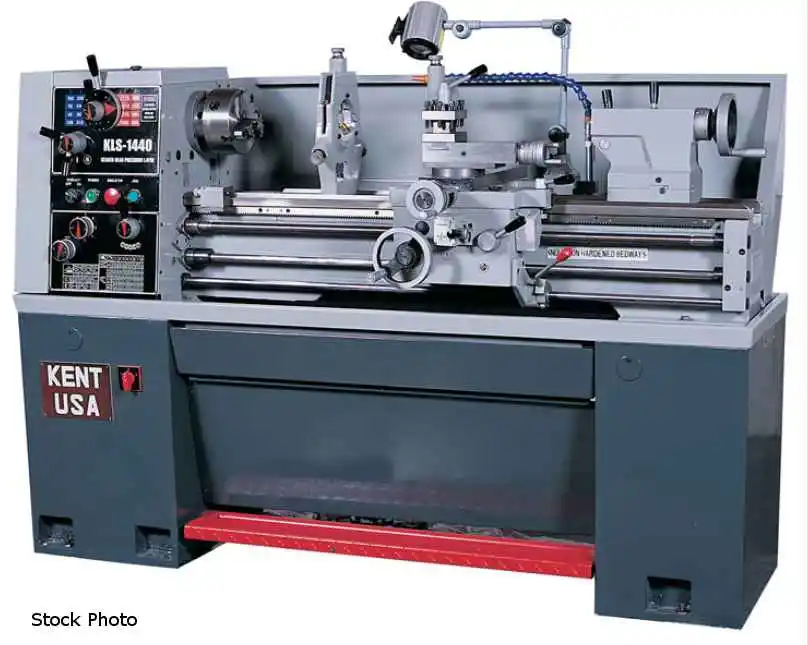

NEW KENT USA KLS-1440

KENT USA (NEW) MODEL KLS-1440 ENGINE LATHE

CAPACITY
- 14" SWING OVER BED
- 8-5/8" SWING OVER CROSS SLIDE
- 20" SWING OVER GAP
- 8-1/8" BED WIDTH
- 40" BETWEEN CENTERS
- 7" CROSS SLIDE TRAVEL
- 4" TOP SLIDE TRAVEL

MAIN SPINDLE
- 16 SPINDLE SPEEDS (2 RANGES) 45-1800 RPM
- 1-1/2" THROUGH HOLE DIAMETER
- D1-4 SPINDLE NOSE
- MT #5 SPINDLE BORE TAPER

THREADS
- 40 INCH THREADS (4-112) TPI
- 22 METRIC THREADS (0.45-7.5) MM

FEEDS
- 0.0012 - 0.0294 IPR LONGITUDINAL FEEDS
- 0.0004 - 0.0108 IPR CROSS FEEDS

LEADSCREW
- 7/8" DIAMETER
- 8 TPI PITCH

TAILSTOCK
- 4-3/4" QUILL TRAVEL
- 1-25/32" QUILL DIAMETER
- MT #3 QUILL BORE TAPER

POWER
- 3 HP MAIN MOTOR (2-SPEED, 3-PHASE, 220 VOLTS)
- 1/8 HP COOLANT PUMP MOTOR (3-PHASE)

FEATURES
- 16 SPEEDS, ALL GEARED HEADSTOCK
- JOG BUTTON FOR EASY GEAR CHANGES
- HARDENED AND GROUND GEARS AND BEDWAYS
- CAST IRON MACHINE BEDWAYS AND BASE
- REMOVABLE CHIP PAY FOR EASY CLEAN UP
- FOOT BRAKE AND T-SLOT COMPOUND
- INCH/METRIC READING ON DIALS
- INCH/METRIC RULER ON TAILSTOCK QUILL

STANDARD EQUIPMENT
- 3-JAW CHUCK (6")
- 4-JAW CHUCK (8")
- 12" FACEPLATE
- STEADY REST
- FOLLOW REST
- 4-POSITION TOOL POST
- COOLANT SYSTEM
- FULL-LENGTH SPLASH GUARD
- WORK LIGHT
- MICRO CARRIAGE STOP
- THREAD CHASING DIAL
- TOOL BOX WITH STANDARD TOOLS

OPTION AVAILABLE - PRICE ON REQUEST
- ACU-RITE DRO INSTALLATION
- ALORIS TOOL POST
- 5C LEVER-STYLE COLLET CLOSER
- ROYAL SPINDLE-TYPE LIVE CENTER
- LIVE CENTER SET WITH INTERCHANGEABLE TIPS
- BTC 3-JAW CHUCK WITH BACK PLATE (ZERO SET)
- TRANSFORMER FOR 440 VOLTS
- PHASE CONVERTER FOR SINGLE PHASE
- RUSTLICK LUBRICANT
Power: 220 (3-Phase)
