NEW HYDMECH H-22A

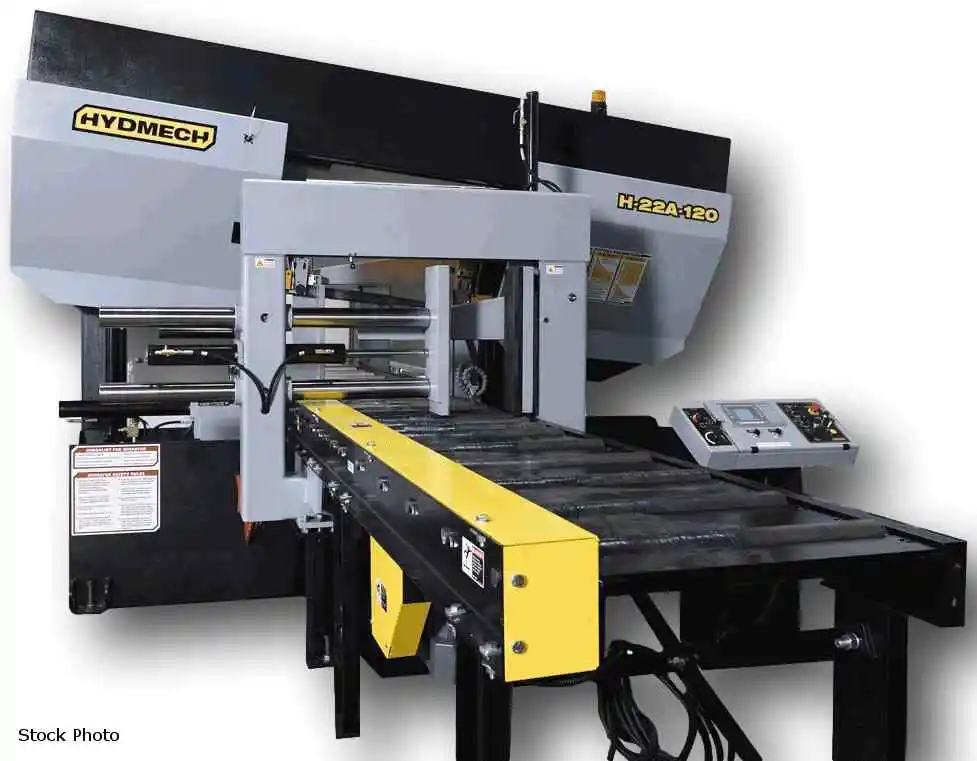

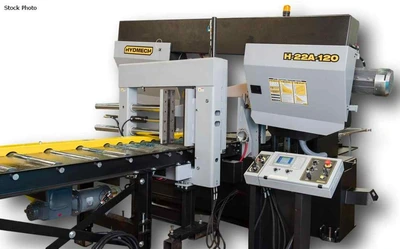

HYDMECH (NEW) MODEL H-22A-120 AUTOMATIC DUAL
POST HORIZONTAL BANDSAW

CAPACITY @ 90 DEGREES
- 22" X 22" RECTANGULAR
- 22" SQUARE
- 22" ROUND (DIAMETER)

CAPACITY WITH 90 DEGREE CANTED HEAD
- 20" X 22" RECTANGULAR
- 20" SQUARE
- 20" ROUND (DIAMETER)

2" X 22' 6" BLADE
10 HP BLADE DRIVE
480 VOLTS, 3 PHASE
40 - 300 SFM BLADE SPEED
0-120" AUTOMATIC MULTI-INDEXING
9.5 GALLON HYDRAULIC TANK CAPACITY
30 GALLON COOLANT TANK CAPACITY
35" TABLE HEIGHT (35" WITH CANTED HEAD)

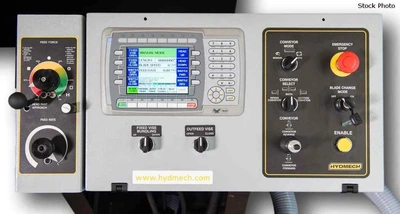

7" MITSUBISHI FX3U PLC COLOR TOUCH SCREEN CONTROL
- PROGRAM UP TO 999 JOBS WITH 10 IN QUEUE
- USER-FRIENDLY, INTERACTIVE PROGRAMMING
- MACHINE DIAGNOSTICS ON DISPLAY SCREEN
- SIMPLE SOFTWARE UPDATES

STANDARD MACHINE FEATURES
- 6 DEGREE CANTED HEAD
- SPLIT FRONT VISE
- FULL CAPACITY HYDRAULIC OVERHEAD BUNDLING
- 10' BAR FEED
- SHUTTLE WITH AUTO MULT-INDEXING UP TO 120
DEGREES IN A SINGLE STROKE
- AUTOMATIC KERF COMPENSATION
- RACK AND PINION SERVO DRIVE
- STEEL GUIDE ARMS
- IDLER SIDE GUIDE ARM MECHANICALLY CONNECTED
TO FRONT VISE MOVEABLE JAW
- HYDRAULIC POSITIVE DOWN FEED
- BLADE CHAMBER SEPARATES MATERIAL CUT PART
- FULL-CAPACITY, FULL-STROKING HYDRAULIC VISES
- HIGH RESOLUTION FEED RATE VALVE
- CAST IRON BAND WHEELS
- REPLACEABLE BLADE BRUSH
- ROBUST STEEL BASE
- AUTOMATIC CHIP REMOVAL AUGER
- EASY-ACCESS ELECTRICAL PANEL HYDRAULICS
- BLADE BREAKAGE SWITCH
- HYDRAULIC BAND TENSIONING WITH DRO
- HYDRAULIC CARBIDE GUIDE TENSIONING
- HARDENED, REPLACEABLE WEAR PLATES
- SAFETY DOOR INTERLOCKS
- FLOOD COOLANT WITH WASH-DOWN HOSE
- WORK LIGHT
- LASER LIGHT
- OUT-OF-STOCK SWITCH
- VARIABLE VISE PRESSURE

OPTIONS AVAILABLE - PRICE ON REQUEST
- BLADE DEVIATION MONITOR
- VERTICAL ALIGNMENT ROLLERS
- REMOTE CONSOLE WITH 10' CORD
- MIST LUBRICATION SYSTEM
- OUTBOARD VISE
- ROLLER DISCHARGE TABLE
- IDLER CONVEYORS
- POWERED CONVEYORS
- POWER TRANSFORMER FOR 208 OR 240 VOLTS

- THIS SAW REQUIRES AIR RIDE TRAILER FOR TRANSPORT
Power: 480 (3-Phase)
