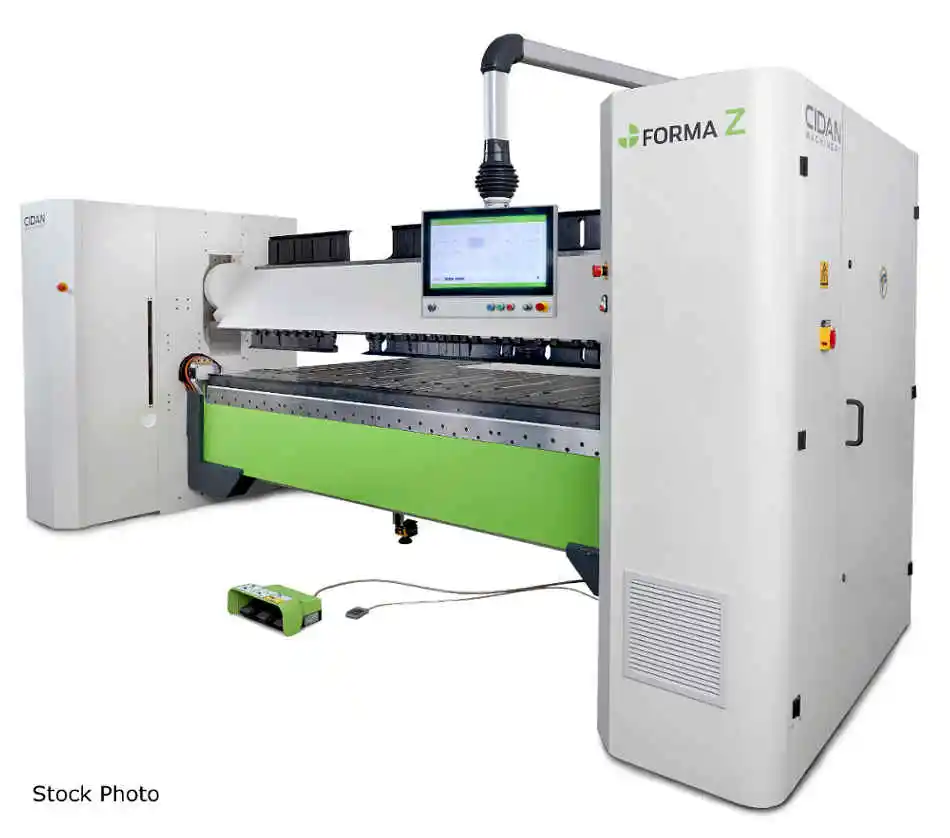

NEW CIDAN FORMA Z 30

CIDAN (NEW) MODEL FORMA Z 30 POWER METAL FOLDER

126" FOLDING LENGTH
CAPACITY
- 11 GAUGE MILD STEEL
- 14 GAUGE STAINLESS STEEL
- 0.177" ALUMINUM
8.3" OPEN HEIGHT
(2) 5.4 HP FOLDING BEAM MOTORS
(2) 1.5 HP CLAMPING BEAM MOTORS

FEATURES
- FOLDS UP AND DOWN (NO NEED TO FLIP MATERIAL)
- CNC CONTROLLED CROWNING OF FOLDING BEAM
- PROLINK W 21.5" WIDESCREEN CONTROL
- CNC CONTROLLED SHEET THICKNESS FOLDING CENTER
- FOLDING BEAM WITH SEGMENTED TOOLS
0.3", 0.47", 0.6" OR 0.98"
- LASER SCANNER ON FOLDING BEAM SIDE
- LIGHT CURTAIN ON BOTH FOLDING AND GAUGING SIDES
- AUTO LOCK OF HIGH DIVIDED FOLDING BEAM TOOLS
- AUTOMATIC LUBRICATION

OPTIONS AVAILABLE - PRICE ON REQUEST
- MOTORIZED BACK GAUGE
- INTEGRATED TOOL STORAGE
- DIVIDED STRAIGHT RAIL
- LOWER BEAM TOOLING DIVIDED FOR MULTIFOLD
- DIVIDED FOLDING BEAM TOOL
- OFF-LINE SOFTWARE FOR PROLINK W
- AUXILIARY OUTPUTS
- ROBOT INTERFACE
- EXTRA FOOT PEDAL FOR FOLDING SIDE OPERATION
- MOVABLE FOOT PEDAL ON RAIL
- TOOL CART
- VACUUM GRIPPER IN THE BACK GAUGE
