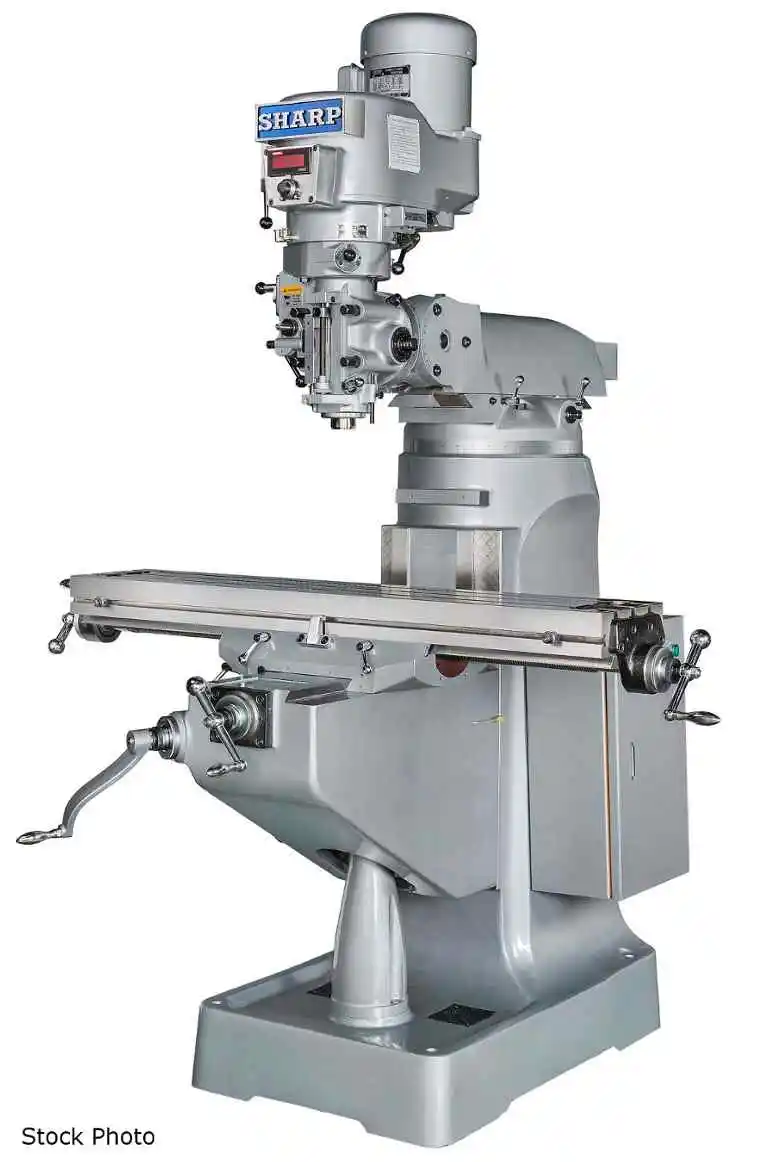

NEW SHARP LMV-49-DVS

SHARP (NEW) MODEL LMV-49-DVS VERTICAL MILL
WITH 3-AXES TEACH-IN FAGOR TURNKEY CNC CONTROL

CAPACITY
- 36.6" X, 12" Y AND 5" Z TRAVEL
- 12" RAM TRAVEL
- 16" KNEE TRAVEL
- 6-3/4" TO 18-1/2" SPINDLE TO COLUMN
- 2-1/8" TO 18" SPINDLE NOSE TO TABLE

TABLE
- 9" X 49" WORKING SURFACE
- (3) 5/8" T-SLOTS

SPINDLE
- 3 HP, 220 VOLTS, 3 PHASE
- R-8 NOSE TAPER

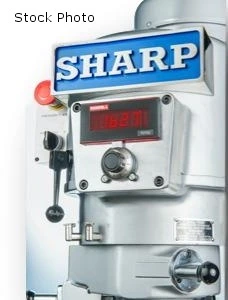

- 65-4500 RPM DIGITAL VARIABLE SPEED DRIVE (DVS)
- 0.0015, 0.003, 0.006 IPR QUILL FEED
- 360 DEGREE HEAD SWIVEL
- 45 DEGREE HEAD TILT (LEFT TO RIGHT)
- 45 DEGREE HEAD TILT (UP AND DOWN)

FEATURES
- MEEHANITE CASTING
- (2) ABEC-7 SUPER PRECISION SPINDLE BEARINGS
- HARD-CHROMED WAYS AND GIBS
- PRECISION GROUND AND FLAKED TABLE
- UNIQUE DOUBLE NUT BACKLASH SYSTEM
- CUTLER HAMMER ON/OFF SWITCH
- FRONT AND REAR WAY COVERS
- ONE-SHOT LUBE SYSTEM (X, Y, Z AXES)
- TOOL KIT
- ISO 9002 CERTIFIED
- (2) HIGH OUT-PUT FANS
- DYNAMICALLY BALANCED AND CHROMED
MOTOR SHAFT
VARIDRIVE PULLEYS
- MOTOR SHAFT OIL CHANNEL FED BY GREASE FITTING
- ROLLER BEARING FOR LOWER SUPPORT OF THE SHAFT
- HAND-SCRAPED SADDLE AND KNEE
- MILLED OIL GROOVE
- TABLE AND SADDLE
BACKLASH CONTROLLED BY DOUBLE NUT DESIGN
MOUNTED WITH PRE-LOADED THRUST BEARINGS

OPTIONS AVAILABLE - PRICE ON REQUEST
- 440 VOLTS (REQUIRES TRANSFORMER)
- AUTO LUBE PUMP
- POWER TABLE WITH SAFETY HANDLE INSTALLATION
X AXIS - TABLE
Y AXIS - CROSS
Z AXIS - KNEE
- 6" KURT VISE WITH SWIVEL BASE
- RIGHT ANGLE MILLING ATTACHMENT WITH ARBOR
- DRILL CHUCK AND ARBOR
- 6" RISER BLOCKS INSTALLATION
- COOLANT SYSTEM WITH CHIP PAN AT BASE
- MAXI-TORQUE RITE POWER DRAWBAR
- R-8 COLLECT SET OF 11 (1/8" - 3/4" BY 1/16")
- CLAMPING KIT (52 PIECE/STEEL RACK)
- HALOGEN WORK LIGHT
- UPGRADE X/Y AXIS W/BALL SCREW (FACTORY ORDER)
- DIGITAL READOUT SYSTEMS AND INSTALLATION
FAGOR
ACU-RITE
NEWALL
Power: 220 (3-Phase)
