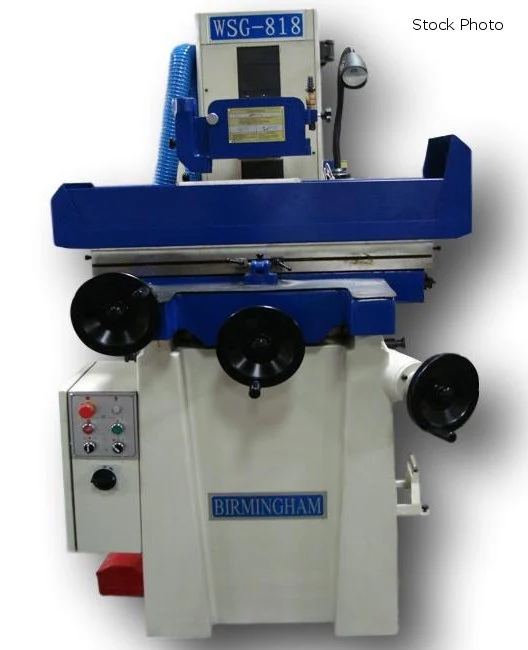

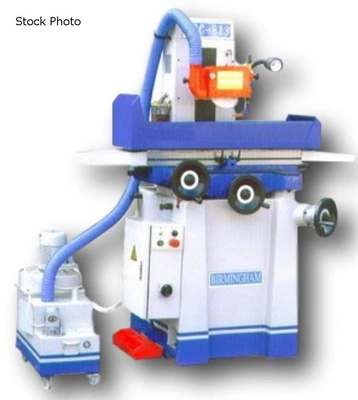

NEW BIRMINGHAM WSG-818

BIRMINGHAM (NEW) MODEL WSG-818 PRECISION MANUAL
SURFACE GRINDER

8" X 18" TABLE SIZE
19-3/4" GRINDING LENGTH (MAXIMUM)
8-1/4" GRINDING WIDTH (MAXIMUM)
19-3/4" FROM SPINDLE CENTER TO TABLE (MAXIMUM)
21-5/8" LONGITUDINAL TRAVEL (MAXIMUM)
9" MAXIMUM CROSS TRAVEL
3-15/16" LONGITUDINAL TRAVEL PER REVOLUTION
0.2" CROSS TRAVEL PER REVOLUTION
0.0008" CROSS TRAVEL PER GRADUATION
0.05" VERTICAL TRAVEL PER REVOLUTION
0.00025" VERTICAL TRAVEL PER GRADUATION
110 FEET/SECOND PERIPHERAL WHEEL SPEED
3,600 RPM SPINDLE SPEED
8" X 1/2" X 1-1/4" GRINDING WHEEL

2 HP SPINDLE MOTOR
1/2 HP DUST COLLECTOR
0.05 HP COOLANT PUMP
0.02 HP LUBRICATING PUMP

STANDARD EQUIPMENT
- GRINDING WHEEL
- GRINDING WHEEL FLANGE
- WHEEL BALANCE ARBOR
- DIAMOND WHEEL DRESSER
- WORK LIGHT
- TOOL BOX
- HOISTING SET
- LEVELING PADS
- COOLANT/DUST SYSTEM
- STANDARD PERMANENT MAGNET CHUCK

FEATURES
- 2 HP WHEEL SPINDLE MOTOR
- FINE GRADUATION ON TRAVELS
- HIGH PRECISION CARTRIDGE WHEEL SPINDLE
- HIGH PRECISION AND SMOOTH ROLLER WAY TABLE
- AUTO LUBRICATION ON LEADSCREWS AND WAYS
- FINE GRAIN HIGH TENSILE CASTING CONSTRUCTION

OPTION AVAILABLE - PRICE ON REQUEST
- FINELINE MAGNET CHUCK
- ELECTRICAL MAGNET CHUCK WITH DEMAGNET SYSTEM
