NEW SHARP 1860L

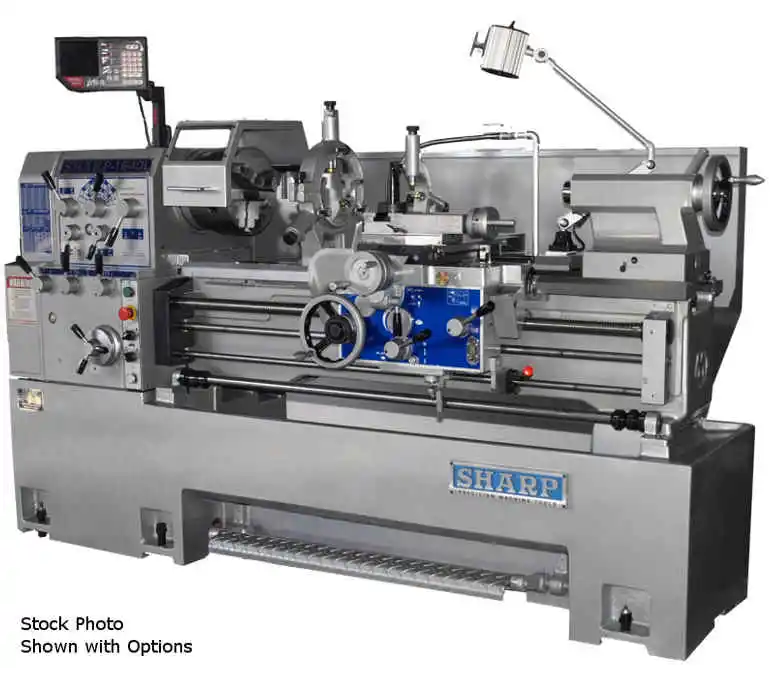

SHARP (NEW) MODEL 1860L PRECISION GEAR HEAD LATHE

CAPACITY
- 18-1/2" SWING OVER BED
- 11" SWING OVER CROSS SLIDE
- 9-1/4" CENTER HEIGHT
- 27-1/8" SWING OVER GAP
- 11.8" GAP WIDTH
- 1.9" CENTER HEIGHT FROM TOP OF COMPOUND
- 60" BETWEEN CENTERS

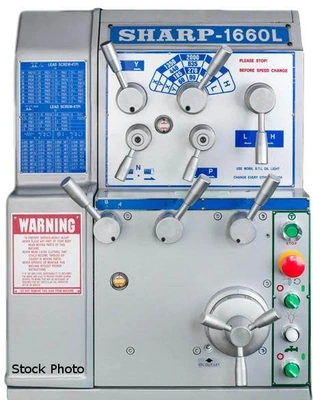

HEADSTOCK

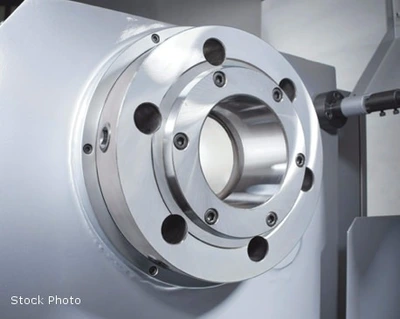

- D1-8 CAMLOCK SPINDLE NOSE
- 3-1/16" SPINDLE BORE
- 12 SPINDLE SPEEDS 40 - 2,000 RPM
- MT #6 SPINDLE BORE TAPER
- MT #5 CENTER TAPER
THREADS AND FEEDS
- 18 LONGITUDINAL FEEDS 0.002"-0.032" IPR
- 12 CROSS FEEDS 0.0001"-0.0094" IPR
- 36 INCH THREAD OPTIONS 4-56 TPI
- 17 METRIC MODULE THREAD OPTIONS 0.5-7 MM
- 36 DP THREAD OPTIONS 4-56 MM
- 4 TPI LEADSCREW PITCH, 1-3/8" DIAMETER
CARRIAGE
- 9-7/8" CROSS SLIDE TRAVEL
- 5.3" COMPOUND REST TRAVEL
- 5.0" COMPOUND WIDTH
BED
- 79" L X 11-3/4" W
TAILSTOCK
- 5-1/2" QUILL TRAVEL (GRADUATED)
- 2-11/16" QUILL DIAMETER
- MT #4 QUILL TAPER
7.5 HP, 220 OR 440 VOLTS, 3 PHASE

STANDARD EQUIPMENT
- 10" 3-JAW CHUCK
- 16" FACE PLATE

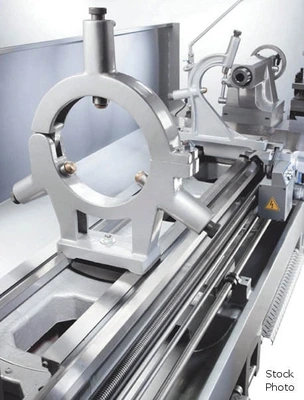

- 1/2" - 6" STEADY REST
- 0.59" - 3.15" FOLLOW REST
- COOLANT SYSTEM
- FULL LENGTH SPLASH GUARD
- AMERICAN TOOL POST
- HALOGEN WORK LIGHT
- LONGITUDINAL CARRIAGE STOPS
- 2 SETS OF DEAD CENTERS
- TAIL STOCK AND TOOL KIT

FEATURES
- DIRECT SELECTION FOR INCH/METRIC THREADS
- 1-PIECE CAST MEEHANITE BED

OPTIONS AVAILABLE - PRICE ON REQUEST
- 575 VOLTS
- 3-JAW CHUCKS - 10" AND 12"
- 4-JAW CHUCKS - 12"
- CHUCK GUARD
- TOOL GUARD
- LEAD SCREW GUARD
- GUARD BEHIND SPINDLE
- UL/CSA SWITCH BOARD/UL MOTOR/CSA PUMP
- MICROMETER CARRIAGE STOP
- 4-WAY TOOL POSTS
- 7-PIECE QUICK-CHANGE TOOL HOLDER SET
- TAPER ATTACHMENT
- ROLLER JAWS FOR STEADY REST
- ADDITIONAL STEADY RESTS
- DRILL AND ARBOR
- LIVE CENTERS
- 5C COLLET CLOSER COLLET SET
- 10 HP MOTOR (IN LIEU OF 7.5 HP)

3-AXIS DIGITAL READ OUT SYSTEMS
- FAGOR 20I OR 40I
- ACU-RITE 203S
- NEWALL DP700
Power: 220/440 (3-Phase)
