NEW CIDAN RAPIDO 32

CIDAN (NEW) MODEL RAPIDO 32 SQUARING SHEAR

126" CUTTING LENGTH
13 GAUGE MILD STEEL
0.157" ALUMINUM
16 GAUGE STAINLESS STEEL
37 CUTS PER MINUTE
(2) 15" SQUARING ARMS
LED CUTTING LIGHT
4 HP MOTOR

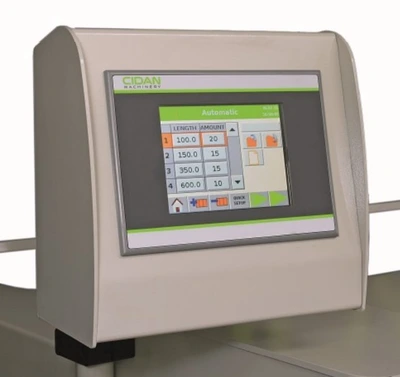

CNC CUTLINK BACK GAUGE
- POSITIONS CUT FROM 0-29.5" IN 4 SECONDS
- SAVES UP TO 50 PROGRAMS
- 99 DIMENSIONS AND 999 CUTS PER PROGRAM
- BUTTON FOR METRIC OR INCHES

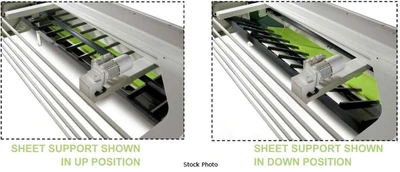

REAR SHEET SUPPORT
- PNEUMATICALLY OPERATED FOR MAXIMUM CONTROL
- CAN ADJUST SPEED BASED ON MATERIAL TYPE
- DROPS MATERIAL TO A RETURN PLATE AT FRONT

FRONT SHEET SUPPORT
- 4' X 10' SHEET ONLY REQUIRES 1 OPERATOR
- EXTENSIONAL AND RETRACTABLE ARM
- MOVES IN AND OUT TELESCOPICALLY

SPRING-LOADED HOLD DOWN
- ALLOWS MATERIAL 1.75" FROM SHEAR EDGE
- PROVIDES FINGER PROTECTION

FEATURES
- HEAVY-DUTY MECHANICAL SHEAR
- FAST, ACCURATE REPEATABILITY
- USES LITTLE ENERGY
- LOW NOISE LEVEL
- 2 YEAR WARRANTY

OPTIONS AVAILABLE - PRICE ON REQUEST

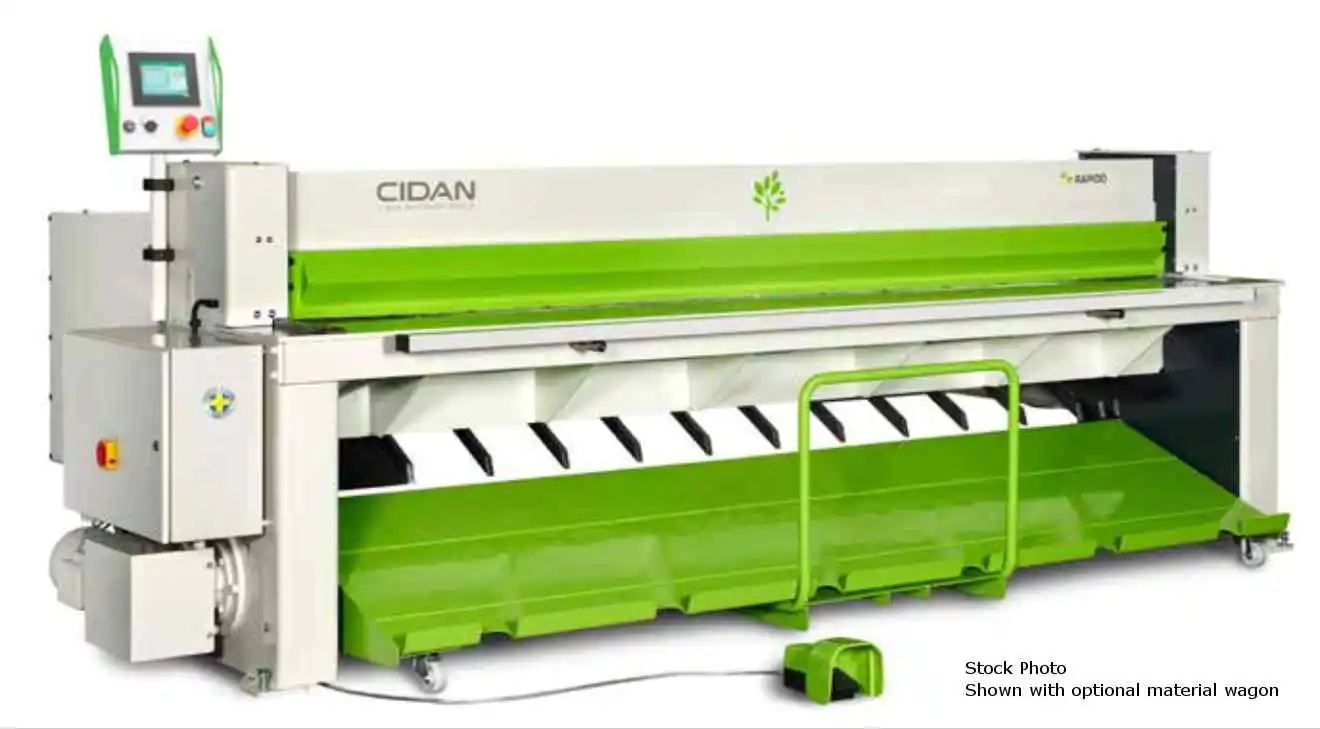

- MATERIAL WAGON
- 39.4" BACKGAUGE (IN LIEU OF 29.5" BACKGAUGE)
- 39.4" SQUARING ARM
- 39.4" SQUARING ARM WITH T-GROOVE ARM AND
TILTING STOP
- 98.4" SQUARING ARM WITH T-GROOVE ARM, TILTING
STOP AND SUPPORT LEG
- PROTRACTOR SQUARING ARM
- PNEUMATIC HOLD DOWN
- EXTRA SET OF SHEAR BLADES
- INSTALLATION AND TRAINING
- EXTENDED WARRANTY
