NEW DURMA PBF 2560

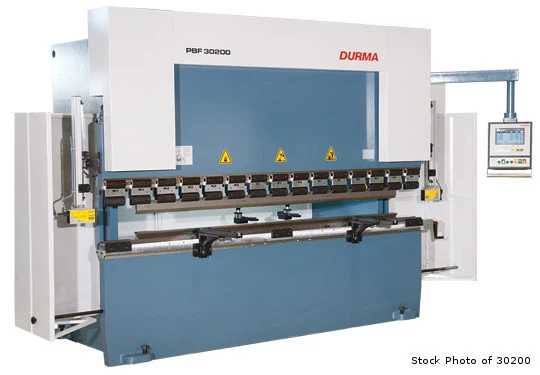

DURMA (NEW) MODEL PBF 2560 CNC PRESS BRAKE

66 US TONS
8' 4" BENDING LENGTH
7' BETWEEN HOUSINGS
32" TABLE HEIGHT
4.1" TABLE WIDTH
6.3" STROKE
13.78" DAYLIGHT
9.84" THROAT DEPTH
284"/MINUTE Y-AXIS RAPID SPEED
24"/MINUTE Y-AXIS WORKING SPEED
165"/MINUTE Y-AXIS RETURN SPEED
600"/MINUTE BACK GAUGE (X-AXIS) WORKING SPEED
.0004" Y-AXIS PRECISION
24" BACK GAUGE (X-AXIS) WORKING DISTANCE
7.5 HP MOTOR

DT 15 CNC CONTROL
- 2D GRAPHICAL TOUCH SCREEN PROGRAMMING MODE
- USB PERIPHERAL INTERFACING
- SENSOR BENDING AND CORRECTION INTERFACE

STANDARD FEATURES
- Y1, Y2 X-AXIS (MANUAL R-AXIS)

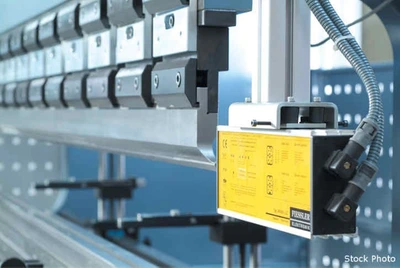

- FIESSLER LASER FINGER SAFETY - MANUAL HT ADJUST

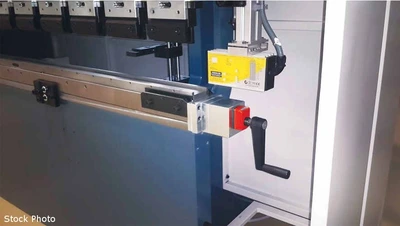

- MOTORIZED BALL SCREW BACK GAUGE SYSTEM SUPPORTED
WITH LINEAR GUIDES (POWERED X-AXIS)
- UNIVERSAL WEDGE-STYLE PUNCH CLAMP
(FOR AMERICAN AND EUROPEAN STYLE PUNCHES)
- PRECISION GROUND PUNCH/4-WAY DIE
TOP TOOL - ROLLERI P97.75.R08
BOTTOM TOOL - ROLLERI M.460R.85
- 2 SUPPORT ARMS WITH T-SLOT
- BACK GAUGE FINGER BLOCKS - MANUAL HT ADJUST
- MANUAL WEDGE-TYPE CROWNING

OPTIONS AVAILABLE - PRICE ON REQUEST
- CNC DT 15 CONTROLLER
- 2-AXIS BACK GAUGE PACKAGE
POWERED X AXIS (25.59") AND R AXIS (9.84")
- CNC CONTROLLED MOTORIZED CROWNING
- TOP TOOL EUROPEAN P135.75.R08
- BOTTOM TOOL EUROPEAN - SINGLE V=3.93"
- BOTTOM TOOL DURMA MULTI V
- QUICK-RELEASE CLAMPING
- ADDITIONAL FINGER BLOCKS
- ADDITIONAL SUPPORT ARMS WITH T-SLOT
- OIL COOLANT

HYDRAULIC OIL REQUIRED
Power: 208/220/440 (3-Phase)
