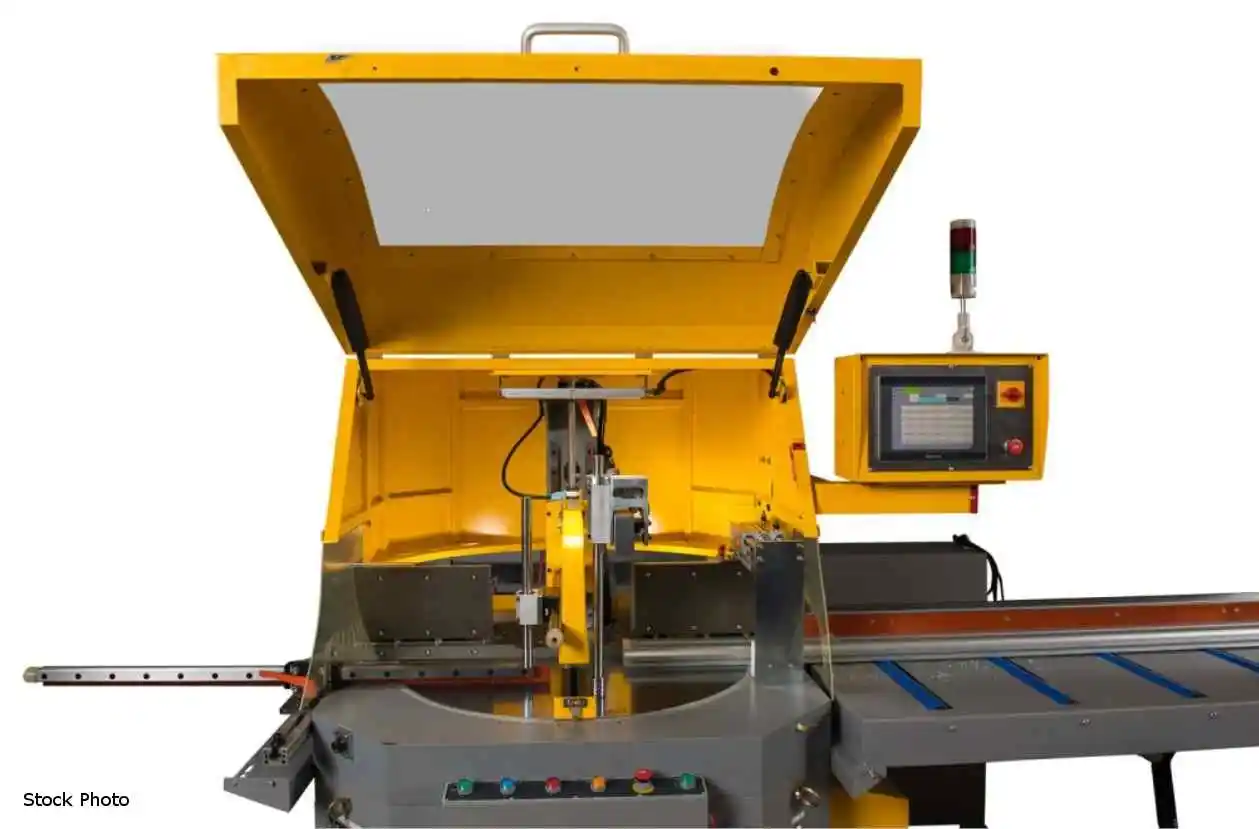

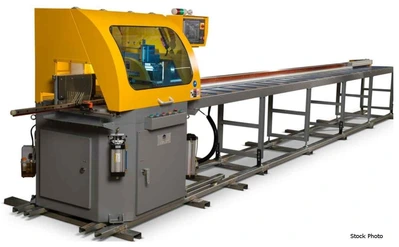

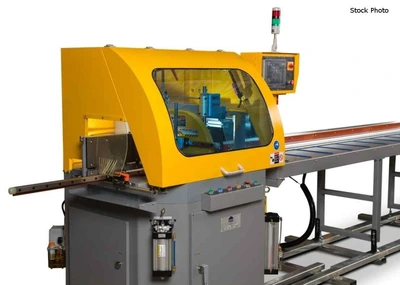

NEW PAT MOONEY PMI-20 24

PAT MOONEY (NEW) MODEL PMI-20 24 CNC FULLY
AUTOMATIC MITER UPCUT COLD SAW

FULLY AUTOMATIC SAW
- ENTER ANGLE(S), LENGTH, # OF PIECES START

24" X 1" BORE SAW BLADE
7.87" SAWING HEIGHT
14.6" SAWING WIDTH
2000 RPM SPINDLE SPEED
7.5 HP SAW MOTOR
1/2 HP MITER SERVOMOTOR
1/2 HP FEED SYSTEM SERVOMOTOR
8' TO 21.5' AUTOMATIC FEED LENGTH
36-1/2" WORK TABLE HEIGHT

CUTTING CAPACITY AT 90 DEGREES
- 7.873" ROUND OR SQUARE
- 6.613" X 9.448" RECTANGLE
- 7.873" X 5.668" RECTANGLE
- 0.471" X 15.825" RECTANGLE

CUTTING CAPACITY AT 45 DEGREES
- 6.613" ROUND OR SQUARE
- 7.873" X 4.251" RECTANGLE
- 0.471" X 11.337" RECTANGLE

FEATURES
- ZERO WASTE FUNCTION (SYMMETRICAL PROFILES)
- SERVO-DRIVEN AUTO MITER FUNCTION
- AIR OVER OIL FEED SYSTEM
- VERTICAL AND HORIZONTAL CLAMPING
- PNEUMATIC CLAMPING SYSTEM
- 5.7" OPERATOR-FRIENDLY HMI TOUCH SCREEN
- STORAGE FOR 100 CUTOFF PROGRAMS
- SERVO-DRIVEN MATERIAL FEED SYSTEM
CAN PUSH UP TO 110 POUNDS
65 TO 165 FPM POSITIONING SPEED
- UPCUT DESIGN - BLADE HOUSED UNDER WORK TABLE
- PRECISION GROUND WORK TABLE WITH CHROMATE
COATING PREVENTS MARRING OF WORK PIECES
- SAW BLADE FEED CONTROLLED VIA PNEUMATIC
CYLINDER
- PRECISE MICRO-DRIP BLADE LUBRICATION SYSTEM
- 10' SOLID TOP OUTFEED TABLE W/PLASTIC ROLLERS
- TOOL KIT
- KANEFUSA SAW BLADE - 120T
- OPERATING MANUAL

SAFETY FEATURES
- MACHINE ENCLOSURE MONITORED BY A LIMIT SWITCH
- 2-HAND CYCLE START ACTIVATION
- MACHINE SHUTS DOWN IF DOOR IS OPEN
