NEW NS MAQUINAS DM1600 C

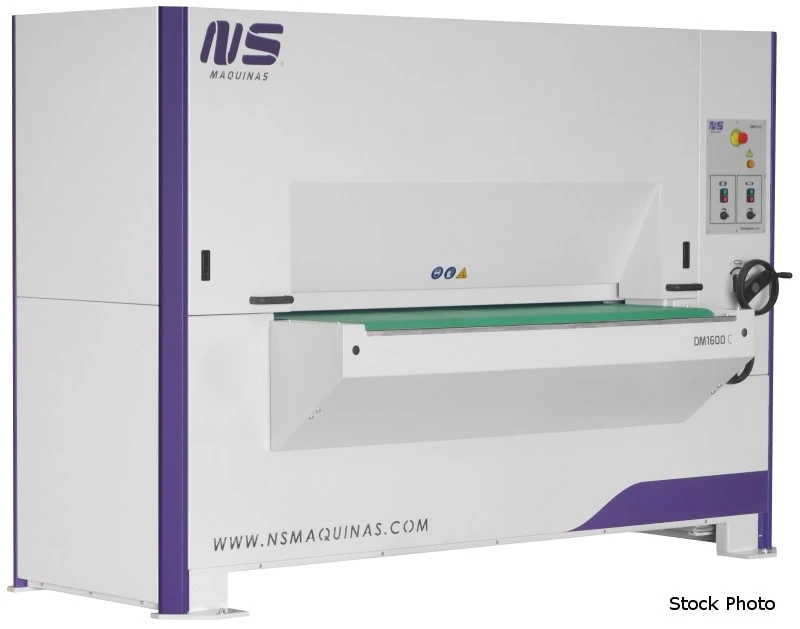

NS MAQUINAS (NEW) MODEL DM 1600 C CROSSBELT
DEBURRING MACHINE

63" X 2" WORKING CAPACITY
1 HP CONVEYOR MOTOR
(2) 5 HP CROSS SANDING BELT MOTORS
19.5"-165"/MIN VARIABLE FEED RATE
2" X 126" BELT DIMENSIONS

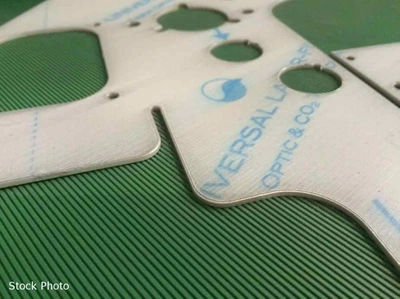

DEBURRS INSIDE AND OUTSIDE CONTOURS OF
STAINLESS STEEL, STEEL AND ALUMINUM PARTS CUT
BY LASER, PUNCHING OR SHEARING

CAN REMOVE SHARP EDGES FROM PARTS AS SMALL AS
2" X 2"

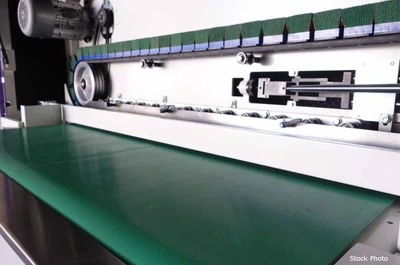

DOUBLE CROSS BELT HEAD PERFORMS EDGE ROUNDING,
LEAVING SOFT AND CLEAN EDGES ON THE ENTIRE METAL
SURFACE

INCLUDED WITH BASE MACHINE:
- ONE SET OF BELTS COMPLETE WITH SANDING BLOCKS
CERAMIC 60P GRIT
- FREQUENCY INVERTER
- CONVEYOR BELT CLEANING BRUSH SYSTEM
MOTOR DRIVEN
- ON-SITE TRAINING
(TRAVEL EXP. BILLED SEPERATELY)

OPTIONS AVAILABLE - PRICE ON REQUEST
- 2 REPLACEMENT SANDING BELTS
WITH 40 60 GRIT SANDING BLOCKS
- REPLACEMENT SANDING BLOCKS - 40 AND 60 GRIT
WITHOUT BELTS

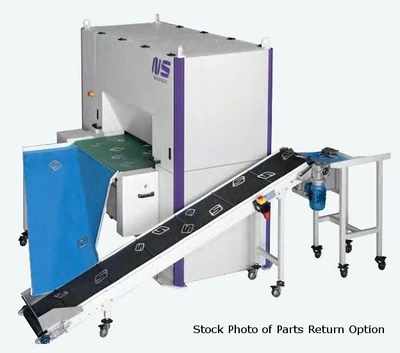

- RETURN CONVEYOR FOR SMALL PARTS
- DUST COLLECTOR - MODEL C5-2500 CFM
NFPA COMPLIANT
Power: 480 (3-Phase)
