NEW ELLIS 2000

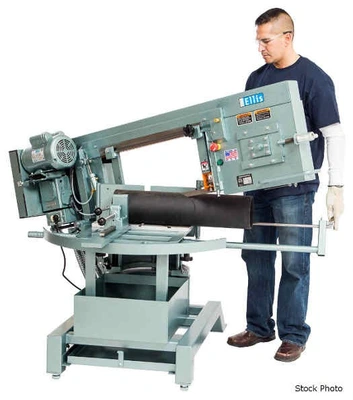

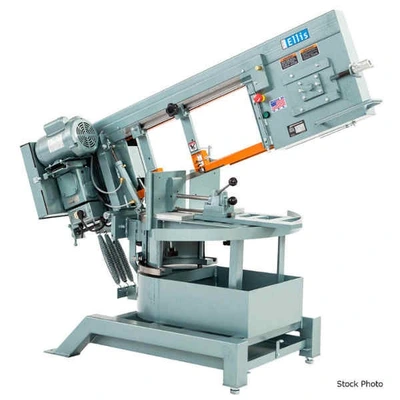

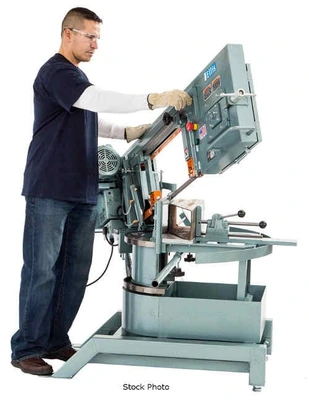

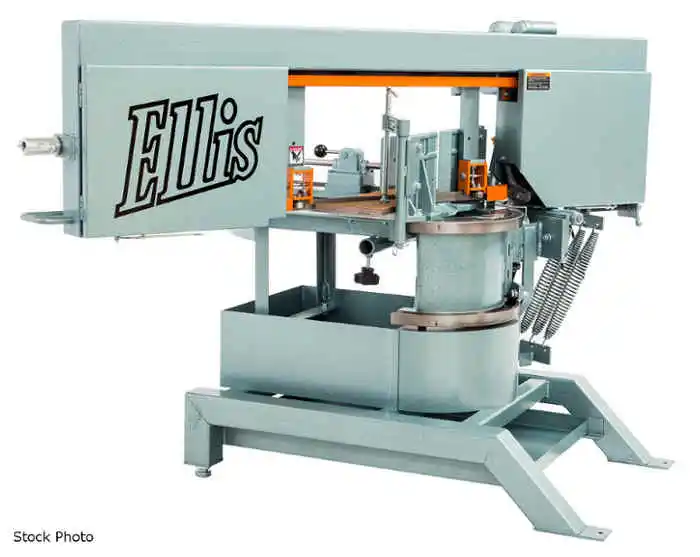

ELLIS (NEW) MODEL 2000 MITRE BAND SAW

CAPACITY AT 90 DEGREES
- 11" ROUND
- 10" PIPE
- 17" FLAT
- 11" H X 13" W

CAPACITY AT 45 DEGREES
- 11" ROUND
- 10" PIPE
- 11" FLAT
- 9" H X 11" W

CAPACITY AT 60 DEGREES
- 6" W X 9" H
- 6" SQUARE
- 7" WIDE X 2" THICK - FLAT STOCK
- 6" PIPE (6-7/8" OD)

60-115-230 FPM BLADE SPEEDS
12' X 1" BLADE
HYDRAULIC ADJUSTING FEED CONTROL
QUICK ADJUSTING CAMLOCK VISE
AUTOMATIC SHUT OFF
28-1/8" TABLE HEIGHT
SEALED OIL BATH WORM GEAR
REMOVABLE CHIP TRAY
HEAVY STEEL CONSTRUCTION
WELDED MACHINED FOR ACCURACY DURABILITY
BAND SAW HEAD MOVES LEFT OR RIGHT FOR ANGLE CUTS

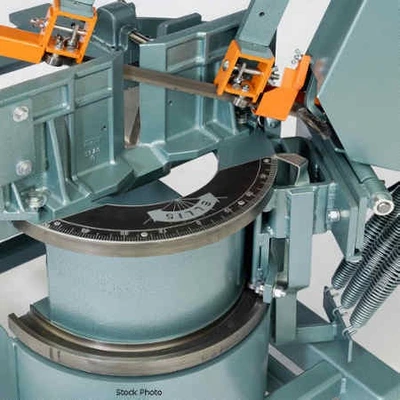

BUILT-IN PROTRACTOR FOR SELECTING ANGLES
STOCK REMAINS IN ONE POSITION FOR ALL CUTS
MITRES 60 DEGREES BOTH WAYS
1.5 HP MOTOR, 220 VOLT, SINGLE PHASE

OPTIONAL ACCESSORIES - PRICE ON REQUEST
- 3 PHASE MOTOR
- 220-440-460-480-575 VOLTS
- AIR SYSTEM
- STOCK GAUGE WITH MICRO-ADJUSTER
- SINGLE STOCK STAND WITH 1 ROLLER
- 5' X 20" STOCK STAND WITH 4 ROLLERS
- SCREW TYPE VISE
- PIPE CLAMP ATTACHMENT FOR SCREW VISE
- PIPE CLAMP ATTACHMENT FOR CAMLOCK VISE
Power: 220 (Single)
