NEW ADVANCE LIFTS PEW-6060
Overview
Specifications
| Weight | 1,365 | 1,365 |
|---|

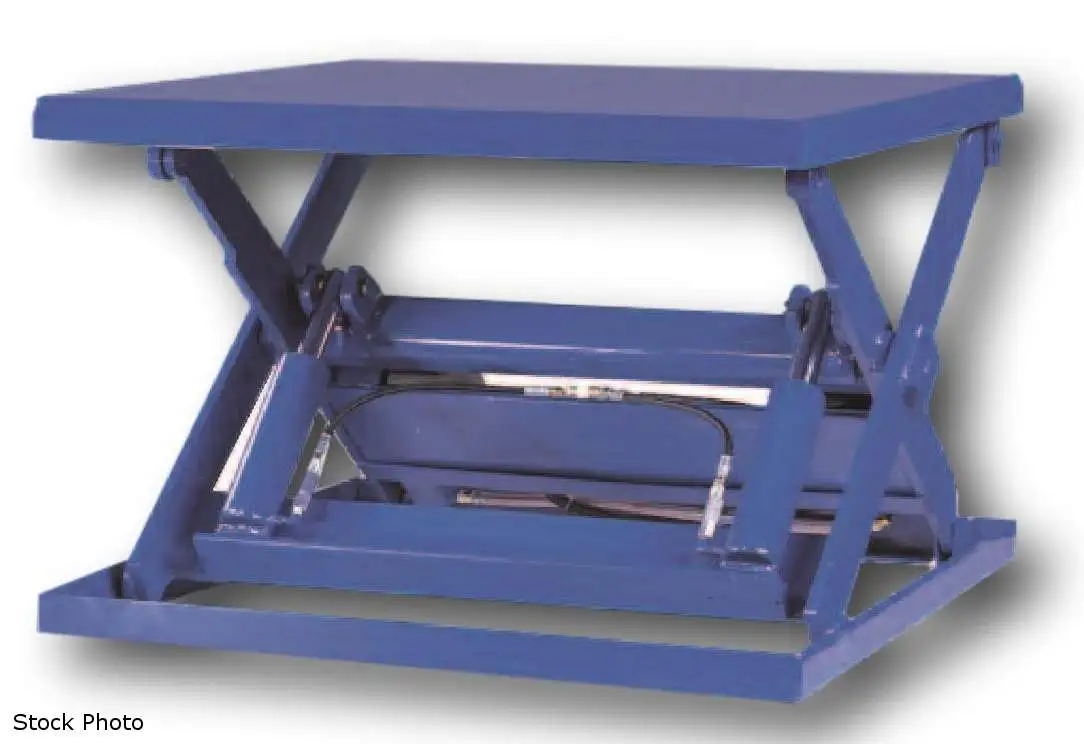

ADVANCE LIFTS (NEW) MODEL PEW-6060 EXTRA WIDE
SCISSORS LIFT
6,000 LBS LIFTING CAPACITY
60" TRAVEL
36" X 84" PLATFORM SIZE
5,700 LBS MAX END LOAD CAPACITY
4,400 LBS MAX SIDE LOAD CAPACITY
36" X 84" BASEFRAME
10" LOWERED HEIGHT
70" RAISED HEIGHT
57 SECONDS - APPROX. SPEED UP
2 HP INTERNAL MOTOR
ELECTRIC FOOT SWITCH
UPPER LIMIT SWITCH
STANDARD EQUIPMENT

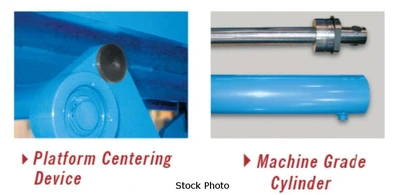

- PLATFORM CENTERING DEVICE
- UNDERWRITER LAB LISTED ASSEMBLY CONTROLLERS
- BAKED ENAMEL FINISH
- MACHINE GRADE CYLINDER
- CLEAR PLASTIC RETURN LINES

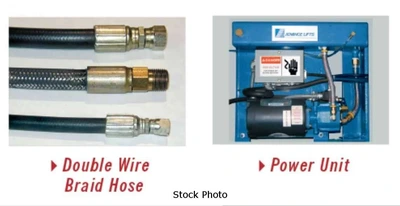

- DOUBLE WIRE BRAID PRESSURE HOSES W/JIC FITTINGS
- MILD STEEL RESERVOIRS
- CONFORM TO ALL APPLICABLE ANSI CODES
OPTIONS AVAILABLE - PRICE ON REQUEST
- WHEEL AND DOLLY SETS
- FORK POCKETS
- CASTER SETS
- BEVEL TOE GUARDS
- ELECTRIC TOE GUARDS
- FLANGED OR "V" GROOVE WHEEL SETS
- ACCORDION (BELLOW) SKIRTS
- POWERED DRIVE OPTIONS
- SLIP-REDUCING DECKS
- GUARD RAILS AND SAEFTY CHAINS
- "V" CRADLE DECKS
- CONVEYORS AND BALL TRANSFERS
- 60" X 120" OVERSIZED PLATFORM (MAX)
Power: 230 (3-Phase)
