| Dimensions | 372 X 30 X 72 | 372 X 30 X 72 |
| Weight | 1,300 | 1,300 |

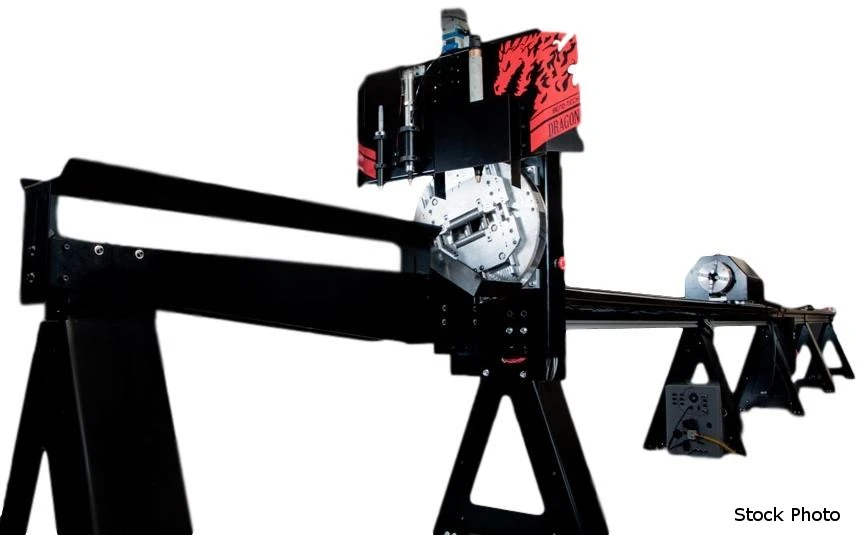

BEND-TECH (NEW) MODEL DRAGON A400 CAD/CAM/CNC TUBE/PIPE CUTTER
24' OF TRAVEL (UNLIMITED TRAVEL W/REPOSITIONING)
TUBE SIZE
- 0.5" TO 6" DIAMETER ROUND
- 0.5" TO 4" SQUARE
- 5.657" MAXIMUM HYPOTENUSE
CORNER TO OPPOSITE CORNER
IE 1" X 5.5", 2" X 5.25", 3" X 4.75"
400 LB MAXIMUM TUBE WEIGHT
41" WORKING HEIGHT
1,500 IPM RAPID TRAVEL SPEED
CUTTING SPEED VARIES BY MATERIAL CUTTING AMPS
EQUIPMENT INCLUDED
- MARKING SYSTEM WITH SHARPIE FINE TIPPED MARKER
- MATERIAL CENTER SUPPORT
- AIR ENGRAVER
- LASER POINTER
OPTIONS AVAILABLE - PRICE ON REQUEST

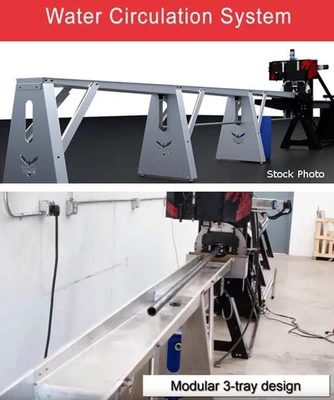

- COOLANT SUPPORT SYSTEM
- MATERIAL COOLING SYSTEM
- ANGLE/CHANNEL MOTORIZED GATE
- DRY END SUPPORT SYSTEM
- TEKLA AND SDS2 PLUG IN
- SOFTWARE STIE LICENSE
- ADDITIONAL SEAT

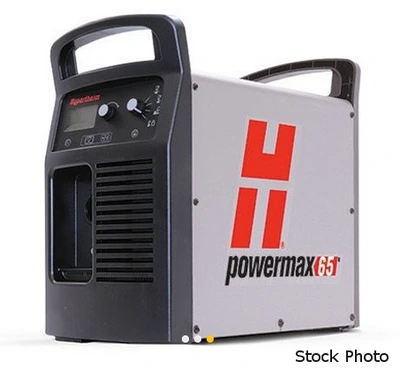

- HYPERTHERM POWERMAX 45
- HYPERTHERM POWERMAX SYNC 65
- HYPERTHERM POWERMAX SYNC 85
- ONSITE 2 DAY TRAINING
- IN-HOUSE 2 DAY TRAINING
