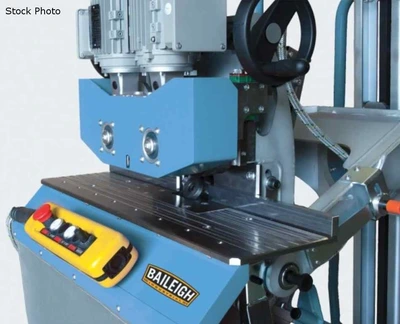

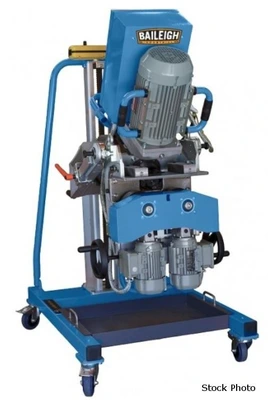

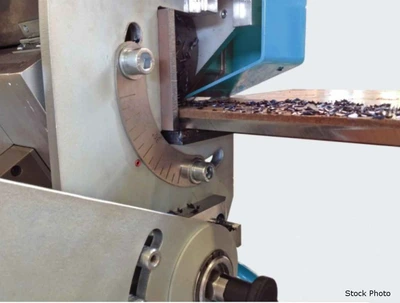

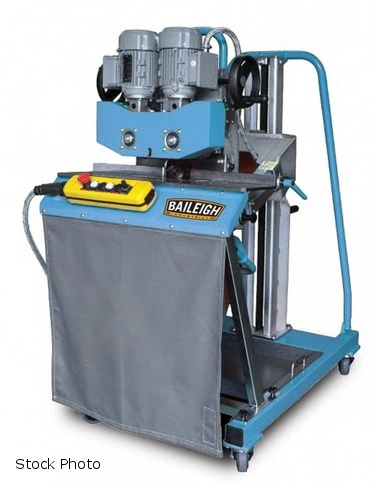

NEW BAILEIGH CM-50DS

BAILEIGH (NEW) MODEL CM-50DS DOUBLE-SIDED BEVELING
MACHINE

2.44" MAXIMUM BEVEL WIDTH AT 15 DEGREES
2" MAXIMUM BEVEL WIDTH AT 45 DEGREES
15 TO 60 DEGREE BEVEL ANGLE
0.275" TO 2.75" MATERIAL THICKNESS
7.8" X 3.93" X 2.75" MINIMUM MATERIAL SIZE
0 TO 3.9 FPM CUTTING SPEED
5.25 HP CUTTING MOTOR
0 TO 0.236" CHAMFER
15 TO 45 DEGREE CHAMFER ANGLE
220 VOLTS, 3 PHASE

USE FOR CHAMFERING AND/OR PREPARING TO WELD
- STEEL
- STAINLES STEEL
- ALUMINUM
- OTHER SHEARABLE MATERIAL

FEATURES
- EASILY ADJUSTS TO THE RIGHT HEIGHT AND
ORIENTATION
- INVERTER FOR ADJUSTMENT OF AUTOMATIC FEED SPEED
- INDUSTRIAL-GRADE GEAR REDUCTION SYSTEM
- HIGH-SPEED MILLING HEAD WITH RUGGED INSERTS
- DETACHABLE CONTROL WITH DIALS, START STOP
- FLOATING MANIPULATOR STAND AND TROLLEY
- LARGE WHEELS ON TROLLEY CARRIAGE
- LIFT HANDLE FOR RAISING TO DESIRED HEIGHT
- ELECTRICAL CIRCUITS ENCLOSED IN DUST-PROOF BOX
- ALL APPROPRIATE SAFETY FEATURES
- CONFORMS TO CE OR EUROPEAN REGULATIONS
- 1-YEAR WARRANTY AND LIFETIME TECHNICAL SUPPORT
Power: 220 (3-Phase)
