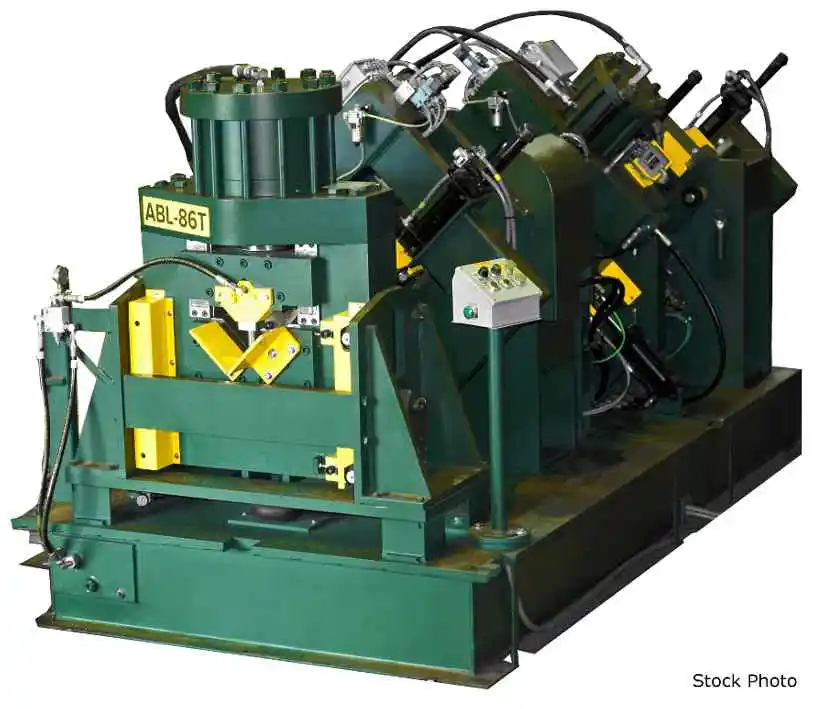

NEW CONTROLLED AUTOMATION ABL-86T

CONTROLLED AUTOMATION (NEW) MODEL ABL-86T
ANGLE AND FLAT BAR LINE

86 TON PUNCHING CAPACITY
MAXIMUM HOLE SIZE
- 1-1/2" IN 1/2" MATERIAL
- 1-1/4" IN 5/8" MATERIAL
250 TON SHEARING CAPACITY (SINGLE CUT)
6' TO 40' PROCESSING LENGTH
+/- 1/32" POSITIONING ACCURACY
0 TO 375 FPM POSITIONING SPEED
ANGLE SIZE
- 1-1/2" X 1-1/2" X 3/16" MINIMUM
- 6" X 6" X 5/8" MAXIMUM
FLAT BAR
- 1/4" X 1-1/2" MINIMUM
- 5/8" X 6" MAXIMUM
CHANNELS (WEB PUNCHING ONLY)
- 3" MINIMUM
- 6" MAXIMUM
AIR CONDITIONED WINDOWS XP CONTROLLER
EASILY NETWORKED

OPTIONS AVAILABLE - PRICE ON REQUEST
- PUNCHING 2 HOLE SIZES PER LEG
- SINGLE-WHEEL MEASURING SYSTEM
- DUAL PINCH WHEEL MEASURING SYSTEM
- PULLED X-PROBE MEASURING SYSTEM
- WELD/TACK STATION
- AUTOMATED PART MARKING
