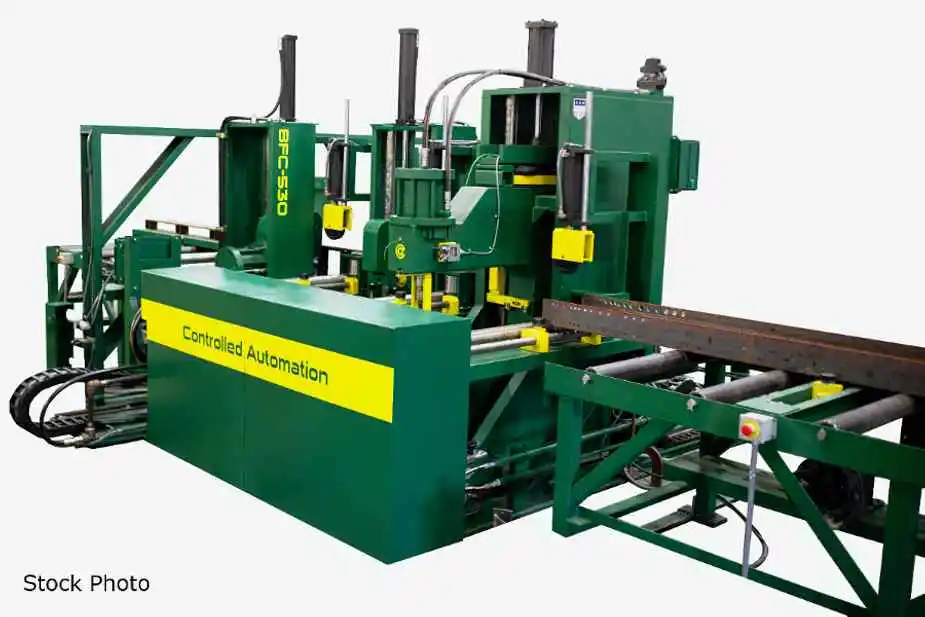

NEW CONTROLLED AUTOMATION BFC-530

CONTROLLED AUTOMATION (NEW) MODEL BFC-530 BEAM
PUNCHING LINE

36" MATERIAL WIDTH
300 LBS/FOOT MATERIAL WEIGHT
1-1/4" FLANGE THICKNESS FOR LAYOUT
1" FLANGE THICKNESS FOR PUNCHING

MINIMUM MATERIAL
- 4" BEAM (WEB ONLY)
- 4" CHANNEL (WEB ONLY)
- 4" ANGLE
- 6" BEAM (WEB AND FLANGES)

PUNCHES
- 1-5/8" MAXIMUM SLUG HOLE SIZE
- 115 TON FLANGE CAPACITY
- 115 TON WEB CAPCITY
- 30" WEB THROAT DEPTH

FEATURES
- 5 FRAMES TO PUNCH AND MARK ALL SIDES OF A BEAM
- POWERED HORIZONTAL AND VERTICAL PINCH ROLLS
- CTR SECTION ROLLS DRIVEN BY SHAFTS GEAR BOXES
- MATERIAL FLOWS LEFT TO RIGHT OR RIGHT TO LEFT
- +/- 1/32" POSITIONING ACCURACY
- 0 - 183 FPM POSITIONING SPEED
- AIR CONDITIONED WINDOWS XP CONTROLLER
- EASILY NETWORKED

OPTIONS AVAILABLE - PRICE ON REQUEST
- LAYOUT MARKING STENCIL CHARACTER PART MARKING
- FULLY AUTOMATIC SAW MITER SAW INTEGRATION
- PUNCH 2 HOLE SIZES PER FACE
- AUTOMATED MATERIAL HANDLING
