NEW CONTROLLED AUTOMATION DRL-348TC

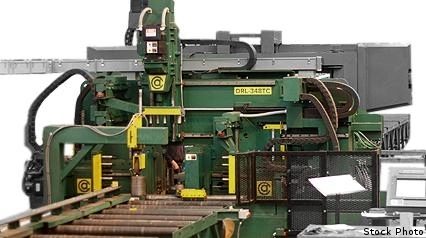

CONTROLLED AUTOMATION (NEW) MODEL DRL-348TC
3-SPINDLE DRILL LINE WITH AUTOMATIC TOOL CHANGER

48" MATERIAL WIDTH
18" MATERIAL HEIGHT
2-1/4" HOLE SIZE
CAT40 SPINDLE
100-2,400 RPM VARIABLE SPINDLE SPEED
1-40 IPM VARIABLE FEEDS
1,000 LB PER FOOT MATERIAL WEIGHT
20 HP

FEATURES
- LAYOUT MARKING AND STENCIL PART MARKING

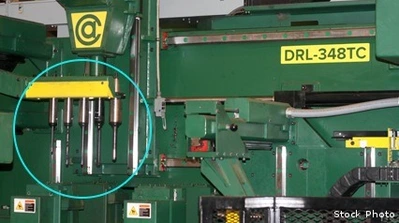

- 5 TOOLS PER SPINDLE
- THROUGH-SPINDLE MIST COOLANT
- PATENTED PRECISION MATERIAL MEASUREMENT

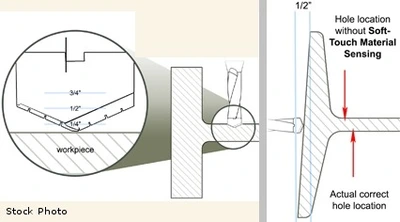

- SOFT-TOUCH MATERIAL SENSING
FOR SKEWED OR DISTORTED MATERIALS
MEASURES DEPTH AND BOW IN WORKPIECE WEB
MEASURES CENTER OF FLANGES
- OVERTHRUST PROTECTION TECHNOLOGY
- ALL BALL-SCREW DRIVEN FEED ON EACH AXIS

OPTIONS AVAILABLE - PRICE ON REQUEST
- PART MARKING
- TANDEM SAW OPERATION
- MATERIAL HANDLING
- STRAIGHT OR MITER CUTTING
- NON-AUTOMATIC TOOL CHANGER VERSION
