NEW SHARP LMV-49/DVS/MP-3

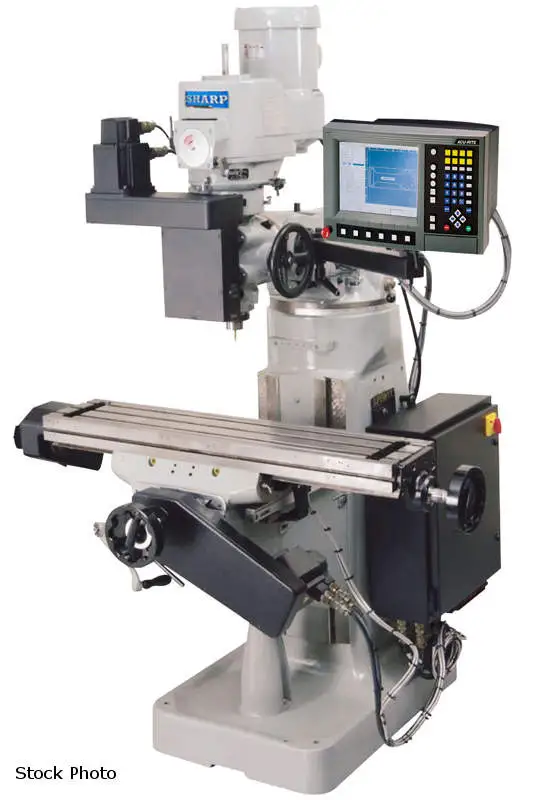

SHARP (NEW) MODEL LMV-49/DVS/MP-3 VERTICAL MILL

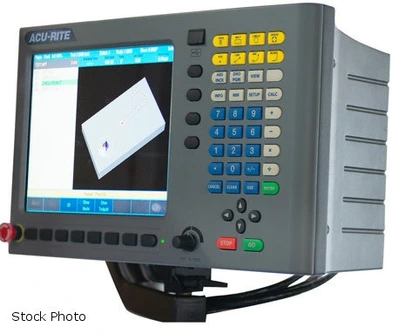

WITH 3-AXES ACU-RITE MILLPOWER CONTROL AND
3-AXES G2 READOUT

CAPACITY
- TRAVELS 31.6" X, 11" Y, 12" RAM, 5 "Z, 16" KNEE
- 6-3/4" TO 18-1/2" SPINDLE TO COLUMN
- 2-1/8" TO 18" SPINDLE NOSE TO TABLE
TABLE
- 9" X 49" WORKING SURFACE
- (3) 5/8" T-SLOTS
SPINDLE
- 3 HP, 220 VOLTS, 3 PHASE
- R-8 NOSE TAPER
- 65-4500 RPM VARIABLE SPEED DRIVE
- 0.0015, 0.003, 0.006 IPR QUILL FEED
- 360 DEGREE HEAD SWIVEL
- 45 DEGREE HEAD TILT (LEFT TO RIGHT)
- 45 DEGREE HEAD TILT (UP AND DOWN)

FEATURES
- DIGITAL VARIABLE SPEED
- HARD-CHROMED WAYS AND GIBS
- PRECISION GROUND AND FLAKED TABLE
- UNIQUE DOUBLE-NUT BACKLASH SYSTEM
- AUTOMATIC LUBE SYSTEM
- FRONT AND REAR WAY COVERS
- DVS HEAD
- TOOL KIT

OPTIONS INCLUDED
- MAXI-TORQUE RITE POWER DRAW BAR (INSTALLED)

OPTIONS AVAILABLE - PRICE ON REQUEST
- ACU-RITE ELECTRICAL EDGE FINDER
- ACU-RITE DRO SYSTEM ON KNEE
- 6" KURT VISE WITH SWIVEL BASE
- DRILL CHUCK AND DRILL ARBOR
- COOLANT SYSTEM WITH CHIP PAN AT BASE
- R-8 COLLECT (SET OF 11) 1/8" - 3/4" BY 1/16"
- CLAMPING KIT (52 PIECE/STEEL RACK)
- 6" RISER BLOCKS
- HALOGEN WORK LIGHT
- RIGHT ANGLE MILLING ATTACHMENT WITH ARBOR
- TRANSFORMER FOR 440 VOLTS
- FAGOR 8055I CONTROL
Power: 220/440 (3-Phase)
