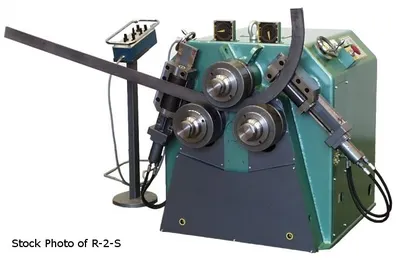

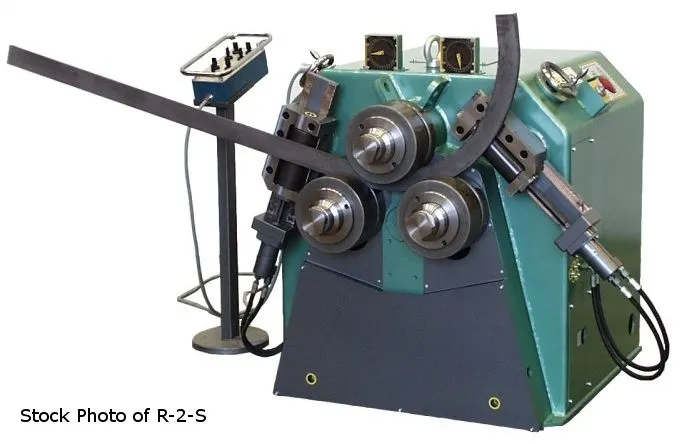

NEW ROUNDO R-4-S

ROUNDO (NEW) MODEL R-4-S ANGLE ROLL

ANGLE LEG CAPACITY
- 4" X 4" X 1/2" LEG OUT
- 4" X 4" X 3/8" LEG IN
- 5" X 5/8" FLAT ON EDGE
- 7" X 1-1/2" FLAT IRON ON FLAT
12.2" ROLL DIAMETER
DRIVE ON ALL 3 ROLLS
- INFINITELY VARIABLE ROTATION SPEED
- HYDRAULIC MOTOR
- AUTO COMPENSATION FOR ROLL SPEED DIFFERENCES
- HYDRAULIC ADJUSTMENT OF THE LOWER ROLLS
- DIGITAL DISPLAY SHOWS POSITION OF LOWER ROLLS
- HYDRAULICALLY OPERATED GUIDE ROLLS
SET OF STANDARD ROLLS FOR STANDARD ANGLE
- LEG-OUT AND LEG-IN BARS
- FLAT BARS ON FLAT AND ON EDGE
- SMALL ROUND BARS AND SQUARE BARS
SKF ROLLER BEARINGS IN ALL MAIN JOURNALS
EMERGENCY STOP BUTTON
PORTABLE CONTROL WITH MINI-JOYSTICKS
12 HP, 480 VOLTS
Power: 480
