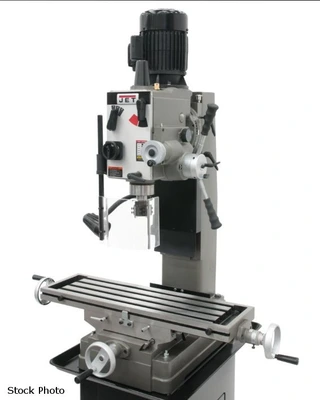

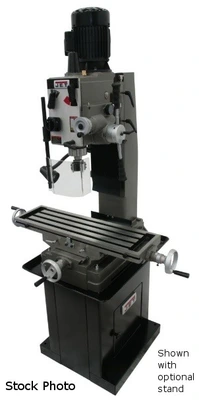

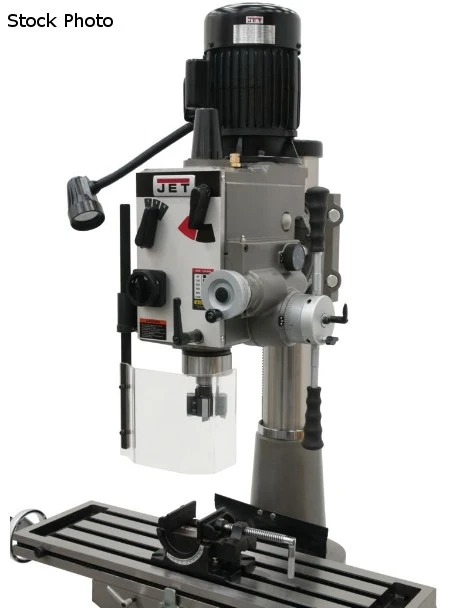

NEW JET JMD-45GHPF

JET (NEW) MODEL JMD-45GHPF GEARED HEAD MILL DRILL
WITH DP500 2-AXIS DRO AND X-AXIS POWERFEED

CAPACITY
- 1-1/2" DRILLING
- 4" FACE MILL
- 3/4" END MILL
19-11/16" SWING
18-1/8" MAXIMUM DISTANCE FROM SPINDLE TO TABLE
R-8 SPINDLE TAPER
5" SPINDLE TRAVEL
3" QUILL DIAMETER
7-7/8" X 7-7/8" SQUARE COLUMN
6 SPINDLE SPEEDS
65 - 1550 RPM SPINDLE SPEEDS
9-1/2" X 32-1/4" TABLE
20-1/2" LONGITUDINAL TABLE TRAVEL
FOUR 5/8" T-SLOTS
26-11/16" X 15-15/16" BASE
1-1/2 HP, 115/230 VOLT, 1 PHASE

FEATURES
- HEAVY-DUTY DESIGN FOR A VARIETY OF PRECISON APPS
- 6-SPEED GEARED HEAD
- SQUARE COLUMN AND DOVETAIL WAYS
- CSA/CUS CERTIFIED
- SPINDLE GUARD
- WORK LAMP
- BUILT-IN CALIBRATED FINE DOWN FEED
- EASY-TO-READ INTERNAL DEPTH GAUGE
- HEAD TILTS 90 DEGREES LEFT AND RIGHT
- RAPID SPINDLE SPEED CHANGES
- QUICK-SELECT GEAR SHIFT LEVERS
- FORWARD / REVERSE SWITCH
- MILLING TABLE ALLOWS FOR MOVEMENT
- R8 SPINDLE ALLOWS USE OF STANDARD MILL TOOLING
- 2-YEAR MANUFACTURER'S WARRANTY

OPTIONS AVAILABLE
- MILL DRILL STAND
Power: 115/230 (Single)
