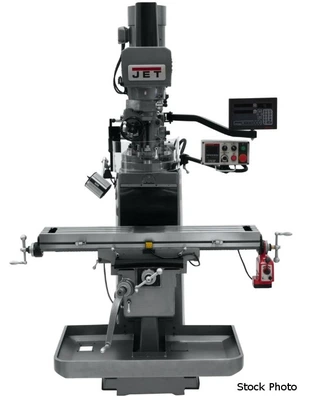

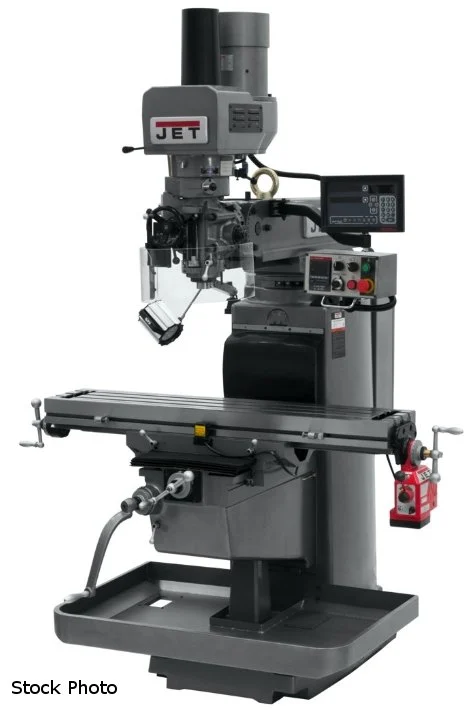

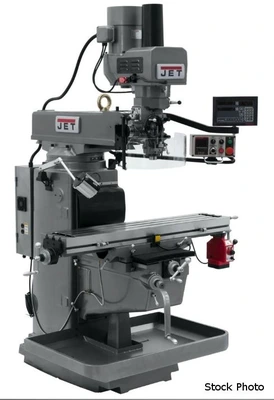

NEW JET JTM-1050EVS2/230

JET JTM-1050EVS2/230 MILL WITH NEWALL DP700 DRO,
X-AXIS POWERFEED AND AIR POWERED DRAWBAR

NEWALL DP700 DIGITAL READOUT
2 AXIS
X-AXIS POWERFEED
PNEUMATIC POWER DRAWBAR
R-8 SPINDLE TAPER
10" X 50" TABLE
3-3/8" QUILL DIAMETER
VARIABLE NUMBER OF SPINDLE SPEEDS
60-4,500 RPM SPINDLE SPEEDS
0.0015, 0.003, 0.006 IPR QUILL DOWNFEED RATES
5" SPINDLE TRAVEL
90 DEGREE RIGHT/LEFT HEAD MOVEMENT
45 DEGREE FRONT/BACK HEAD MOVEMENT
20-3/4" SPINDLE TO TABLE
4-3/4" TO 26-3/4" SPINDLE TO COLUMN
1/8" - 7/8" COLLET CAPACITY
35-1/3" LONGITUDINAL TABLE TRAVEL
29-7/8" LONGITUDINAL TABLE TRAVEL WITH POWERFEED
14-3/4" CROSS TRAVEL
(3) 5/8" T-SLOTS
2-1/2" T-SLOT CENTERS
840 LB WORK TABLE WEIGHT CAPACITY
16-1/8" KNEE TRAVEL
15-7/8" RAM TRAVEL
11-1/2" WIDE SADDLE
20" WIDE COLUMN
DELTA B INVERTER
3 HP, 230 VOLTS, 3 PHASE

FEATURES
- MEEHANITE CASTING WITH ENHANCED RIBBING
- SWING-AWAY CONTROL BOX WITH E-STOP
- EASILY LEVELED WITHOUT LIFTING THE MACHINE
- AUTOMATIC OILER
- HEAVY-DUTY SPINDLE BRAKE
- CSA/CUS CERTIFIED
- CLASS 7 SPINDLE BEARINGS
- SPINDLE HEAD IS INTERNALLY COOLED
- PRECISION HARDENED AND GROUND WAYS AND TABLE
- X AND Y AXIS COATED WITH TURCITE-B
- SWING-AWAY SAFETY SHIELD
- LED WORK LAMP
- CHIP PAN
- DUAL LOCKS ON ALL MOVEABLE SURFACES
- WAY COVERS
- DRAW BAR
- TOOL BOX WITH TOOLS

2 YEAR MANUFACTURER'S WARRANTY
Power: 230 (3-Phase)
