NEW DURMA PBF 30120

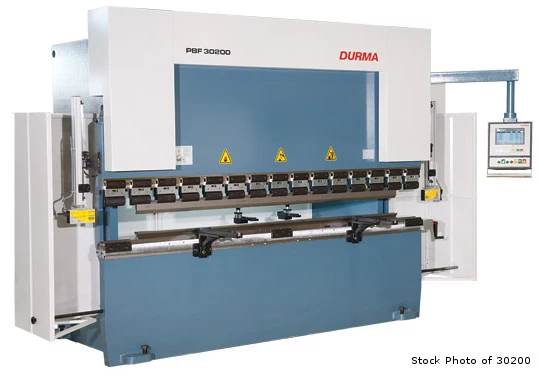

DURMA (NEW) MODEL PBF 30120 CNC PRESS BRAKE

132 US TONS
10' BENDING LENGTH
8' 4" BETWEEN HOUSINGS
34.5" TABLE HEIGHT
4.1" TABLE WIDTH
7" STROKE
14.76" DAYLIGHT
9.84" THROAT DEPTH
236"/MINUTE Y-AXIS RAPID SPEED
24"/MINUTE Y-AXIS WORKING SPEED
180"/MINUTE Y-AXIS RETURN SPEED
.0004" Y-AXIS PRECISION
600"/MINUTE BACK GAUGE (X-AXIS) WORKING SPEED
24" BACK GAUGE (X-AXIS) WORKING DISTANCE
11 HP MOTOR

DT 15 CNC CONTROL
- 2D GRAPHICAL TOUCH SCREEN PROGRAMMING MODE
- USB PERIPHERAL INTERFACING
- SENSOR BENDING AND CORRECTION INTERFACE

STANDARD FEATURES
- Y1, Y2 X-AXIS (MANUAL R-AXIS)

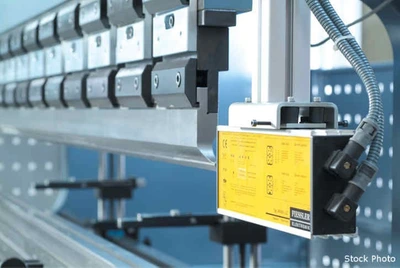

- FIESSLER LASER FINGER SAFETY - MANUAL HT ADJUST

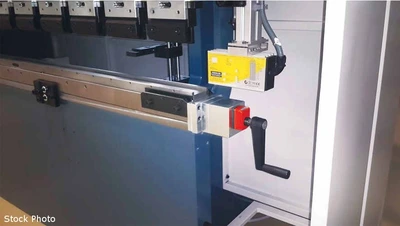

- MOTORIZED BALL SCREW BACKGAUGE SYSTEM SUPPORTED
WITH LINEAR GUIDES (POWERED X-AXIS)
- UNIVERSAL WEDGE-STYLE PUNCH CLAMP
(FOR AMERICAN AND EUROPEAN STYLE PUNCHES)
- PRECISION GROUND PUNCH/4-WAY DIE
TOP TOOL - ROLLERI P97.75.R08
BOTTOM TOOL - ROLLERI M.460R.85
- 2 SUPPORT ARMS WITH T-SLOT
- BACK GAUGE FINGER BLOCKS - MANUAL HT ADJUST
- MANUAL WEDGE-TYPE CROWNING

OPTIONS AVAILABLE - PRICE ON REQUEST
- 2-AXIS BACK GAUGE PACKAGE
POWERED X AXIS (25.59") AND R AXIS (9.84")
- CNC CONTROLLED MOTORIZED CROWNING
- TOP TOOL EUROPEAN P135.75.R08
- BOTTOM TOOL EUROPEAN - SINGLE V=3.93"
- BOTTOM TOOL DURMA MULTI V
- QUICK-RELEASE CLAMPING
- ADDITIONAL FINGER BLOCKS
- ADDITIONAL SUPPORT ARMS WITH T-SLOT
- OIL COOLANT

HYDRAULIC OIL REQUIRED
Power: 208/220/440 (3-Phase)
