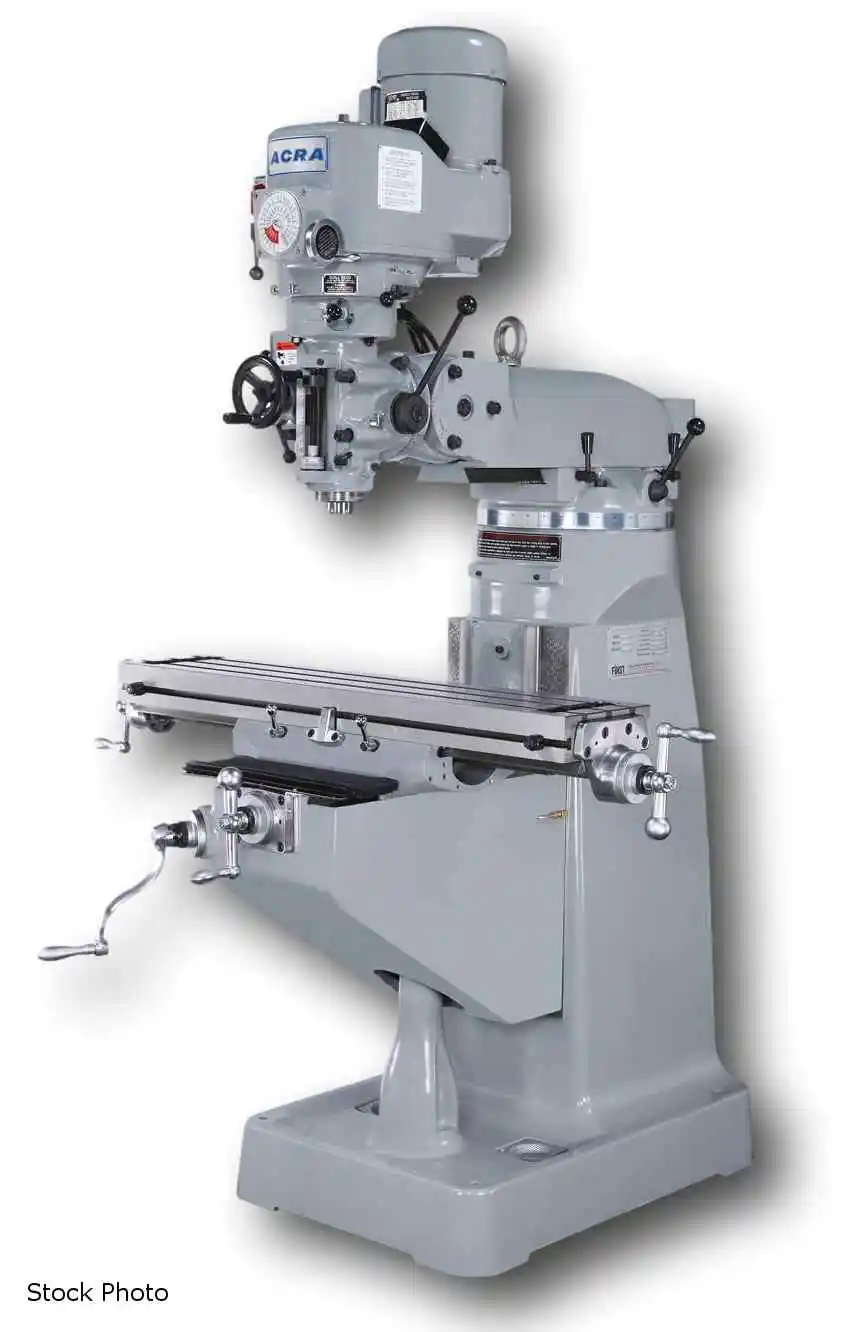

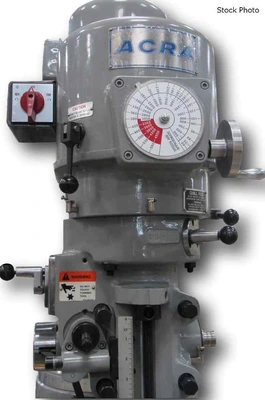

NEW ACRA LCM50

ACRA (NEW) MODEL LCM50 VARIABLE SPEED VERTICAL
MILL

9" X 54" TABLE
TRAVEL
- 38" X AXIS
- 12" Y AXIS
- 5" Z AXIS (QUILL)
- 12" RAM
- 16" KNEE
(3) 0.625" X 2.5" T SLOTS
6.75" - 18.75" THROAT
0" - 18.5" SPINDLE GAUGE LINE TO TABLE TOP
60-4500 RPM VERTICAL SPEED
0.0016 / 0.0031 / 0.0063" QUILL FEED
R8 VERTICAL SPINDLE TAPER
90 DEGREE HEAD TILT (RIGHT - LEFT)
+45 TO -38 DEGREE HEAD TILT (UP - DOWN)
3 HP VERTICAL MOTOR, 230/460 VOLTS, 3 PHASE

STANDARD EQUIPMENT
- QUILL HEAT TREATED HARDENED CHROMED WAYS
- DUAL COOLING FANS

OPTIONS AVAILABLE - PRICE ON REQUEST
- X AND Y BALLSCREWS (GRADE C5)
- POWER FEED SYSTEM
- 8-SPEED GEAR BOX FEED SYSTEM
- 50" LONG TABLE
- SCALES
- COOLANT SYSTEM / COOLANT TRAY
- AUTOMATIC LUBRICATION SYSTEM
- HALOGEN LIGHT WITH ELECTRIC BOX
- 4" OR 7" RISER BLOCK
- AIR POWER DRAWBAR (VERTICAL)
- TAPPING UNIT
Power: 230/460 (3-Phase)
