NEW DURMA AD-S 60400

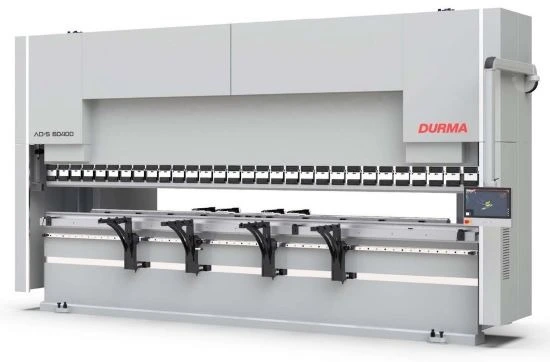

DURMA (NEW) MODEL AD-S 60400 CNC HYDRAULIC PRESS
BRAKE WITH DT-15 CONTROL

440 US TONS
19' 10.3" BENDING LENGTH
16' 8.9" BETWEEN COLUMNS
48.03" TABLE HEIGHT
6" TABLE WIDTH
14.37" STROKE
24.8" DAYLIGHT
20.07" THROAT DEPTH
284"/MINUTE Y-AXIS RAPID SPEED
19"/MINUTE Y-AXIS WORKING SPEED
237"/MINUTE Y-AXIS RETURN SPEED
0.0004" RAM REPEATABILITY
827"/MINUTE BACKGAUGE (X-AXIS) WORKING SPEED
29.53" BACKGAUGE (X-AXIS) WORKING DISTANCE
49 HP MOTOR

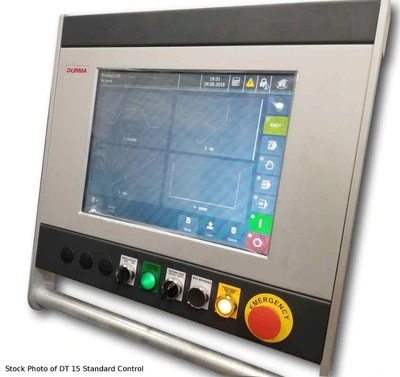

DT-15 CNC CONTROL
- 2D GRAPHICAL TOUCH SCREEN PROGRAMMING MODE
- USB PERIPHERAL INTERFACING
- SENSOR BENDING AND CORRECTION INTERFACE

STANDARD FEATURES
- Y1-AXIS, Y2-AXIS, AND X-AXIS (MANUAL R-AXIS)
- FIESSLER LC5 LASER FINGER SAFETY - MANUAL HT ADJUST
- SERVO DRIVEN BACKGAUGE SYSTEM (X-AXIS)
LINEAR GUIDE AND BALLSCREW DESIGN
- UNIVERSAL WEDGE STYLE PUNCH CLAMP
(FOR AMERICAN OR EUROPEAN STYLE PUNCHES)
- PRECISION GROUND PUNCH/4-WAY DIE
TOP TOOL - ROLLERI P135.75.R08
BOTTOM TOOL - ROLLERI M.460R.85
- 2 SLIDING FRONT SUPPORT ARMS WITH T-SLOT,
TILTING STOP AND FULL LENGTH LINEAR GUIDE
- 2 BACKGAUGE FINGER BLOCKS
- CNC CONTROLLED MOTORIZED CROWNING
- LED WORK LIGHT ON TOP RAM

OPTIONS AVAILABLE - PRICE ON REQUEST
- 11.81" TABLE WIDTH
- 2-AXIS BACKGAUGE PACKAGE
X-AXIS = 25.59" R-AXIS = 9.8" X, R
- 4-AXIS BACKGAUGE PACKAGE
X-AXIS = 25.59" R-AXIS = 9.8" X, R, Z1, Z2
- DELEM DA-66S CNC CONTROL
- SKY-22 CNC CONTROL
- DBEND 3D OFFLINE SOFTWARE PACKAGE
CAD/CAM IMPORTING AND SIMULATION
- ADDITIONAL BACKGAUGE FINGER BLOCKS
- THROAT DEPTH - 29.5", 39.3" OR 49.2"

HYDRAULIC OIL REQUIRED
