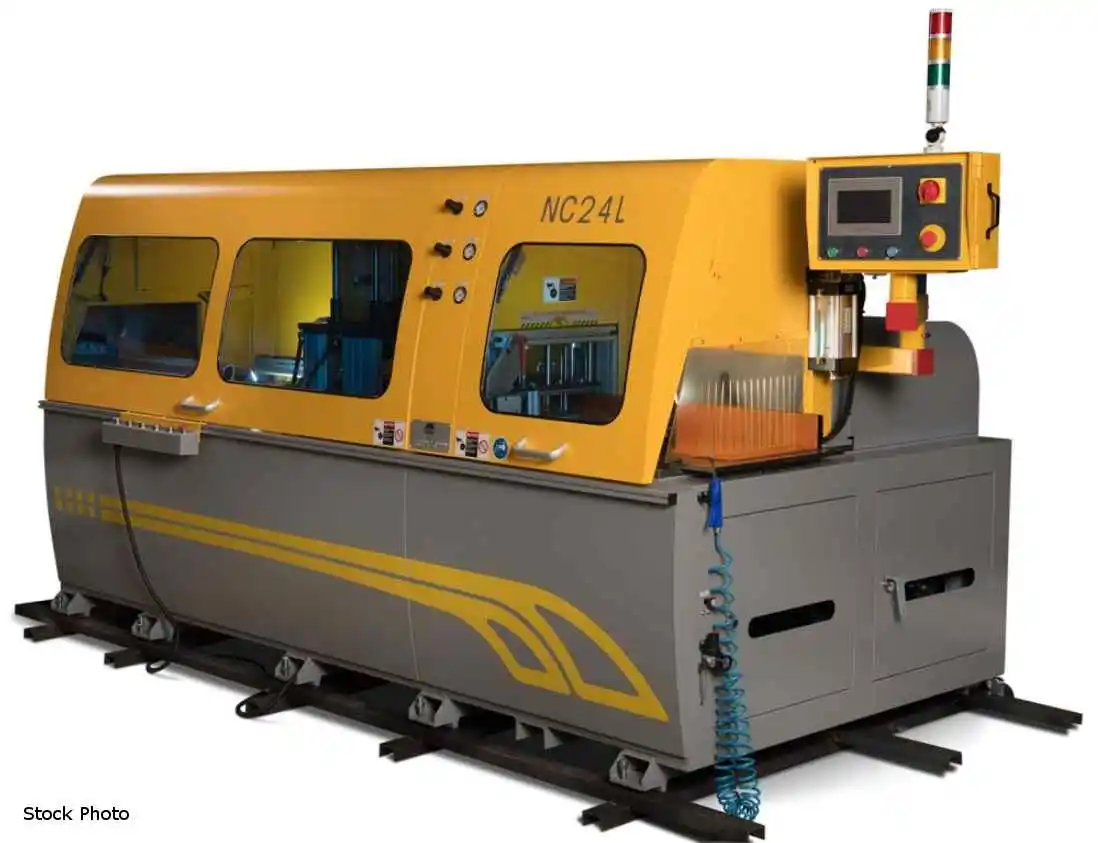

NEW PAT MOONEY PMI-NC24 L-TYPE
Overview
Specifications
| Dimensions | 138 X 83 X 74 | 138 X 83 X 74 |
|---|---|---|
| Weight | 5,060 | 5,060 |
PAT MOONEY (NEW) MODEL PMI-NC24 L-TYPE FULLY
AUTOMATIC HIGH PRODUCTION CUTOFF SAW
SAWS ALUMINUM, NON-FERROUS METALS SOLID BARS
SAW BLADE SIZES WITH 1" BORE
- 12", 14", 16", 18", 20", 22", 24"
1500 RPM TO 3500 VARIABLE BLADE SPEED
55" STROKE
15 HP SAW MOTOR
1 HP HYDRAULIC MOTOR
CUTTING CAPACITY AT 90 DEGREES
- 7.87" X 7.87" SQUARE
- 7.87" X 8.85" RECTANGLE
- 6.89" X 12.80" RECTANGLE
- 5.51" X 14.88" RECTANGLE
- 4.92" X 15.748" RECTANGLE
MACHINE FEATURES
- 90 DEGREE (STRAIGHT) CUT SAW
- MITSUBISHI NC TOUCHSCREEN CONTROL
INPUT CUT LENGTH AND NUMBER OF PIECES
MACHINE MONITORS JOB FOR ACCURACY
100 PROGRAMS CAN BE STORED
EACH PROGRAM CAN HAVE 12 STEPS
- FULLY HYDRAULIC FEED RATE CONTROL
- BALL SCREW/SERVO CONTROLLED MATERIAL INDEXING
- PNEUMATIC, ADJUSTABLE CLAMPING SYSTEM
- VERTICAL AND HORIZONTAL CLAMPING
- BUNDLE/STACK CUTTING
- SAW TABLE SEPARATION
NO MATERIAL RE-CUT
IMPROVED SURFACE FINISH
EXTENDED BLADE LIFE
- ADJUSTABLE CLAMPING PRESSURE
- SAW HEAD TRAVELS ON LINEAR GUIDE WAYS
- PRECISE MICRO-DRIP BLADE LUBRICATION SYSTEM
SAFETY FEATURES

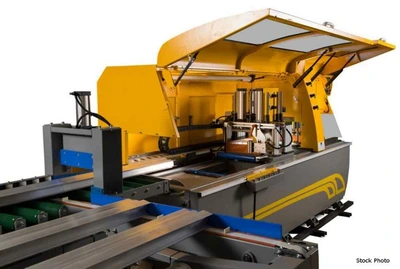

- MACHINE ENCLOSURE MONITORED BY LIMIT SWITCHES
- COVER MUST BE CLOSED FOR SAW TO CYCLE
- LIMIT SWITCH SHUTS DOWN MACHINE IF OPEN DOOR
EQUIPPED WITH

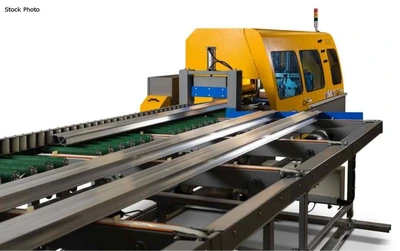

- 11.5' INFEED CONVEYOR
- TOOL KIT
- KANEFUSA 120T SAW BLADE
- OPERATING MANUAL
