| Dimensions | 115 X 46 X 73 | 115 X 46 X 73 |
| Weight | 5,850 | 5,850 |

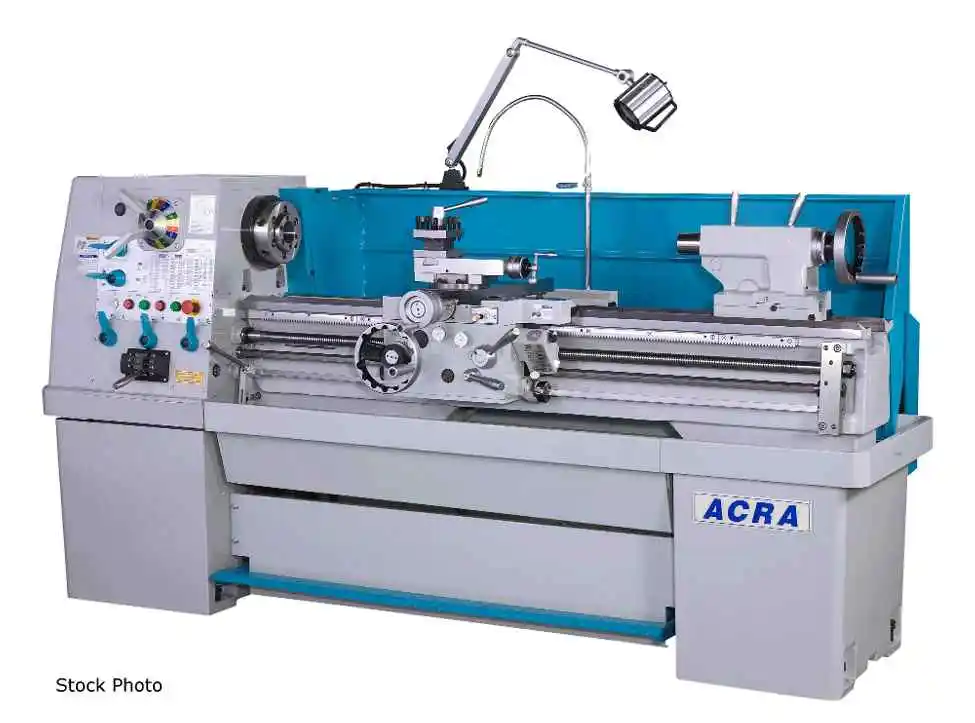

ACRA (NEW) MODEL 2160C PRECISION ENGINE LATHE
CAPACITY
- 21" SWING OVER BED
- 14" SWING OVER CROSS SIDE
- 30" SWING IN GAP
- 8" GAP IN FRONT OF FACE PLATE
- 60" BETWEEN CENTERS
- 13-1/2" BED WIDTH
- D1-8 SPINDLE NOSE
- 3-1/8" SPINDLE BORE
- 16 SPINDLE SPEEDS 26 - 1600 RPM
- 11" CROSS SLIDE
- 5-3/8" COMPOUND SLIDE
- 45 INCH THREADS 2-72 TPI
- 39 METRIC THREADS 0.2-14 PITCH
- 18 MODULE THEADS 0.3-3.5
- 21 DIAMETRICAL THREADS 8-44
- 0.0015-0.04 IPR LONGITUDINAL FEED
- 0.000075-0.02 IPR CROSS FEED
- 3" QUILL DIAMETER
- 7" QUILL TRAVEL
- MT#5 QUILL TAPER
- 12.5 HP, 3 PHASE, 230/460 VOLTS
STANDARD EQUIPMENT
- 10"/12" 3-JAW CHUCK
- 12"/16" 4-JAW CHUCK
- STEADY/FOLLOW REST
- COOLANT SYSTEM
- HALOGEN LIGHT
- 4-WAY TOOL HOLDER
- FULL-LENGTH SPLASH GUARD
- MICRO BED STOP
- CHUCK GUARD
OPTIONS AVAILABLE - PRICE ON REQUEST
- FACE PLATE
- TAPER ATTACHMENT (AND INSTALLATION)
- COLLET CLOSER
- DIGITAL READOUTS-NEWALL, ACU-RITE, SONY, FAGOR
- DRO INSTALLATION
- QUICK-CHANGE TOOL HOLDER
- MT5 LIVE CENTER
Power: 230/460 (3-Phase)
