NEW DURMA AD-S 40320

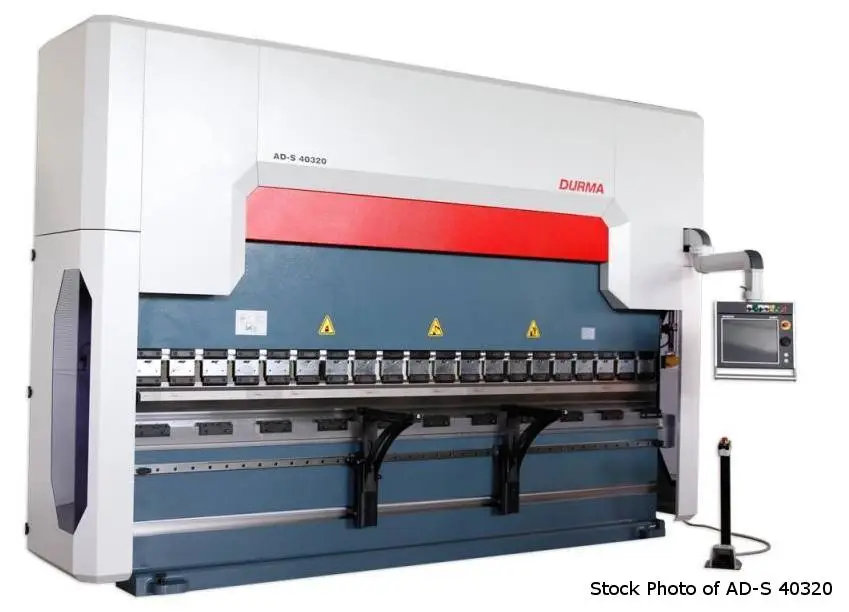

DURMA (NEW) MODEL AD-S40320 CNC HYDRAULIC PRESS
BRAKE WITH DT-15 CONTROL

352 US TONS
13' 3" BENDING LENGTH
11' 9" BETWEEN COLUMNS
35.4" TABLE HEIGHT
6" TABLE WIDTH
14.3" STROKE
24.8" DAYLIGHT
17.71" THROAT DEPTH
378"/MINUTE Y-AXIS RAPID SPEED
24"/MINUTE Y-AXIS WORKING SPEED
331"/MINUTE Y-AXIS RETURN SPEED
0.0004" RAM REPEATABILITY
1200"/MINUTE BACKGAUGE (X-AXIS) WORKING SPEED
25.5" BACKGAUGE (X-AXIS) WORKING DISTANCE
49 HP MOTOR

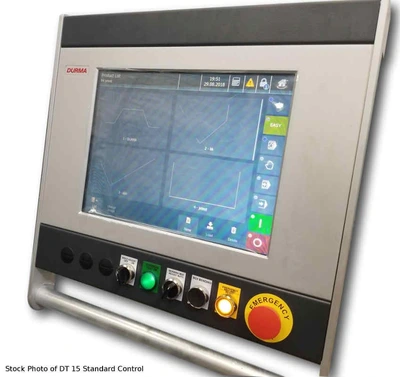

DT-15 CNC CONTROL
- 2D GRAPHICAL TOUCH SCREEN PROGRAMMING MODE
- USB PERIPHERAL INTERFACING
- SENSOR BENDING AND CORRECTION INTERFACE

STANDARD FEATURES
- 4-AXIS Y1, Y2, X, MANUAL R
- FIESSLER LC5 LASER FINGER SAFETY - MANUAL HT ADJUST
- SERVO DRIVEN BACKGAUGE SYSTEM (X-AXIS)
LINEAR GUIDE AND BALLSCREW DESIGN

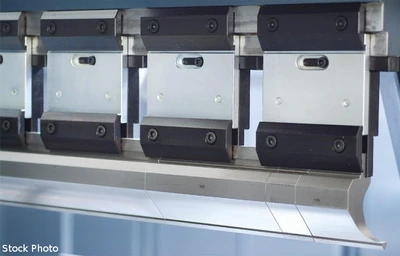

- UNIVERSAL WEDGE STYLE PUNCH CLAMP
(FOR AMERICAN OR EUROPEAN STYLE PUNCHES)
- BOTTOM DIE RAIL ADAPTER
(FOR AMERICAN AND EUROPEAN STYLE DIES)

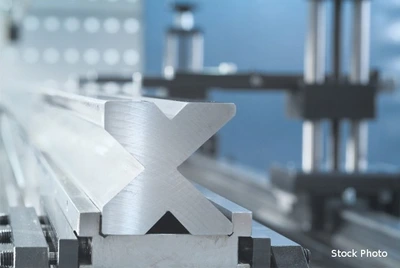

- PRECISION GROUND PUNCH/4-WAY DIE
TOP TOOL - ROLLERI P135.75.R08
BOTTOM TOOL - ROLLERI M.460R.85
- 2 SLIDING FRONT SUPPORT ARMS WITH T-SLOT,
TILTING STOP AND FULL LENGTH LINEAR GUIDE
- 2 BACKGAUGE FINGER BLOCKS
- MANUAL WEDGE-TYPE CROWNING
- LED WORK LIGHT ON TOP RAM

OPTIONS AVAILABLE - PRICE ON REQUEST
- 2-AXIS BACKGAUGE PACKAGE
X-AXIS = 25.59" R-AXIS = 9.8" X, R
- 4-AXIS BACKGAUGE PACKAGE
X-AXIS = 25.59" R-AXIS = 9.8" X, R, Z1, Z2
- CNC CONTROLLED MOTORIZED CROWNING
- DELEM DA-66S CNC CONTROL
- SKY-22 CNC CONTROL
- DBEND 3D OFFLINE SOFTWARE PACKAGE
CAD/CAM IMPORTING AND SIMULATION
- DURMA BOTTOM DIE
- ADDITIONAL BACKGAUGE FINGER BLOCKS
- THROAT DEPTH - 29.5"

HYDRAULIC OIL REQUIRED
