| Dimensions | 77 X 74 X 71 | 77 X 74 X 71 |
| Weight | 4,000 | 4,000 |
SHARP (NEW) MODEL SH-1224 AUTOMATIC SURFACE
GRINDER
CAPACITY
- 14" X 27.6" TABLE TRAVEL
- 19.3" FROM TABLE TO SPINDLE CENTER
TABLE
- 11.6" X 23.6" WORKING SURFACE
- 6.6-82 IPM LONGITUDINAL HYDRAULIC TABLE FEED
FEED
- 0.004-0.4 IPM INTERMITTENT CROSS FEED
- 39 IPM CONTINUOUS CROSS FEED
- 200 GRADUATIONS ON DIAL
- 0.0005" FEED PER GRADUATION
- 0.1" FEED PER REVOLUTION
VERTICAL TRAVEL
- 500 GRADUATIONS
- 0.0001" FEED PER GRADUATION
- 0.05" FEED PER REVOLUTION
- 14" OD X 1.25" WIDE X 5" ID WHEEL
3 HP SPINDLE MOTOR, 220 OR 440 VOLTS
1/8 HP COOLANT SYSTEM MOTOR
FEATURES
- 2-AXIS AUTO AND MANUAL DOWNFEED OR 3-AXIS AUTO
- 1,720 SPINDLE SPEED
- 2 V-WAYS
- EXTRA WIDE BED

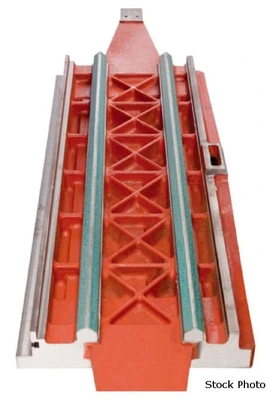

- DOUBLE LONGITUDINAL V WAYS AND CROSS V WAYS

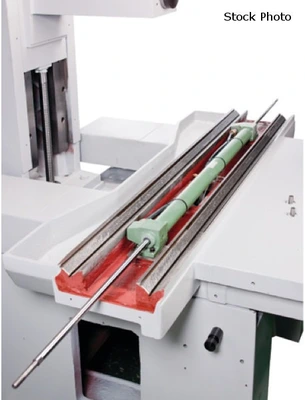

- HYDRAULIC TABLE WITH OVER TRAVEL PROTECTION
- AUTO CROSS FEED - INTERMITTENT CONTINUOUS MODE
- SLIDE WAYS ARE HAND SCRAPED AND TURCITE COATED
- ANNEALED CASTINGS FOR GREATER MACHINE STABILITY
STANDARD EQUIPMENT
- 14" X 1.25" X 5" GRINDING WHEEL
- AUTO LUBE SYSTEM
- 12 GALLON COOLANT SYSTEM
- WHEEL ADAPTER/FLANGE
- WHEEL BALANCING ARBOR
- GRINDING WHEEL BALANCING STAND
- DIAMOND DRESSER
- SPLASH GUARDS FOR FRONT AND BACK
- TOOL KIT
OPTIONS AVAILABLE - PRICE ON REQUEST
- 440 V TRANSFORMER FOR MICRO CONTROL DOWNFEED SYS
- ELECTROMAGNETIC CHUCKS
- TOUCH SCREEN PROGRAMMABLE CONTROL SPINDLE
- DOWN FEED SYSTEM CONTROL
- PARALLEL DRESSER
- RADIUS AND ANGLE DRESSER
- HALOGEN WORK LIGHT
- COOLANT SYSTEMS
- DUST COLLECTOR
- SPARE WHEEL ADAPTOR (FLANGE)
- RADIUS FORMING ATTACHMENT
- ANGLE FORMING ATTACHMENT
- RAPID TRAVERSE UP/DOWN WHEEL HEAD
- CREEP FEED
- 5 HP
- CE MARK
- DIGITAL READOUTS - FAGOR, ACU-RITE, NEWALL
- DIGITAL READOUT INSTALLATION
Power: 220/440
