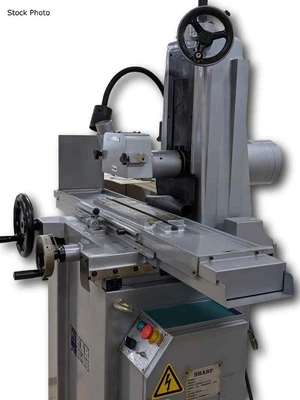

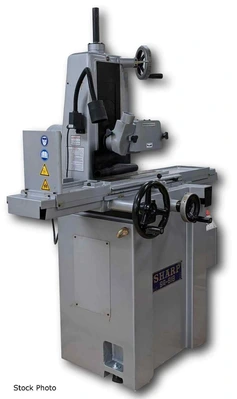

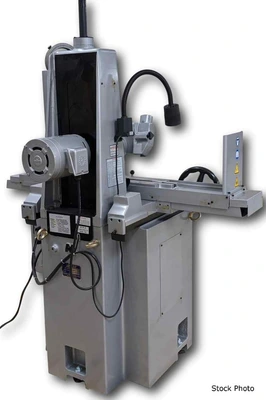

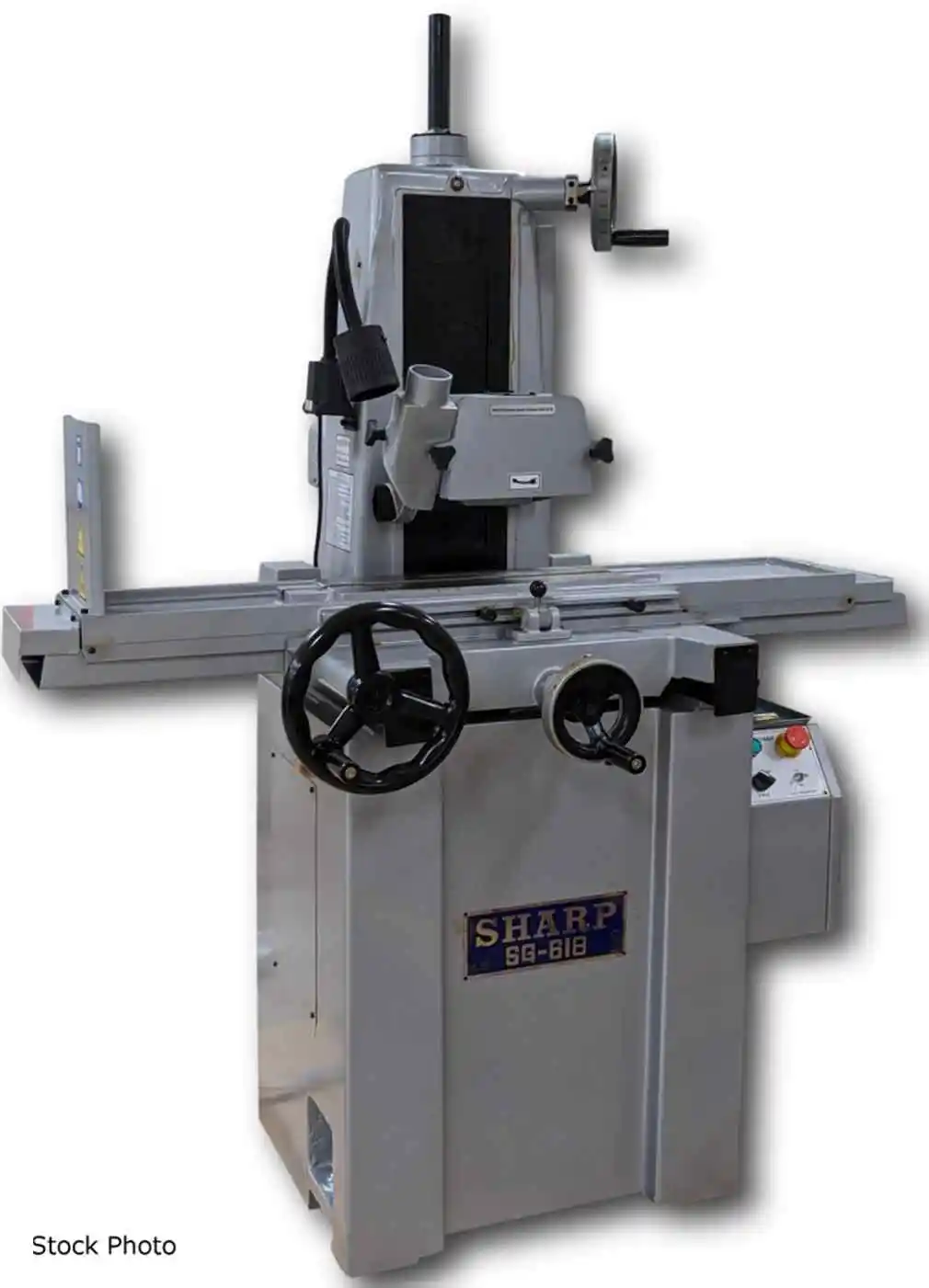

NEW SHARP SG-618

SHARP (NEW) MODEL SG-618 MANUAL SURFACE GRINDER

CAPACITY
- 18.5" GRINDING LENGTH
- 6.3" GRINDING WIDTH
- 16" FROM TABLE TO SPINDLE CENTER

TABLE
- 6" X 18.3" WORKING SURFACE
- 18.9" LONGITUDINAL TRAVEL
- 7" CROSS TRAVEL

LONGITUDINAL MOVEMENT OF TABLE
- 4.2" HAND FEED PER REVOLUTION

CROSS MOVEMENT OF SADDLE
- 0.2" HAND FEED PER REVOLUTION
- 0.001" GRADUATION OF HAND WHEEL

VERTICAL MOVEMENT OF WHEEL HEAD
- 0.05" HAND FEED PER REVOLUTION
- 0.0001" GRADUATION OF HAND WHEEL

SPINDLE AND WHEEL
- 1-1/2 HP
- 3,600 RPM SPINDLE SPEED
- 8" GRINDING WHEEL OUTSIDE DIAMETER
- 1.25" GRINDING WHEEL BORE
- 0.63" GRINDING WHEEL WIDTH

FEATURES
- 2 V WAYS FOR CROSS TRAVEL ACCURACY
- BOTH WAYS ARE HAND SCRAPED AND COVERED WITH
TURCITE B COATING.
- ACCURATE SLOT GRINDING ACHIEVED USING SADDLE
LOCKING SYSTEM
- DOUBLE-NUT BACKLASH ELIMINATOR
- CROSS SLIDE AND COLUMN SCREWS ARE HARDENED AND
GROUND TO A 70 ROCKWELL C HARDNESS
- WIRE ROPE-DRIVEN TABLE
- MAIN SPINDLE RUN OUT WITH 0.0001"
- AUTOMATIC LUBRICATION SYSTEM

STANDARD EQUIPMENT
- 8" X 0.63" X 1.25" GRINDING WHEEL
- AUTO LUBE SYSTEM
- WHEEL ADAPTOR / FLANGE
- WHEEL BALANCING ARBOR
- WORK LIGHT
- DIAMOND DRESSER
- TOOL KIT

OPTIONS AVAILABLE - PRICE ON REQUEST
- 6" X 18" PERMANENT MAGNETIC CHUCK
- 6" X 18" FINE POLE PERMANENT MAGNETIC CHUCK
- 6" X 18" CHUCK WITH CONTROL
- PARALLEL DRESSER
- BALANCE STAND
- EXTRA WHEEL ADAPTER/FLANGE
- 12 GAL COOLANT SYSTEMS WITH SPLASH GUARD
- SPLASH GUARD
- DUST COLLECTOR
- 25 GAL COOLANT SYSTEM WITH MAGNETIC SEPARATOR
AND PAPER FILTER
- DIGITAL READOUTS SYSTEM
- CE MARK
Power: 220 OR 440
