NEW DURMA AD-S 40400

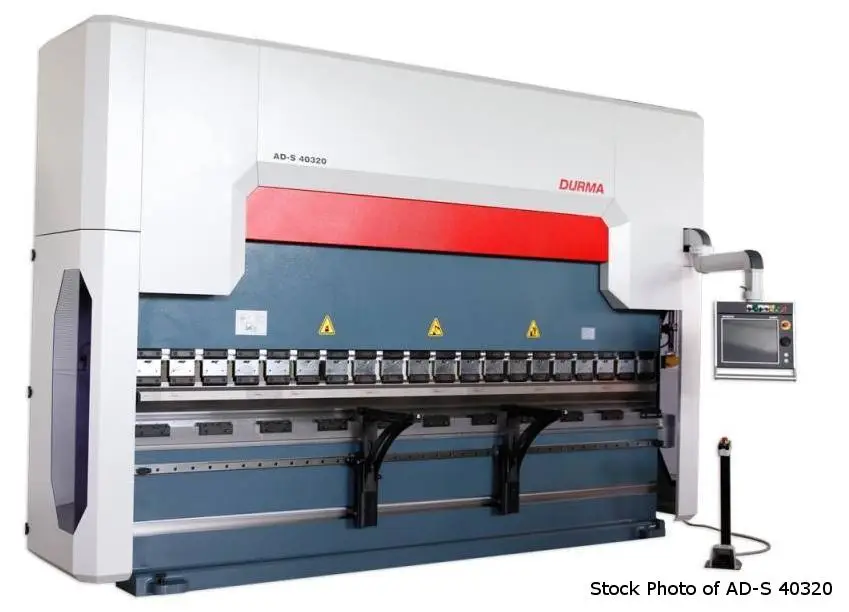

DURMA (NEW) MODEL AD-S 40400 CNC HYDRAULIC
PRECISION PRESS BRAKE WITH DA-66S CONTROL

440 US TONS
13' 3" BENDING LENGTH
11' 1" BETWEEN COLUMNS
41.3" TABLE HEIGHT
6"/11.8" TABLE WIDTH (NARROW/WIDE)
14.37" STROKE
24.8" DAYLIGHT
20.07" THROAT DEPTH
330"/MINUTE Y-AXIS RAPID SPEED
19"/MINUTE Y-AXIS WORKING SPEED
284"/MINUTE Y-AXIS RETURN SPEED
0.0004" RAM REPEATABILITY
827"/MINUTE BACKGAUGE (X-AXIS) WORKING SPEED
29.5" BACKGAUGE (X-AXIS) WORKING DISTANCE
709"/MINUTE BACKGAUGE (R-AXIS) WORKING SPEED
9.84" BACKGAUGE (R-AXIS) WORKING HEIGHT
49 HP MOTOR

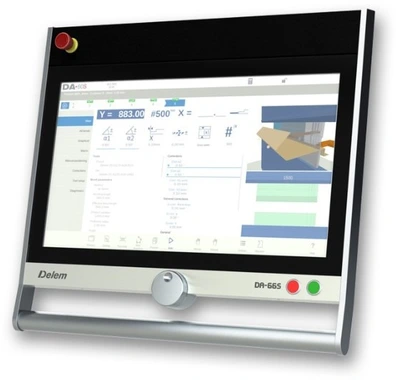

DELEM DA-66S CNC CONTROL
- 2D GRAPHICAL TOUCH SCREEN PROGRAMMING MODE
- 3D VISUALIZATION IN SIMULATION PRODUCTION
- 24" HIGH RESOLUTION COLOR TFT
- DELEM MODUSYS COMPATIBILITY
- USB PERIPHERAL INTERFACING
- USER-SPECIFIC APPLICATION SUPPORT
- SENSOR BENDING AND CORRECTION INTERFACE
- PROFILE-S2D OFFLINE SOFTWARE

STANDARD FEATURES
- 4-AXIS CNC Y1, Y2, X, R
- FIESSLER LC5 LASER FINGER SAFETY - MANUAL HT ADJUST
- SERVO DRIVEN BACKGAUGE SYSTEM (X-AXIS)
LINEAR GUIDE AND BALLSCREW DESIGN

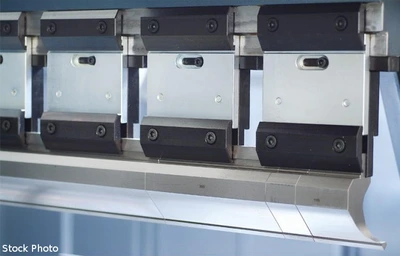

- UNIVERSAL WEDGE STYLE PUNCH CLAMP
(FOR AMERICAN OR EUROPEAN STYLE PUNCHES)
- BOTTOM DIE RAIL ADAPTER
(FOR AMERICAN AND EUROPEAN STYLE DIES)

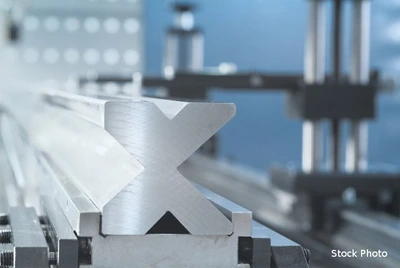

- PRECISION GROUND PUNCH/4-WAY DIE
TOP TOOL - ROLLERI P135.75.R08
BOTTOM TOOL - ROLLERI M.460R.85
- 2 SLIDING FRONT SUPPORT ARMS WITH T-SLOT,
TILTING STOP AND FULL LENGTH LINEAR GUIDE
- 2 BACKGAUGE FINGER BLOCKS
- CNC CONTROLLED MOTORIZED CROWNING
- LED WORK LIGHT ON TOP RAM

OPTIONS AVAILABLE - PRICE ON REQUEST
- DELEM DA-69S CNC CONTROL PROFILE T3D SOFTWARE
- DURMA SKY 22 CNC CONTROL
- 2-AXIS BACKGAUGE X = 39.37" X, R
- 4-AXIS BACKGAUGE X = 29.5" X, R, Z1, Z2
- 4-AXIS BACKGAUGE X = 39.37" X, R, Z1, Z2
- 4 + 1 AXIS BG X, R, Z1, Z2 DELTA X +/- 4.9"
- 6-AXIS BACKGAUGE X=29.5 X1, X2, R1, R2, Z1, Z2
- MOTORIZED F.AKAS-3 FPSC (LASER FINGER SAFETY)
- AP3-AP4 AUTOMATIC SYSTEM OF SHEET FOLLOWER
MOTORIZED ELEVATION ADJUSTMENT
- DURMA LASER ANGLE MEASUREMENT SYSTEM
ADJUSTS PARAMETERS THROUGH BEND CYCLE
EXACT BENDING WITHOUT OPERATOR'S INTERVENTION
PROVIDES THE TARGET ANGLE WITH SINGLE BENDING
PREVENTS MATERIAL AND TIME LOSS
- HYDRAULIC AND PNEUMATIC TOOL CLAMPING SYSTEMS
- CENTRAL LUBRICATION SYSTEMS
- OIL COOLER / OIL HEATER
- ADDITIONAL BACKGAUGE FINGERS
- ADDITIONAL SLIDING FRONT SUPPORT ARMS
- DBEND 3D OFFLINE SOFTWARE PACKAGE
CAD/CAM IMPORTING AND SIMULATION
- DURMA TOP PUNCH
- DURMA BOTTOM DIE
- THROAT DEPTH - 29.5", 39.3", 49.2" OR 59"

HYDRAULIC OIL REQUIRED
