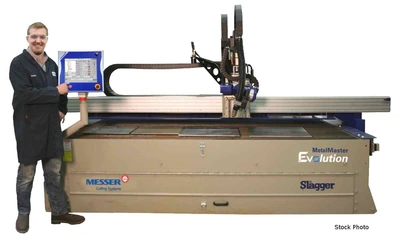

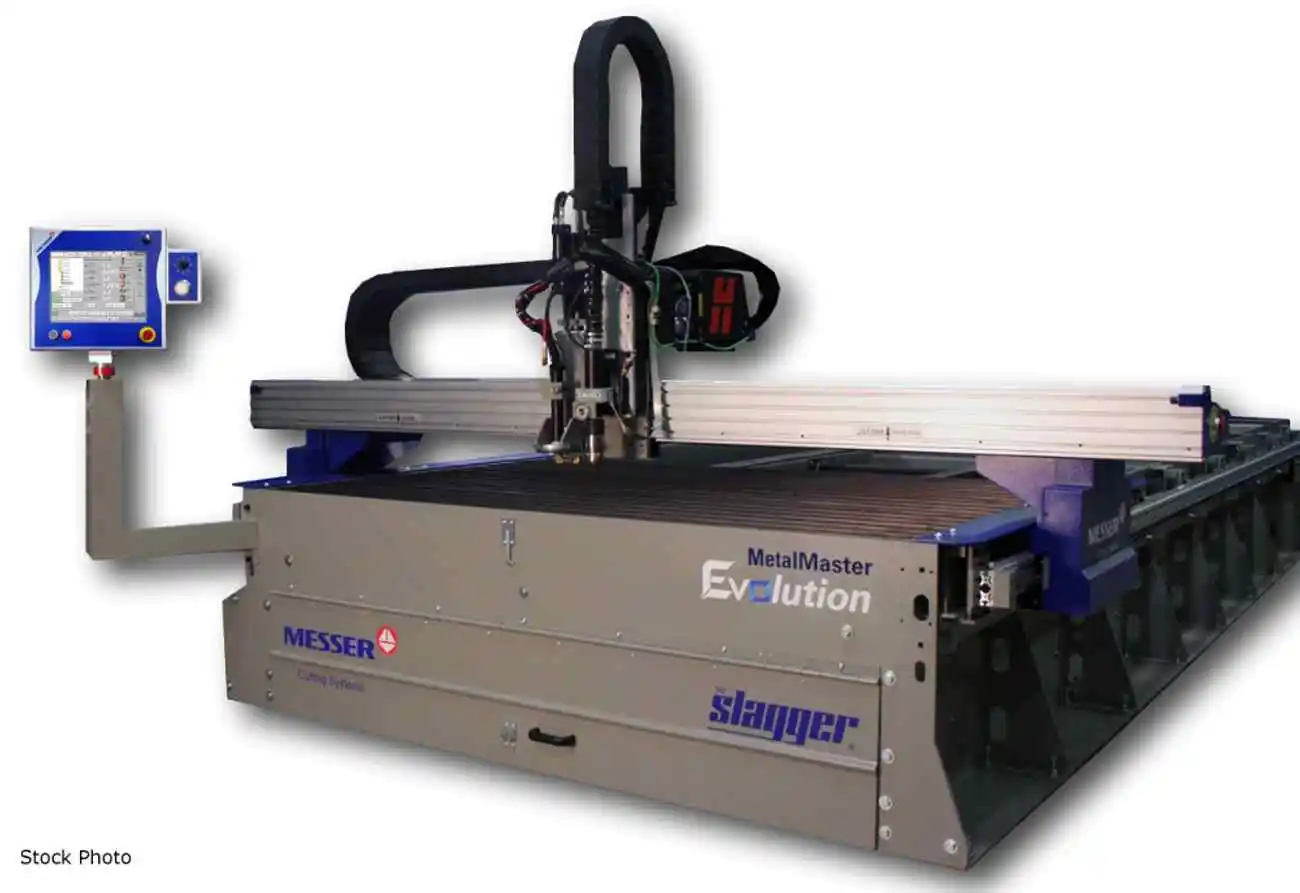

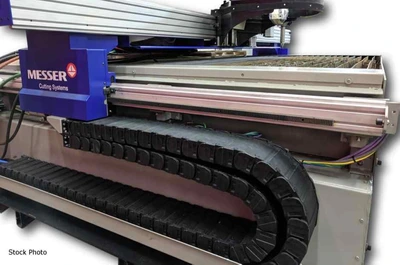

NEW MESSER METALMASTER EVOLUTION

MESSER (NEW) MODEL METALMASTER EVOLUTION PLASMA
CUTTING MACHINE

INCLUDES SLAGGER SELF-CLEANING ZONED AND DUCTED
DRY EXHAUST TABLE

CUTTING WIDTHS
- 6', 8' OR 10'
CUTTING LENGTHS
- 10', 15', 20', 25', 30', 35', 40', 45' OR 50'
26 GAUGE TO 3" THICK PLATE
MILD STEEL, STAINLESS STEEL AND ALUMINUM
+/- 0.002" MOTION ACCURACY IN 72" X 72" AREA
400 IPM CONTOURING SPEEDS
1700 IPM POSITIONING SPEEDS
SURESTOP COLLISION SENSOR W/EASY, ACCURATE RESET
ADVANCED PLASMA TECHNOLOGY FOR
- CONSISTENT PIERCING
- FASTER CUTTING

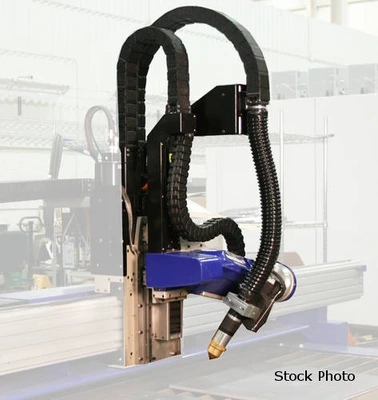

- HIGH-SPEED CSL200 TORCH LIFTER
MODULAR DESIGN FOR FAST INSTALLATION RELOCATION
MADE IN USA TO MACHINE TOOL ISO 230-2 STANDARDS
UL/CUL

GLOBAL CONTROLS
- WINDOWS-BASED OPERATING SYSTEM
- EASY-TO-USE OPERATOR INTERFACE
- TOUCH SCREEN
- CUSTOM SHAPE LIBRARY
- CAD IMPORT
- TRUE SHAPE NESTING
- MULTIPLE PROCESS DATABASE
- PRODUCTIVITY MONITORING
- LEFT OR RIGHT HAND MOUNTED CONTROL THAT
SWIVELS AND TILTS FOR OPERATOR COMFORT
- MULTIPLE REFERENCE POINT POSITIONS FOR EFFICIENT
START-OF-CUT LOCATIONS
- VIRTUAL SERVICE REMOTE CONSULTATION/DIAGNOSTICS

OPTIONS AVAILABLE - PRICE ON REQUEST
- 2 PLASMA TORCHES - 400 AMP CAPACITY EACH
- PLASMA BEVELING UNITS
BEVEL-R 5-AXIS
COMPACT UNIT WITH SURESTOP COLLISION SENSOR
MANUAL PLASMA STRIPPING BEVEL UNIT FOR X-AXIS
- TURBO FLAME OR ALFA OXYFUEL TORCH
- GAS CUTTING WITH ADVANCED OXYFUEL TECHNOLOGY
USING OMNIFLOW AUTOMATED GAS REGULATION SYSTEM
- FT100 TORCH IGNITOR
- SENSOMAT PAN
- PLATE MARKERS
PLASMA
AIR SCRIBE
INK JET
TELESIS PINSTAMP
- DIGITAL VIDEO CAMERA
- LASER POINTER
- GLOBAL REPORTER
- TWO ZONED PROTECTION SYSTEM
- ENCLOSURE
- SLAG SCOOP OR SLAG PIT WITH BUCKET
- MANUAL CLEANING TABLE OR WATER TABLE
- PLASMA STATION OUTLET EQUIPMENT
- PLASMA AIR BOOSTER
- PROGRAMMING AND NESTING SOFTWARE
- DRILLING UP TO 3/8" DIAMETER
- OPERATOR GLARE SHIELD OR GLARE CURTAINS
- FLEX ZONE FOR PROCESSING MATERIAL OUTSIDE TABLE
- VERTICAL PIPE AND TUBE CUTTING
- PEDESTAL MOUNTED CONSOLE
- MESSER DUST COLLECTOR SYSTEMS
- SENTRY SERVICE PREVENTATIVE MAINTENANCE PROGRAM
- VISUAL SERVICE
ADDS SENSE OF HEIGHT TO TROUBLE SHOOTING PROCESS
