NEW DURMA AD-S 2060

Name: NEW DURMA AD-S 2060
Brand: DURMA
SKU: 351423
Availability: InStock

Safety note

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

Overview

Type:

Press Brakes

Manufacturer:

DURMA

Model:

ADS 2060

Stock #:

062114

Specifications

Dimensions	126 X 62 X 109	126 X 62 X 109
Weight	11,244	11,244

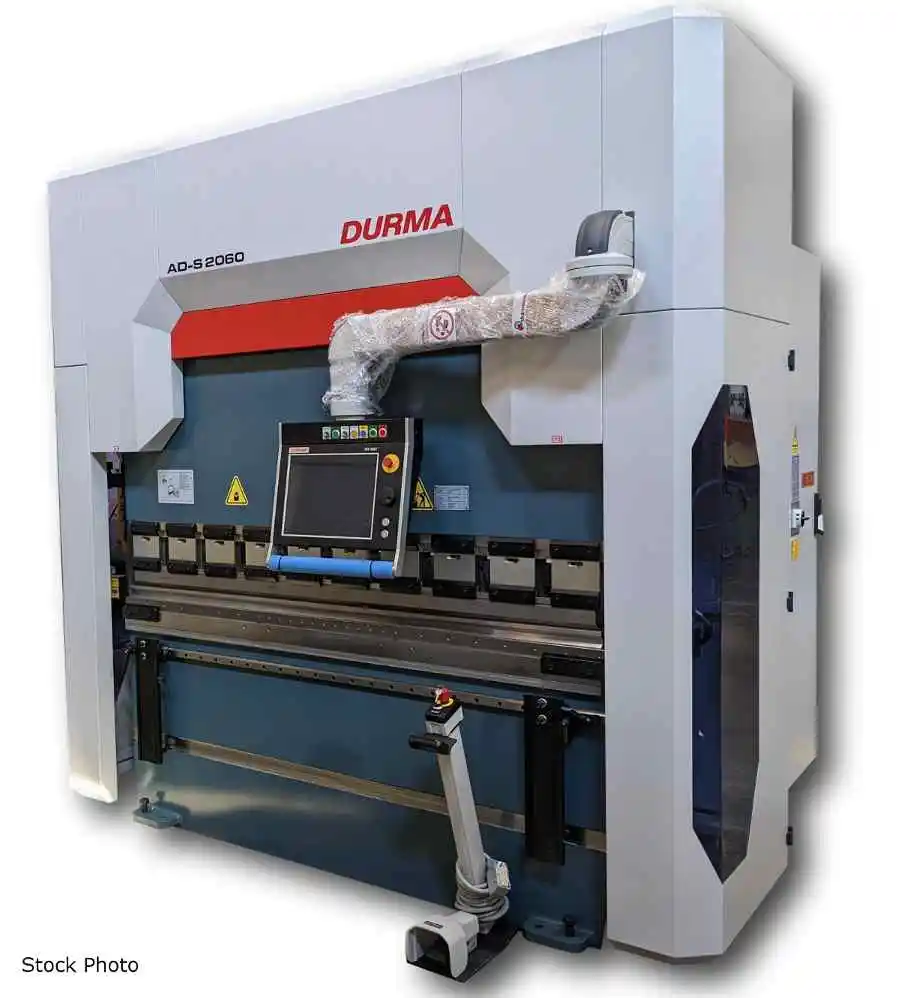

DURMA (NEW) MODEL AD-S 2060 CNC HYDRAULIC PRESS BRAKE W/DA-66T CONTROL

66.1 US TONS
6' 8" BENDING LENGTH
5' 6" BETWEEN COLUMNS
35.4" TABLE HEIGHT
4.1" TABLE WIDTH
10.4" STROKE
20.8" DAYLIGHT
16.1" THROAT DEPTH
473"/MINUTE Y-AXIS RAPID SPEED
24"/MINUTE Y-AXIS WORKING SPEED
260"/MINUTE Y-AXIS RETURN SPEED
0.0004" RAM REPEATABILITY
1200"/MINUTE BACKGAUGE (X-AXIS) WORKING SPEED
25.5" BACKGAUGE (X-AXIS) WORKING DISTANCE
827"/MINUTE R-AXIS WORKING SPEED
10 HP MOTOR

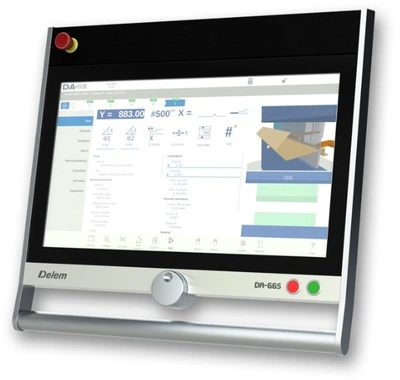

DELEM DA-66S CNC CONTROL
- 2D GRAPHICAL TOUCH SCREEN PROGRAMMING MODE
- 3D VISUALIZATION IN SIMULATION PRODUCTION
- 24" HIGH RESOLUTION COLOR TFT
- DELEM MODUSYS COMPATIBILITY
- USB PERIPHERAL INTERFACING
- USER SPECIFIC APPLICATION SUPPORT
- SENSOR BENDING AND CORRECTION INTERFACE
- PROFILE-S2D OFFLINE SOFTWARE

STANDARD FEATURES
- 4-AXIS CNC Y1-AXIS, Y2-AXIS, X-AXIS AND R-AXIS
- FIESSLER LC5 LASER FINGER SAFETY - MANUAL HT ADJUST
- SERVO DRIVEN BACKGAUGE SYSTEM (X-AXIS)
LINEAR GUIDE AND BALLSCREW DESIGN
- UNIVERSAL WEDGE STYLE PUNCH CLAMP
(FOR AMERICAN OR EUROPEAN STYLE PUNCHES)
- BOTTOM DIE RAIL ADAPTER
(FOR AMERICAN AND EUROPEAN STYLE DIES)
- PRECISION GROUND PUNCH/4-WAY DIE
TOP TOOL - ROLLERI P97.75.R08
BOTTOM TOOL - ROLLERI M.460R.85
- 2 SLIDING FRONT SUPPORT ARMS WITH T-SLOT,
TILTING STOP AND FULL LENGTH LINEAR GUIDE
- CNC CONTROLLED CROWNING
- 2 BACKGAUGE FINGER BLOCKS
- LED WORK LIGHT ON TOP RAM

OPTIONS AVAILABLE - PRICE ON REQUEST
- DELEM DA-69S CNC CONTROL PROFILE T3D SOFTWARE
- 4-AXIS BACKGAUGE X = 25.6" X, R, Z1, Z2
- 4 + 1 AXIS BG X, R, Z1, Z2 DELTA X +/- 4.9"
- LASER ANGLE MEASUREMENT SYSTEM
ADJUSTS PARAMETERS THROUGH BEND CYCLE
EXACT BENDING WITHOUT OPERATOR'S INTERVENTION
PROVIDES THE TARGET ANGLE WITH SINGLE BENDING
PREVENTS MATERIAL AND TIME LOSS
- HYDRAULIC AND PNEUMATIC TOOL CLAMPING SYSTEMS
- QUICK-RELEASE CLAMPING SYSTEM
- CENTRAL LUBRICATION SYSTEMS
- OIL COOLER / OIL HEATER
- ADDITIONAL BACKGAUGE FINGERS
- ADDITIONAL SLIDING FRONT SUPPORT ARMS
- DBEND 3D OFFLINE SOFTWARE PACKAGE
CAD/CAM IMPORTING AND SIMULATION
- DURMA BOTTOM DIE
