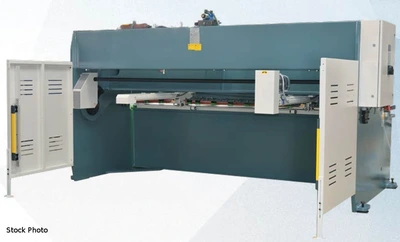

NEW DURMA SBT 4006

DURMA SBT 4006 HYDRAULIC SWING BEAM SHEAR

13' 5" (161.4") CUTTING LENGTH
0.25" CUTTING CAPACITY - MILD STEEL
0.157" CUTTING CAPACITY - STAINLESS STEEL
34" TABLE HEIGHT
177.5" TABLE LENGTH
22.8" TABLE WIDTH
2" THROAT
12 STROKES PER MINUTE
1 DEGREE 30' CUTTING ANGLE
20 HOLDDOWNS
42,000 LBF HOLDDOWN FORCE
39.37" BACKGAUGE WORKING DISTANCE
472"/MINUTE BACKGAUGE SPEED
53 GALLON OIL CAPACITY
20 HP MOTOR

STANDARD FEATURES
- HEAVY-DUTY ST 44 STEEL CONSTRUCTION STRESS
RELIEVED FRAME
- FLIP-UP FINGER GUARD - CE-NORM

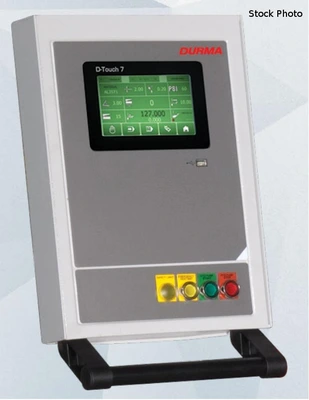

- USER-FRIENDLY D-TOUCH 7 CNC TOUCHSCREEN CONTROL
- MANUAL BLADE GAP ADJUSTMENT
- BALL-INTEGRATED FRONT TRANSFER TABLE
- BALLSCREW BACKGAUGE W/ AUTOMATIC SWING-UP
- SQUARING ARM WITH SCALE, T-SLOT TILTING STOP
- FRONT SUPPORT ARMS - QTY 3
- ILLUMINATION SHADOW LINE
- AUTOMATIC PRESSURE-ADJUSTED SOLID HOLDDOWNS
- SEGMENTED BLADES - GRADE K110 TOOL STEEL
2-SIDED TOP BLADES
4-SIDED BOTTOM BLADES
- FOOT PEDAL

OPTIONS AVAILABLE - PRICE ON REQUEST
- SQUARING ARM EXTENSION
- SUPPORT ARM EXTENSIONS
- ADDITIONAL SUPPORT ARMS
- MOTORIZED BLADE GAP ADJUSTMENT
- LASER CUTTING LINE
- SPARE BLADES - 1 SET - TOP BOTTOM BLADE
- STAINLESS BLADES - GRADE K340 TOOL STEEL
- LIGHT CURTAINS FOR FINGER PROTECTION
- PNEUMATIC THIN SHEET SUPPORT DURMA I
- PNEUMATIC THIN SHEET SUPPORT DURMA IV
- 13.78" THROAT DEPTH
- 19.69" THROAT DEPTH
- 49.2" BACKGAUGE WORKING DISTANCE
- ADDITIONAL SUPPORT ARMS
- OIL COOLANT
- OIL HEATER
- ADJUSTABLE ANGLE STOP 0-180 DEGREES
- CONTROL PANEL ON OPPOSITE POSITION
- AIR CONDITIONING FOR ELECTRICAL BOX

HYDRAULIC OIL REQUIRED
