| Dimensions | 87 X 64 X 84 | 87 X 64 X 84 |
| Weight | 3,200 | 3,200 |

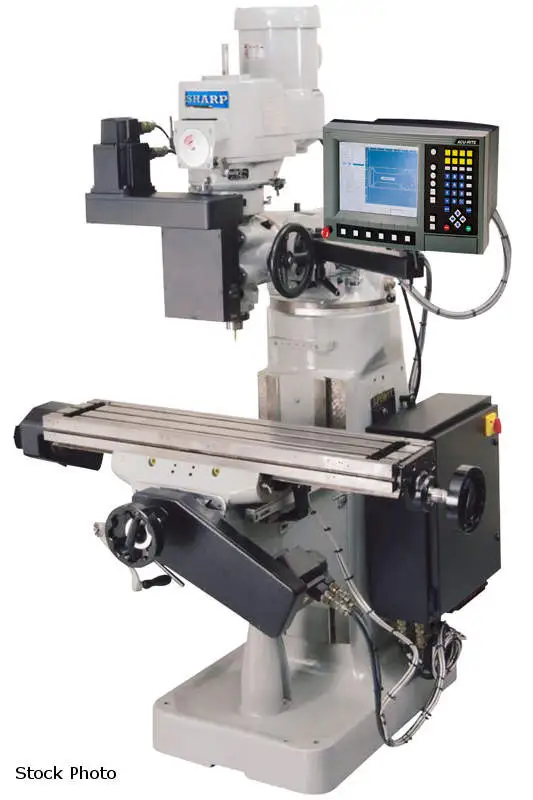

SHARP (NEW) MODEL LMV-MP3 VERTICAL KNEE MILL
CAPACITY
- 11" X 25" TABLE TRAVEL
- 12" RAM TRAVEL
- 5" QUILL TRAVEL (Z-AXIS)
- 16" KNEE TRAVEL
- 6-3/4" TO 18-1/2" SPINDLE TO COLUMN
- 2-1/8" TO 18" SPINDLE NOSE TO TABLE
TABLE
- 9" X 42" WORKING SURFACE
- 3 T-SLOTS - 5/8"
SPINDLE
- 3 HP MOTOR, 220/440 VOLT, 3 PHASE
- R8 NOSE TAPER
- 60-4,500 RPM VARIABLE SPEED DRIVE
- 0.0015, 0.003, 0.006 IPR QUILL FEED
- 360 DEGREE HEAD SWIVEL
- 45 DEGREE HEAD TILT (LEFT TO RIGHT)
- 45 DEGREE HEAD TILT (UP AND DOWN)
FEATURES

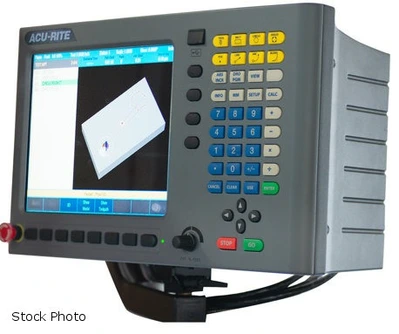

- ACU-RITE MILLPWR-G2 CONTROL
- 3 AXES - TABLE, SADDLE AND QUILL
- DIGITAL SERVO DRIVE SYSTEMS FOR X,Y, Z TRAVEL
- ABLE TO PERFORM 3-D CONTOUR WORK
- PRECISION-GROUND BALL SCREWS
- PRELOADED BALL NUT ASSEMBLIES
- 3 AXIS (TABLE, SADDLE, QUILL) DRO
- AUTOMATIC LUBRICATION SYSTEM
- SAFETY HAND WHEELS
STANDARD ACCESSORIES
- HARD-CHROME WAYS
- FRONT AND REAR WAY COVERS
- TOOL KIT
OPTIONAL ACCESSORIES - PRICE ON REQUEST
- DVS HEAD WIRED 220 VOLT
- 440 VOLT TRANSFORMER - 3 HP
- 6" KURT VISE WITH SWIVEL BASE
- R-8 COLLET SET
- CLAMPING KIT
- RIGHT ANGLE MILLING ATTACHMENT
- RISER BLOCK
- POWER DRAWBAR
- COOLANT SYSTEM WITH CHIP PAN AT BASE
- POWER DRAW BAR
- HALOGEN WORK LIGHT
Power: 220/440 (3-Phase)
