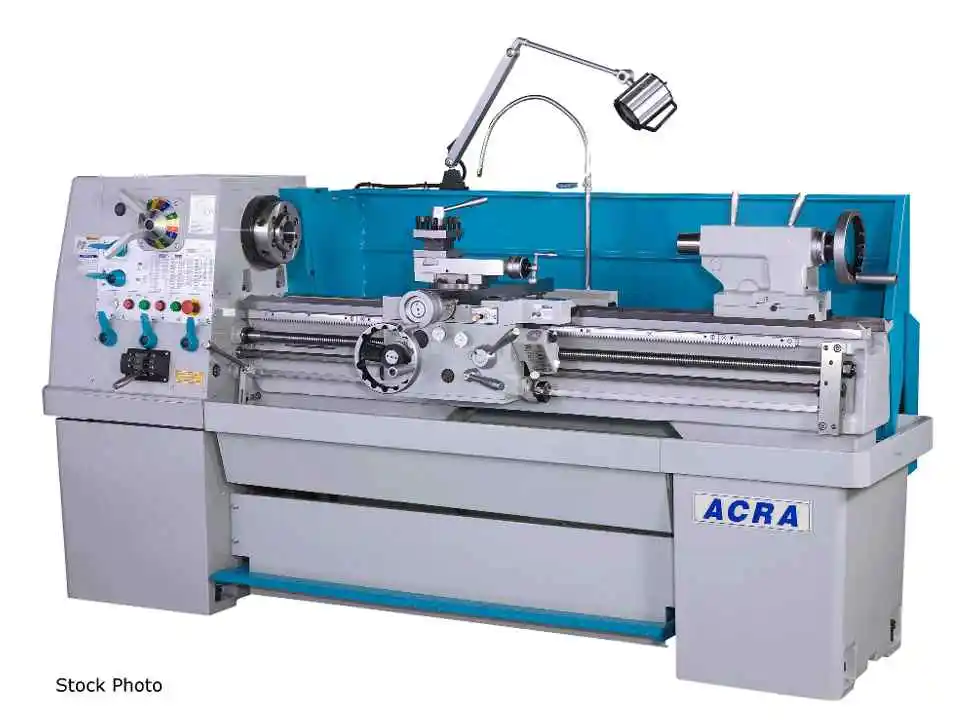

NEW ACRA 2180C

ACRA (NEW) MODEL 2180C PRECISION ENGINE LATHE WITH
CLUTCH

CAPACITY
- 21" SWING OVER BED
- 14" SWING OVER CROSS SIDE
- 30" SWING IN GAP
- 80" BETWEEN CENTERS
- 13-1/2" BED WIDTH

HEADSTOCK
- D1-8 SPINDLE NOSE
- 3-1/8" SPINDLE BORE
- 16 SPINDLE SPEEDS - 20 - 1600 RPM

CARRIAGE
- 11" CROSS SLIDE TRAVEL
- 5-3/8" COMPOUND SLIDE TRAVEL

THREADS AND FEEDS
- INCH THREADS: 2 - 72 TPI
- METRIC THREADS: 0.2 - 14 MM
- MODULE THREADS: 0.3 - 3.5
- DIAMETRICAL THREADS: 8 - 44
- LONGITUDINAL FEEDS: 0.0015" - 0.04"/REV
- CROSS FEEDS: 0.000075" - 0.02"/REV

TAILSTOCK
- 3" QUILL DIAMETER
- 7" QUILL TRAVEL
- MT#5 QUILL TAPER

12.5 HP, 3 PHASE, 230/460 VOLTS

STANDARD EQUIPMENT
- 12" 3-JAW CHUCK
- 16" 4-JAW CHUCK
- FULL-LENGTH SPLASH GUARD
- STEADY REST
- FOLLOW REST
- COOLANT SYSTEM
- FOOT BRAKE
- WORK LAMP
- GAP BED
- 4-POSITION SQUARE TOOL POST
- TOOL BOX WITH TOOLS
- MICRO BED STOP
- CHUCK GUARD

OPTIONS AVAILABLE - PRICE ON REQUEST
- FACE PLATE
- TAPER ATTACHMENT (AND INSTALLATION)
- COLLET CLOSERS
- DIGITAL READOUTS (AND INSTALLATION)
NEWALL, ACU-RITE, MITUTOYO, SONY, FAGOR
- 5-PIECE ALORIS TOOL POST SET
- QUICK-CHANGE TOOL HOLDER
- MT#5 LIVE CENTER
Power: 230/460 (3-Phase)
