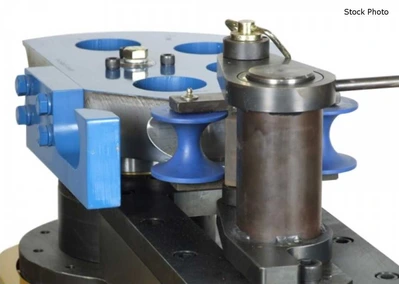

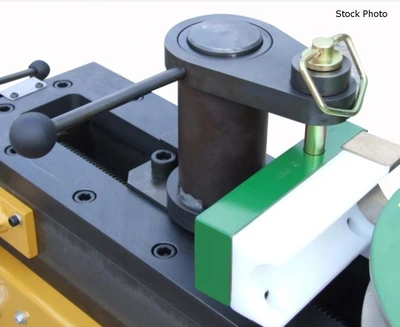

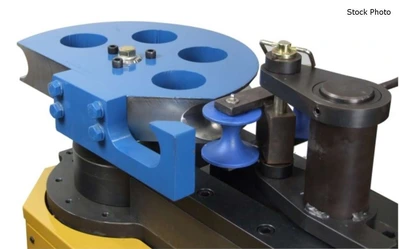

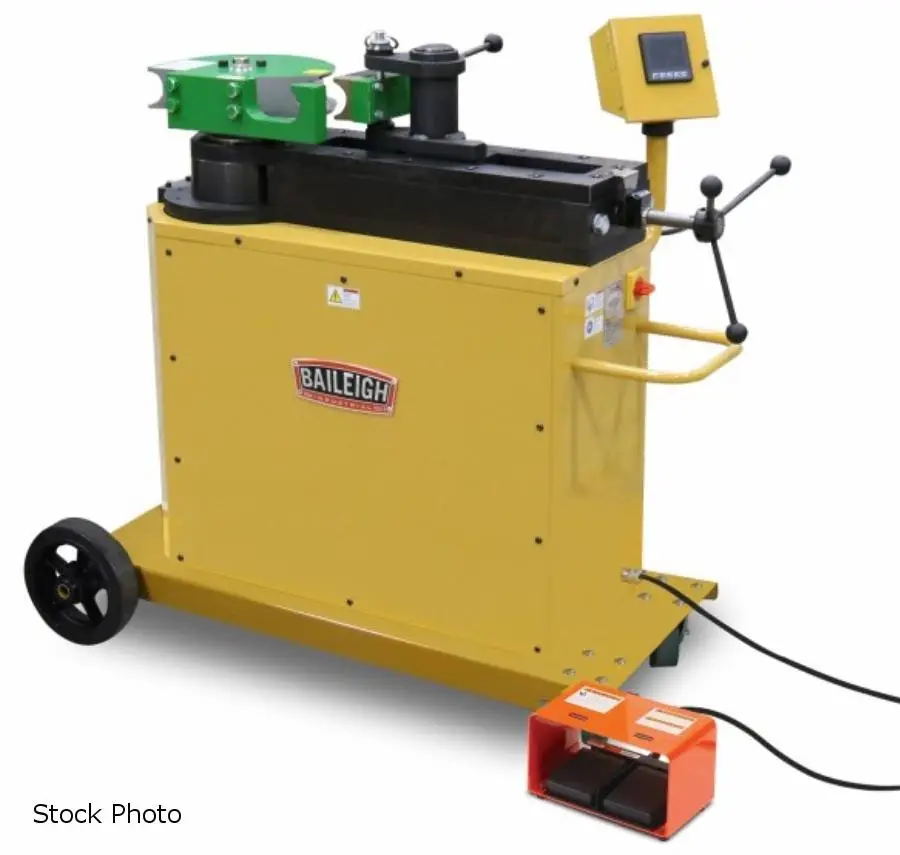

NEW BAILEIGH RDB-325

BAILEIGH (NEW) MODEL RDB-325 PROGRAMMABLE
PIPE BENDER

0.5" MINIMUM CLR
0.25" MINIMUM OD
1.25" MILD STEEL ROD
2" MILD STEEL PIPE SCHEDULE 80
3" MILD STEEL ROUND TUBE WALL
2" MILD STEEL SQUARE TUBE WALL
2" STAINLESS STEEL PIPE SCHEDULE 40
3" STAINLESS STEEL ROUND TUBE WALL
3" CHROMOLLY ROUND TUBE WALL
3" ALUMINUM ROUND TUBE WALL
16.5" MAXIMUM CENTER LINE RADIUS CLR
220 VOLTS
COMPUTER PROGRAMMABLE
PROGRAMMER HOLDS 170 JOBS WITH 10 BENDS PER JOB

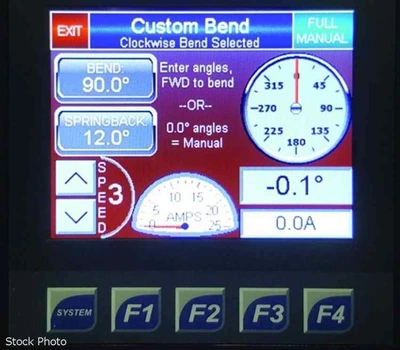

COLOR TOUCH SCREEN
CAN BEND 350 DEGREES LEFT AND RIGHT
- (WITH OPTIONAL TOOLING)
SIX BENDING SPEEDS
FAST, 10 SECOND TO 180 DEGREES
16.5 MAXIMUM CENTERLINE RADIUS
ACCEPTS OPTIONAL POSITIONING

OPTIONS AVAILABLE - PRICE ON REQUEST
- OVER 5,000 DIE SETS AVAILABLE
- INDEXING TABLE
Power: 220 (Single)
