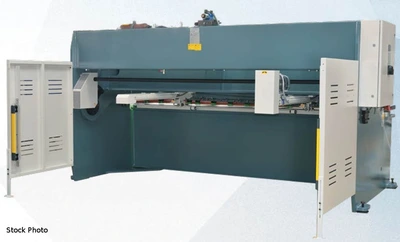

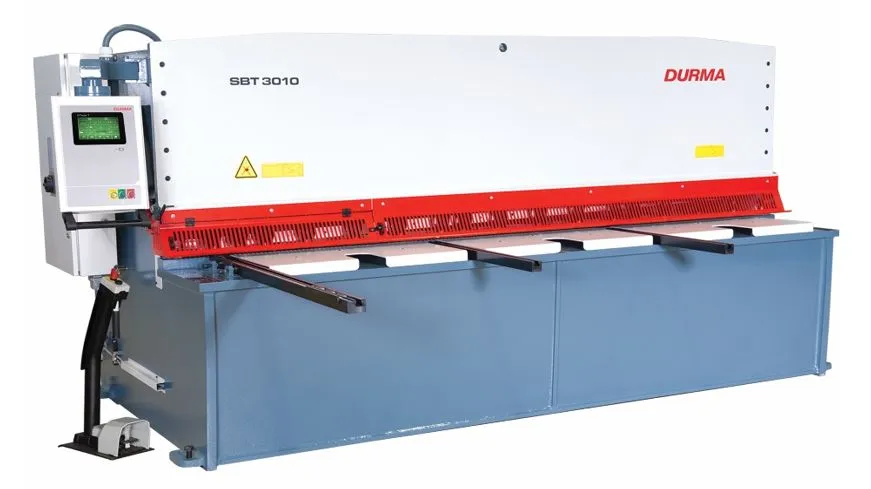

NEW DURMA SBT 3010

DURMA (NEW) MODEL SBT 3010 HYDRAULIC SWING
BEAM SHEAR

SPECIFICATIONS
- 122.04" CUTTING LENGTH
- 0.393" CUTTING CAPACITY - MILD STEEL
- 0.236" CUTTING CAPACITY - STAINLESS STEEL
- 1.96" THROAT
- 13 STROKES/MINUTE
- 19 STROKES/MINUTE WITH HIGH SPEED
- 1.5 DEGREE CUTING ANGLE
- 16 HOLDDOWNS
- 5,0000 HOLDDOWN FORCE
- 39.37" BACKGAUGE
- 1 HP BACKGUAGE
- 4.72"/SECOND BACKGUAGE
- 52 GALLON OIL CAPACITY
- 34.05" TABLE HEIGHT
- 22.83" TABLE WIDTH
- 163.35" TABLE LENGTH

FEATURES
- HEAVY ROBUST CONTRUCTION
- PROVEN RELIABLE DESIGN FRAME
- RIGID SWING-STYLE UPPER BEAM
- OPTIMIZED CUTTING ANGLE MINIMIZES DISTORTION
- OVERSIZED ROLLER BEARING GUIDES
- BOX-CONSTRUCTED SWING BEAM
- EASY, LOW-MAINTENACE OPERATON
- HEAVY DUTY ST44 STEEL CONSTUCTION
- STRESS RELIEVED FRAME

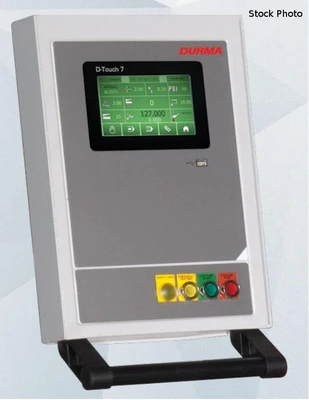

- CNC TOUCHSCREEN CONTROL UNIT
- SINGLE POINT, MANUAL BLADE GAP ADJUSTMENT
- BALL TRANSFER IN TABLE
- BALLSCREW BACKGAUGE WITH 39" TRAVEL
- 59" SQUARING ARM W/SCALE, T-SLOT TILTING STOP
- (2) 39" FRONT SUPPORT ARMS W/T-SLOT TILTING
- ILLUMATION AND SHADOW LINE
- ONE METER FLIP-UP FINGER GUARD
- AUTOMATIC PRESSURE ADJUSTED SOLID HOLD DOWNS
- FOOT PEDAL
- AUTOMATIC SWING-UP BACK GAUGE

OPTIONS AVAILABLE - PRICE ON REQUEST
- BACKGUAGE WITH 49" TRAVEL
- POWER BLADE GAP ADJUSTMENT
- 78" SQUARING ARM EXTENSION
- 59" SQUARING ARM FOR RIGHT SIDE
- ADJUSTABLE ANGLE STOP
- 13.77" THROAT
- 19.68" THROAT
- LASER CUTTING LINE
- PNEUMATIC THIN SHEET SUPPORT DEVICE
