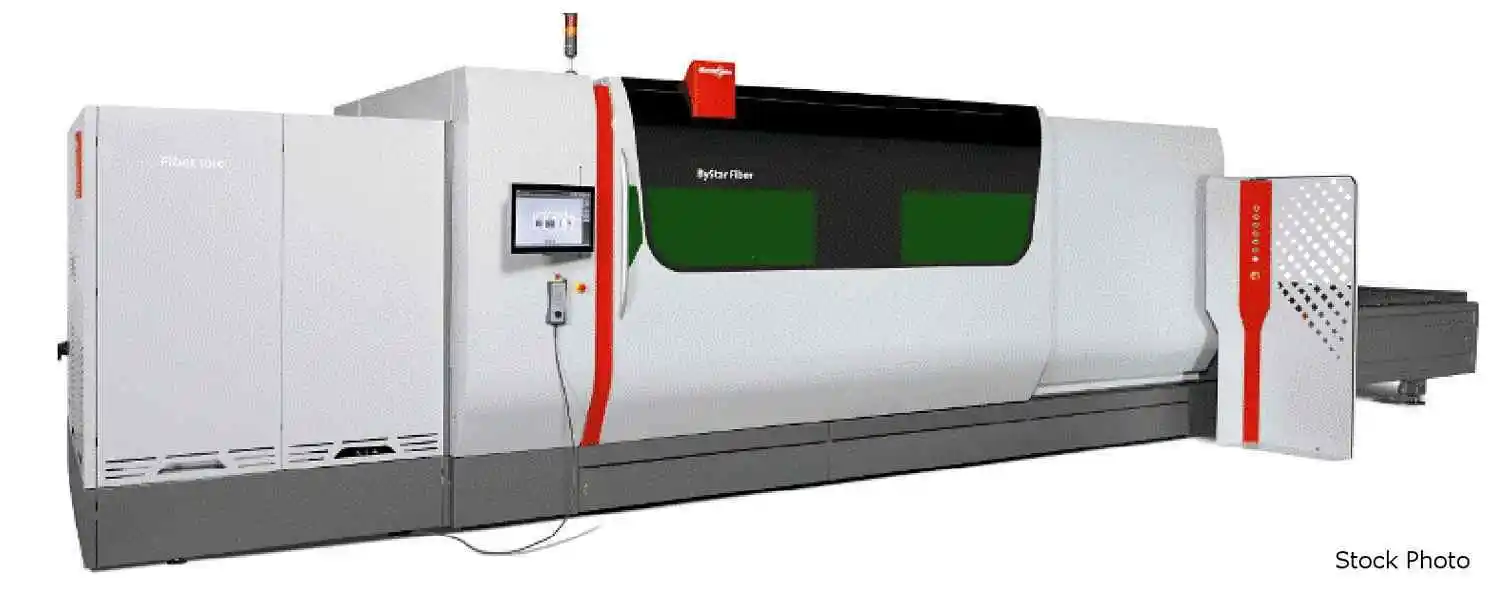

NEW BYSTRONIC BYSTAR FIBER 3015

BYSTRONIC (NEW) BYSTAR FIBER 3015 DYNAMIC EDITION
LASER

120" X NOMINAL SHEET SIZE
60" Y NOMINAL SHEET SIZE
122" X CUTTING AREA
62" Y CUTTING AREA
4" Z-AXIS TRAVEL
6650 IN/MIN MAXIMUM POSITIONING SPEED SIMULANEOUS
4700 IN/MAX MAXIMUM POSTITIONING SPEED PARALLEL
AXIS X/Y
+0,002" BILATERAL REPEATABILITY OF POSITIONING OF
ONE AXIS R (FOLLOWING ISO 230-2:2006)
+ 0,004 AVERAGED, BILATERALPOSITION DEVIATON OF ON
AXIS m (FOLLOWING ISO 230 - 2:2006)
+0.02" EDGE DETECTION ACCURACY
2420 LBS MAXIMUM WORKPIECE WEIGHT
4050 LBS MAXIMUN ALLOWED WORKPIECE WEIGHT ON BOTH
SHUTTLE TABLE
24 TABLE CHANGEOVER TIME
10,000 FIBER LASER
10,000 POWER
1,000-10,000 RANGE OF ADJUSTMENT
FIBER WAVELENGTH
1" WAVELENGTH STEEL (MAX. CUTTING SHEET THICKNESS
1.18" STAINLESS STEEL (MAX CUTTING SHEET THICKNESS
1.18" MAXIMUM ALUMINIUM (MAX CUTING SHEET
THICKNESS)
0.59" BRASS (MAX. SHEET THICKNESS)
0.47" COPPER (MAX. SHEET THICKNESS)
36 TOTAL ELECTRIC CONSUMPTION OF SYSTEM
(WITH EXHAUSR, CHILLER)

OPTIONS AVAILABLE - PRICE ON REQUEST
AUTOMATIC NOZZLE CHANGER WITH 64 POSITIONS
DETECTION EYE
DUST EXTRACTION SYSTEMS
TROPICAL VERISION FOR THE DUST EXTRACTION SYSTEM
COMPRESSED AIR CUTTING
ASSIST GAS KIT
PARTS AND CROSS CONVEYOR
COLLECTION BINS
POINTED COPPER GRATES

AUTOMATION OPTIONS - PRICE ON REQUEST
BYTRANS
BYTRANS 3015

BY TRANS EXTENDED
BY TRANS 3015 EXTENDED
BY LOADER 3015
BYTRSNLINE SHORT 2015
BYTRANSLINE 3015
BYTRANSCROSS 3015
BYTOWER 3015
