NEW SHARP 1440 F

SHARP (NEW) MODEL 1440F PRECISION LATHE

CAPACITY
- 14" SWING OVER BED
- 8-5/8" SWING OVER CROSS SLIDE
- 20 " SWING OVER GAP
- 8-1/2" WIDTH OF BED
- 9-1/4" GAP
- 1.5" CENTER HEIGHT FROM TOP OF COMPOUND
- 40" BETWEEN CENTERS

HEADSTOCK
- D1-4 CAMLOCK SPINDLE NOSE TYPE
- 1-1/2" SPINDLE BORE
- 16 RPM SPINDLE SPEEDS (45 - 1,800 RPM)

THREADS AND FEEDS
- (40) 0.0012 - 0.0294 IN/REV LONGITUDINAL FEEDS
- (40) 0.003-0.01 IN/REV CROSS FEEDS
- (40) 4-112 TPI THREADS
- (22) 0.45 - 7.5 MM METRIC THREADS
- 8 TPI LEADSCREW PITCH, 7/8" DIAMETER

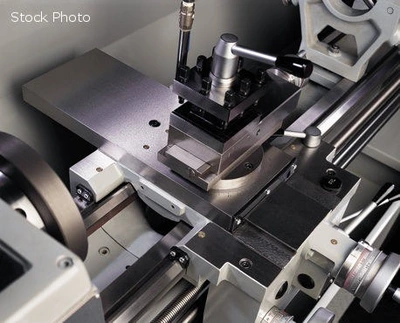

CARRIAGE
- 13-1/4" SADDLE WIDTH
- 11" APRON WIDTH
- 6-3/4" CROSS SLIDE WITH
- 7" CROSS SLIDE TRAVEL
- 4" COMPOUND REST TRAVEL
- 3-1/2" X 8 1/2" COMPOUND WIDTH X LENGTH

BED
- 66" LENGTH
- 8-1/8" WIDTH

TAILSTOCK
- 4 -1/2" QUILL TRAVEL (GRADUATED)
- 1-3/4" QUILL DIAMETER
- MT #3 QUILL TAPER

FEATURES
- GAP BED
- 3 HP 2-SPEED MOTOR
- HARDENED AND GROUND BED WAYS
- LARGE COMPOUND, TAILSTOCK AND APRON
- QUICK CHANGE ENCLOSED GEARBOX
- JOG BUTTON FOR EASY GEAR ENGAGEMENT AND
INCHING SPINDLE

STANDARD EQUIPMENT
- 8" 3-JAW CHUCK
- STEADY REST (1/4" - 3" CAPACITY)
- COOLANT SYSTEM
- 16 SPEEDS
- FULL LENGTH SPLASH GUARD
- 4-WAY TOOL POST (REMOVABLE GAP)
- 6" DIAMETER BACK PLATE
- TAILSTOCK
- BACK PLATE
- FOOT BREAK
- THREAD DIAL
- CENTER SLEEVE (MT 5 X 3)
- DEAD CENTERS (MT 3)
- TOOL KIT

OPTIONS AVAILABLE - PRICE ON REQUEST
- 4 - JAW CHUCK (8" OR 10")
- 3 - JAW CHUCK (8")
- CHUCK GUARD WITH LIMIT SWITCH (10" CHUCK)
- ROLLER JAWS FOR STEADY REST (3 PIECES)
- TAPER ATTACHMENT (FACTORY INSTALLED)
- QUICK CHANGE TOOL HOLDER
- LIVE CENTER
- DRILL CHUCK ARBOR
- 12" FACE PLATE (D1-4)
- 4-WAY CARRIAGE STOP
- HALOGEN WORK LIGHT
- 5C COLLECT SET (16 PIECES)
- 5C LEVEL COLLET CHUCK, ATLAS WORKHOLDER
- DIGITAL READOUT SYSTEM (FAGOR, ACU-RITE. NEWALL)
- 380, 440 OR 575 VOLT TRANSFORMER
Power: 220 V (3-Phase)
