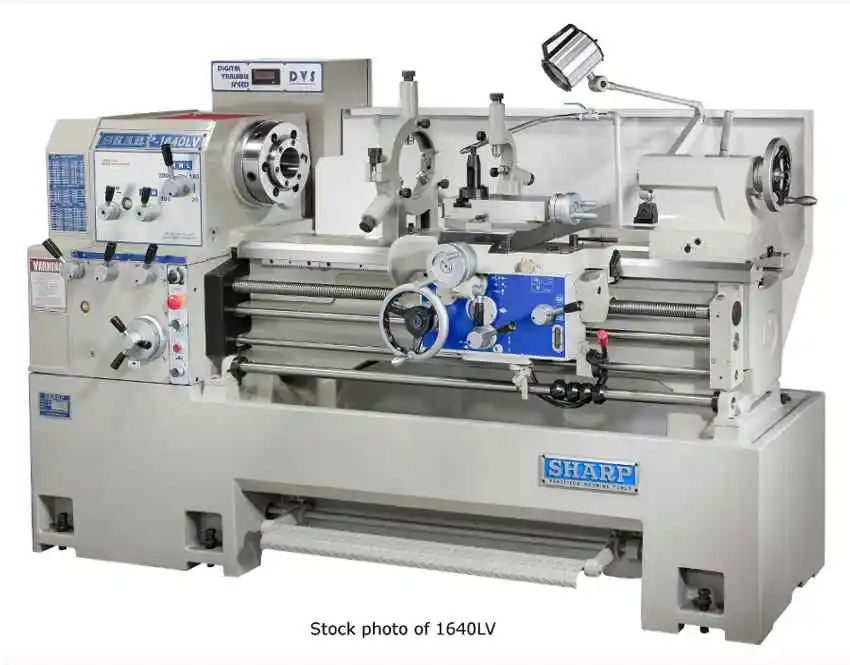

NEW SHARP 1660LV

SHARP (NEW) 1660LV PRECISION VARIABLE SPEED LATHE

CAPACITY
- 16" SWING OVER BED
- 8.75" SWING OVER CROSS SLIDE
- 24.38" SWING OVER GAP
- 11.75" BED WIDTH
- 9.75" GAP WIDTH
- 1.9" CENTER HEIGHT
- 60" BETWEEN CENTERS

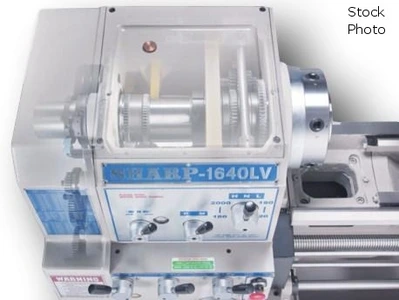

HEADSTOCK

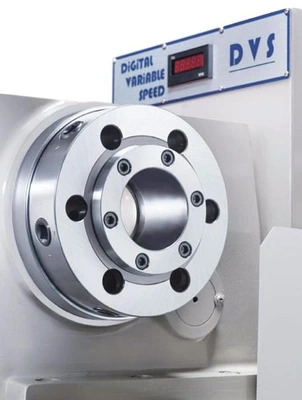

- D1-8 CAMLOCK SPINDLE NOSE
- 3.062" SPINDLE BORE
- MT #6 SPINDLE BORE TAPER
- MT #4 CENTER TAPER

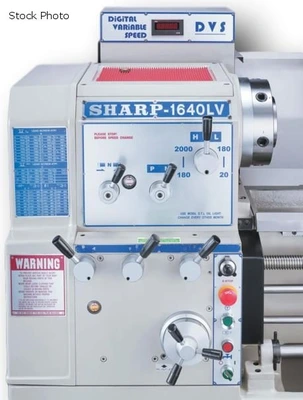

INFINITELY VARIABLE SPEED HEAD
- 20-170 RPM IN LOW SPEED
- 235-2000 RPM IN HIGH SPEED
THREADS AND FEEDS
- 18 LONGITUDINAL FEEDS 0.002"-0.032" IPR
- 12 CROSS FEEDS 0.0001" - 0.0094" IPR
- 40 INCH THREADS 4-56 TPI
- 17 METRIC MODULE THREADS 0.5-7 MM
- 36 DP THREADS 4-56 MM
- 4 TPI LEADSCREW PITCH, 1.375" DIAMETER
CARRIAGE
- 8.7" CROSS SLIDE TRAVEL
- 4.9" COMPOUND REST TRAVEL
- 4.5" COMPOUND WIDTH
BED
- 77" X 11.75"
TAILSTOCK
- 5" QUILL TRAVEL (GRADUATED)
- 2.25" QUILL DIAMETER
- MT #4 QUILL TAPER
7.5 HP MOTOR - 220 VOLT, SINGLE OR 3 PHASE

STANDARD EQUIPMENT/FEATURES
- DIGITAL VARIABLE SPEED HEAD
- 1-PIECE CAST MEEHANITE BED
- 10" BISON 3-JAW CHUCK
- 16" FACE PLATE
- 6" DIAMETER BACK PLATE
- .50" - 6" STEADY REST WITH BRONZE TIP
- .59" - 2.76" FOLLOW REST
- COOLANT SYSTEM
- FULL LENGTH SPLASH GUARD
- AMERICAN TOOL POST
- THREADING DIAL
- MT #5 CENTER SLEEVE - QTY 3
- MT #4 AND MT #5 DEAD CENTERS - QTY 1 EA
- HALOGEN WORK LIGHT
- LONGITUDINAL CARRIAGE STOPS
- TOOL KIT

OPTIONAL ACCESSORIES - PRICE ON REQUEST
- 10 HP MOTOR IN LIEU OF 7.5 HP
- 3-JAW CHUCKS - 12"
- 4-JAW CHUCKS - 16"
- STEADY REST WITH ROLLER JAWS
- FOLLOW REST
- MICROMETER CARRIAGE STOP
- CHUCK GUARD
- TOOL GUARD
- GUARD BEHIND SPINDLE
- DRILL CHUCK FOR TAILSTOCK
- LIVE CENTERS
- 4-WAY TOOL POST
- QUICK-CHANGE TOOL POST
- 5C COLLECT CLOSER
- TAPER ATTACHMENT
- DIGITAL READOUT SYSTEM
Power: 220/440 (3-Phase)
