NEW SHARP 1660L

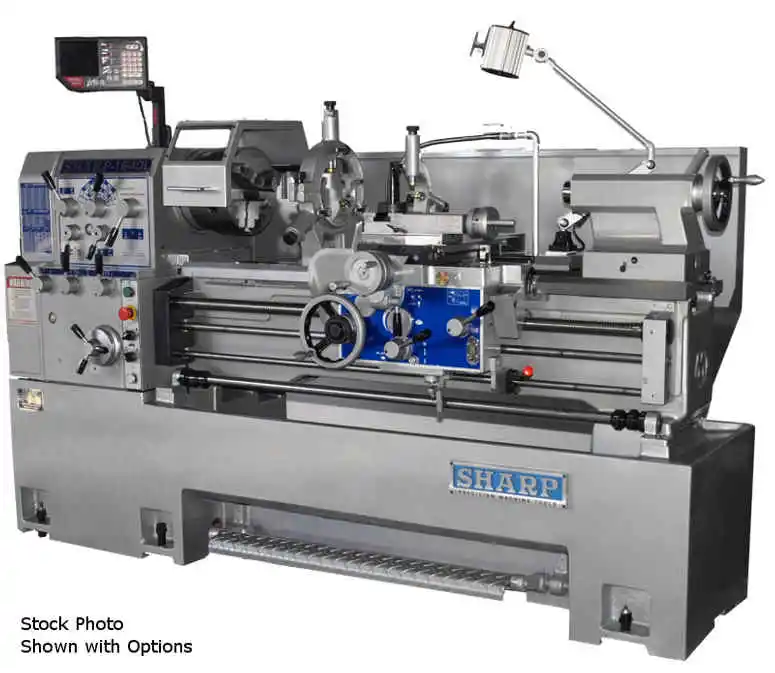

SHARP (NEW) MODEL 1660L PRECISION GEAR HEAD LATHE

CAPACITY
- 16" SWING OVER BED
- 8-3/4" SWING OVER CROSS SLIDE
- 24.38" SWING OVER GAP
- 11.75" BED
- 9.75" GAP
- 1.9" CENTER HEIGHT
- 60" BETWEEN CENTERS

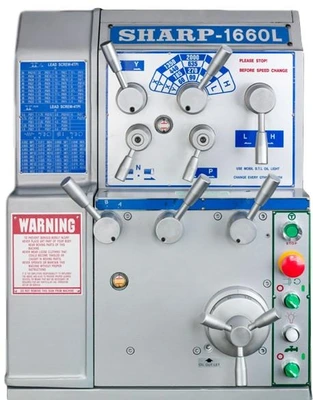

HEADSTOCK

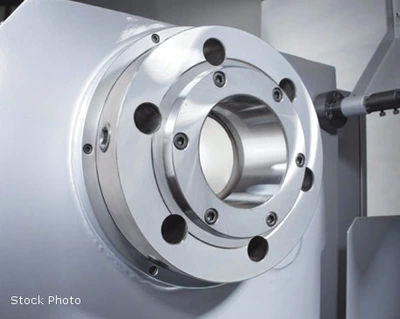

- D1-8 CAMLOCK, 3-1/16" HOLE
- 3.0625" SPINDLE BORE
- 12 SPINDLE SPEEDS 40 - 2,000 RPM
- MT #6 SPINDLE BORE TAPER
- MT #4 CENTER TAPER
THREADS AND FEEDS
- 18 LONGITUDINAL FEEDS 0.002"-0.032" IPR
- 12 CROSS FEEDS 0.001"-0.0094" IPR
- 40 INCH THREADS 4-56 TPI
- METRIC MODULE THREADS 0.5-7 MM
- 36 DP THREADS 4-56 MM
- 4 TPI LEADSCREW PITCH, 1-3/8" DIAMETER
CARRIAGE
- 8.7" CROSS SLIDE
- 4.9" COMPOUND REST TRAVEL
- 4.5" COMPOUND
BED
- 77" X 11.75"
TAILSTOCK
- 5" QUILL TRAVEL (GRADUATED)
- 2-1/4" QUILL DIAMETER
- MT #4 QUILL TAPER
7.5 HP MOTOR, 3 PHASE

STANDARD EQUIPMENT
- 10" 3-JAW CHUCK
- 16" FACE PLATE
- COOLANT SYSTEM
- HALOGEN WORK LIGHT
- 6" DIAMETER BACK PLATE
- THREADING DIAL

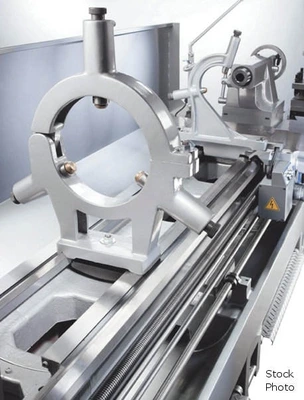

- 1/2" - 6" STEADY REST WITH BRONZE TIP
- AMERICAN TOOL POST
- FULL-LENGTH SPLASH GUARD
- FOLLOW REST (.59"-2.76")
- LONGITUDINAL CARRIAGE STOPS
- MT 5 X 3 CENTER SLEEVE
- MT 4 X 1, MT 5 X 1 DEAD CENTERS
- 220 OR 440 VOLT
- TAIL STOCK AND TOOL KIT

FEATURES
- DIRECT SELECTION FOR INCH/METRIC THREADS
- 1-PIECE CAST MEEHANITE BED

OPTIONAL ACCESSORIES - PRICE ON REQUEST
- 3-JAW CHUCKS - 12"
- 4-JAW CHUCKS - 16"
- CHUCK GUARD
- TOOL GUARD
- LEAD SCREW GUARD
- GUARD BEHIND SPINDLE
- UL/CSA SWITCH BOARD IN LIEU OF UL/CSA-16
- MICROMETER CARRIAGE STOP
- TOOLPOSTS
- TAPER ATTACHMENT
- ROLLER JAWS FOR STEADY REST
- ADDITIONAL STEADY RESTS
- DRILL AND ARBOR
- LIVE CENTERS
- COLLETS
- TRANSFORMER FOR 570, 440, 380 OR VOLTS
- DIGITAL READ OUT SYSTEMS
FAGOR 20I OR 40I
ACU-RITE 203 S
NEWALL NMS
Power: 230/460 (3-Phase)
