NEW SHARP 1640LV

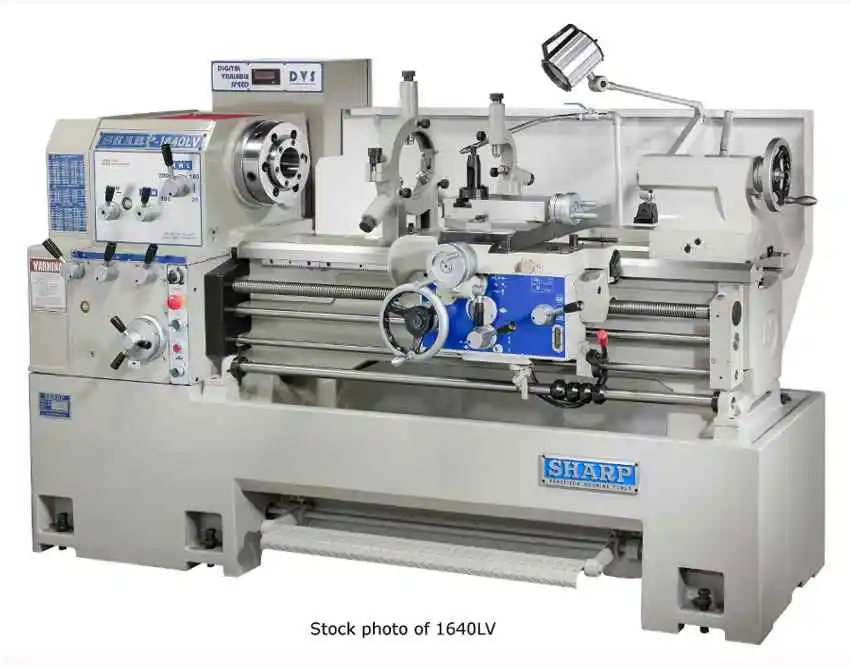

SHARP (NEW) MODEL 1640LV PRECISION GEAR HEAD LATHE

CAPACITY
- DVS - DIGITAL VARIABLE SPEED (20-2,000 RPM)
- 16" SWING OVER BED
- 8-3/4" SWING OVER CROSS SLIDE
- 9-1/2" TRAVEL OF CROSS SLIDE
- 24-3/8" SWING OVER GAP
- 11.75" WIDTH OF BED
- 9.75" GAP
- 1.9" CENTER HEIGHT FROM TOP TO COMPOUND
- 40" DISTANCE BETWEEN CENTERS

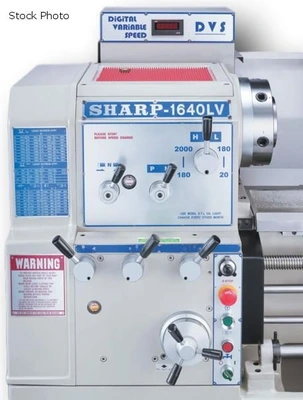

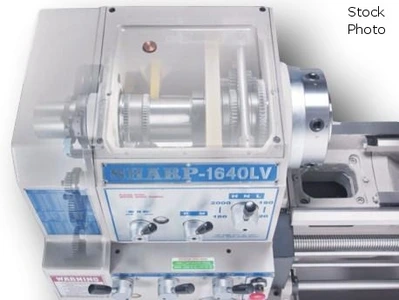

HEADSTOCK

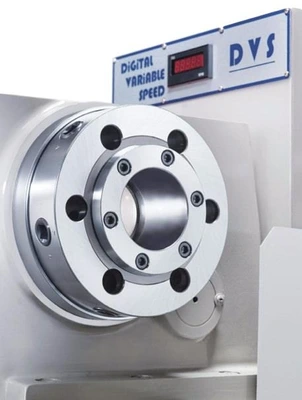

- D1-8 CAMLOCK SPINDLE NOSE TYPE
- 3.14" SPINDLE BORE
- 12 SPINDLE SPEEDS 20-2,000 RPM
- MT #6 SPINDLE BORE TAPER
- MT #4 CENTER TAPER
THREADS AND FEEDS
- 18 LONGITUDINAL FEEDS 0.002"-0.032" IPR
- CROSS FEEDS 0.001"-0.0094" IPR
- 40 INCH THREADS 4-56 TPI
- METRIC MODULE THREADS 0.5-7 MM
- 36 DP THREADS 4-56 MM
- 4 TPI LEADSCREW PITCH, 1-3/8" DIAMETER
CARRIAGE
- 4.9" COMPOUND REST TRAVEL
- 4.5" COMPOUND WIDTH
BED
- 59" X 11.75"
TAILSTOCK
- 5" QUILL TRAVEL (GRADUATED)
- 2-1/4" QUILL DIAMETER
- MT #4 QUILL TAPER
7.5 HP MOTOR, 230 VOLTS, SINGLE OR 3 PHASE

STANDARD EQUIPMENT
- DIGITAL VARIABLE SPEED (DVS) HEAD STOCK
- 16" FACE PLATE
- .4" - 6" STEADY REST W/BRONZE TIP
- COOLANT SYSTEM
- FULL LENGTH SPLASH GAURD
- AMERICAN TOOL POST
- 6" DIAMETER BACK PLATE
- THREADING DIAL
- CENTER SLEEVE (MT #5 X 3)
- DEAD CENTERS (MT #4 X1, MT #5X1)
- FOLLOW REST (0.59" - 2.76")
- HALOGEN WORK LIGHT
- LONGITUDINAL CARRAIGE STOPS
- TAIL STOCK AND TOOL KIT INCLUDES -
-- MACHINE MANUAL
-- HALF NUT WRENCH
-- WRENCH 17M, 19M
-- SET OF 6 ALLEN WRENCHES
-- PHILLIPS SCREWDRIVER
-- FLAT HEAD SCREWDRIVER
-- OIL CAN
-- GREASE GUN
-- REAR WAY COVER BRACKET
-- 2 SETS FO DEAD CENTERS
-- PIN FOR INDICATOR
--- CAN OF PAINT

FEATURES
- D1-8 CAMLOCK, 3" HOLE,
- DIRECT SELECTIONS FOR INCH/METRIC THREADS
- ONE PIENCE CAST MEEHANITE BED
- 7-1/2 HP SPINDLE MOTOR
- DIGITAL VARIABLE SPEED (DVS)

OPTION AVAILABLE - PRICE ON REQUEST
- 460 VOLT TRANSFORMER
- 4-JAW 12" CHUCK (QU)
- 3-JAW CHUCK 10" (BISON)
- 3-JAW CHUCK 12" (BISON)
- 4-JAW CHUCK 12" (BISON)
- CHUCK GUARD (FACTORY ORDER ONLY)
-- INSTALLATION OF CHUCK GUARD
- TOOL GUARD (FACTORY ORDER ONLY)
- LEAD SCREW GUARD (FACTORY ORDER ONLY)
- GUARD BEHIND SPINDLE (FACTORY ORDER ONLY)
- UL/CSA SWITCH BOARD/UL MOTOR/CSA PUMP INSTEAD OF REGULAR VERSION
UL/CSA-16 (FACTORY ORDER ONLY)
-- NOTE: SHARP DOES NOT PROVIDE UL/CSA STICKERS ON THE MACHINES, BUYER
NEED TO CONTRACT A LOCAL AGENCY TO REVIEW THE ISSUES, THEN PUT
"COMPLIANCE " STICKERS ON THE MACHINES AFTERWARDS.
Power: 220 (3-Phase)
