| Weight | 3,600 | 3,600 |

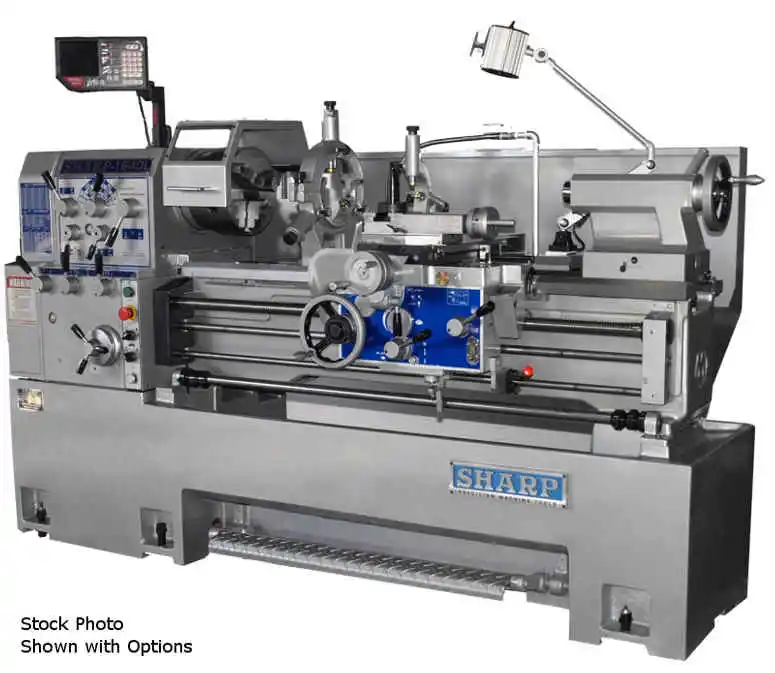

SHARP (NEW) MODEL 1640L PRECISION GEAR HEAD LATHE
CAPACITY
- 16" SWING OVER BED
- 8-3/4" SWING OVER CROSS SLIDE
- 24-3/8" SWING OVER GAP
- 9.75" GAP
- 1.9" CENTER HEIGHT FROM TOP OF COMPOUND
- 40" BETWEEN CENTERS

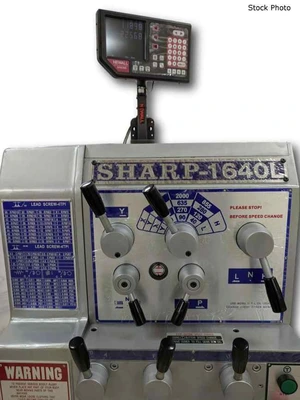

HEADSTOCK
- D1-8 CAMLOCK SPINDLE NOSE
- 3-1/16" SPINDLE BORE
- 12 SPINDLE SPEEDS 40-2,000
- MT #6 SPINDLE BORE TAPER
- MT #4 CENTER TAPER
THREADS AND FEEDS
- 18 LONGITUDINAL FEEDS 0.002"-0.032" IPR
- 12 CROSS FEEDS 0.001"-0.0094" IPR
- 36 INCH THREADS 4-56 TPI
- 17 METRIC MODULE THREADS 0.5-7 MM
- 36 DP THREADS 4-56 MM
- 4 TPI LEADSCREW PITCH, 1-3/8" DIAMETER

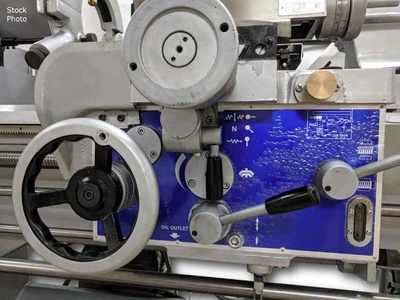

CARRIAGE
- 8.7" CROSS SLIDE TRAVEL
- 4.9" COMPOUND REST TRAVEL
- 4.5" COMPOUND WIDTH
BED
- 59" X 11.75"
TAILSTOCK
- 5" QUILL TRAVEL (GRADUATED)
- 2-1/4" QUILL DIAMETER
- MT #4 QUILL TAPER
7.5 HP MOTOR, 3 PHASE
STANDARD EQUIPMENT
- BISON 12" 3-JAW CHUCK
- BISON 12" 4-JAW CHUCK
- COOLANT SYSTEM
- HALOGEN WORK LIGHT
- 16" FACE PLATE

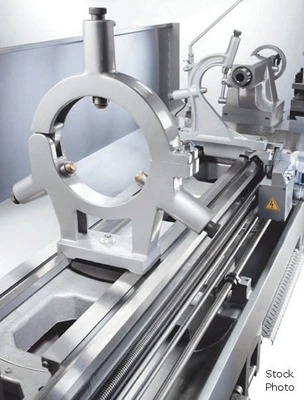

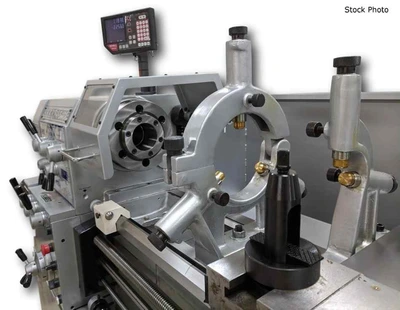

- 1/2" - 6" STEADY REST WITH BRONZE TIP
- AMERICAN TOOL POST
- FULL-LENGTH SPLASH GUARD
- FOLLOW REST
- LONGITUDINAL CARRIAGE STOPS
- TOOL KIT
FEATURES
- EASY SELECTION FOR INCH/METRIC THREADS
- 1-PIECE CAST MEEHANITE BED
OPTIONS AVAILABLE - PRICE ON REQUEST
- 3-JAW CHUCKS - 12"
- 4-JAW CHUCKS - 16"
- CHUCK GUARD
- MICROMETER CARRIAGE STOP
- TAPER ATTACHMENT
- LIVE CENTERS
- 5C COLLETS CLOSER
- DIGITAL READOUT SYSTEM
- QUICK-CHANGE TOOL HOLDER
- 4-WAY TOOL POST
- DRILL CHUCK
- MICROMETER CARRIAGE STOP
- FOLLOW REST
Power: 220/440 (3-Phase)
