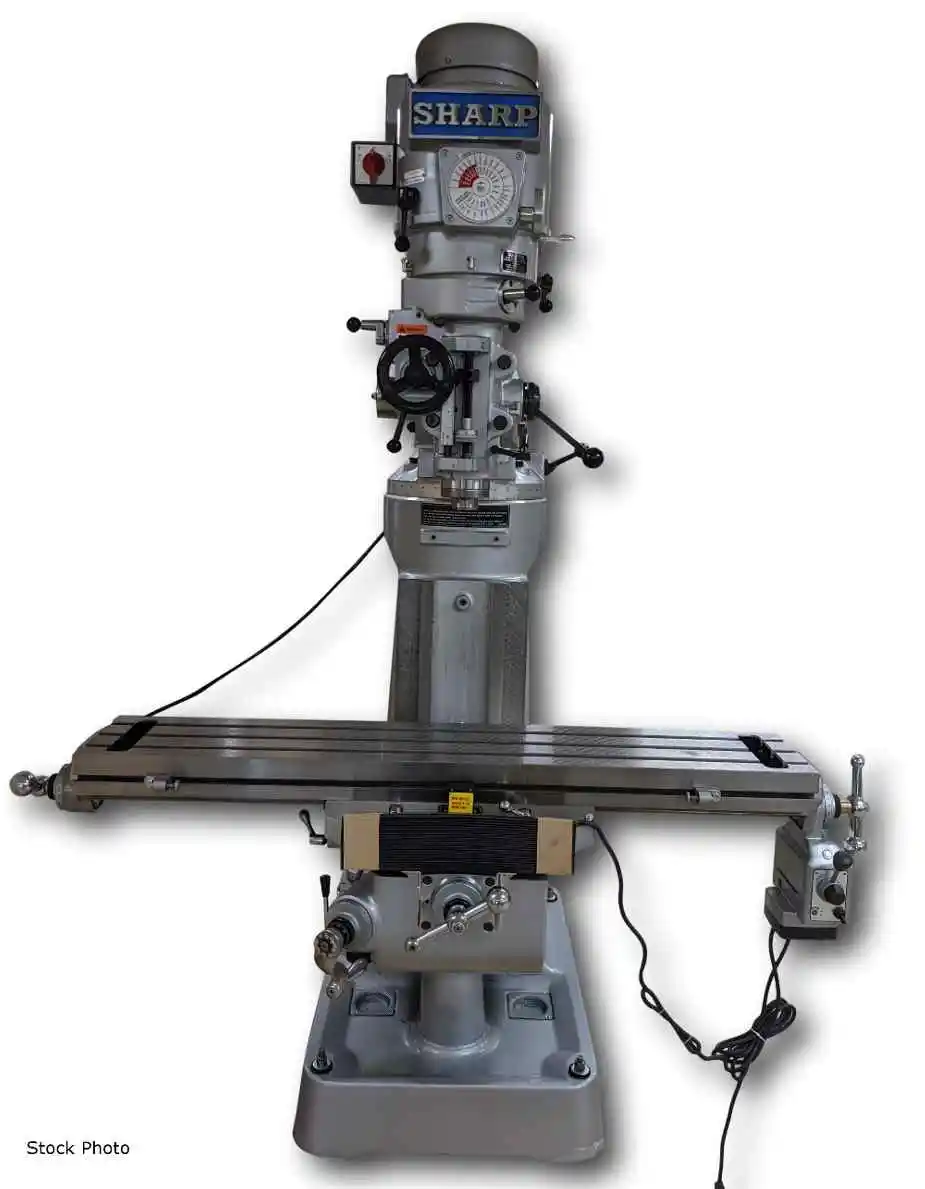

NEW SHARP LMV-50

SHARP (NEW) MODEL LMV-50 VERTICAL MILL

TABLE
- 9" X 50" WORKING SURFACE
- (3) 5/8" T-SLOTS
CAPACITY
- 37" X, 12" Y, 5" Z, 12" RAM, 16" KNEE TRAVEL
- 6-3/4" TO 18-1/2" FROM SPINDLE TO COLUMN
- 2-1/8" TO 18" FROM SPINDLE NOSE TO TABLE

SPINDLE
- 3 HP MOTOR
- R-8 NOSE TAPER

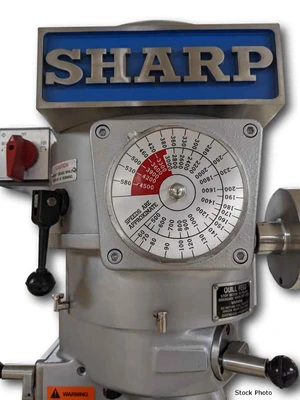

- 60-4500 RPM VARIABLE SPEED DRIVE
- 0.0015, 0.003, 0.006 IPR QUILL FEED

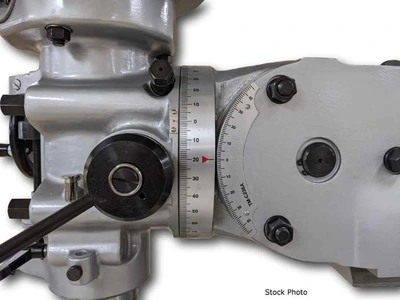

- 360 DEGREE HEAD SWIVELS
- 45 DEGREE HEAD TILT (LEFT TO RIGHT)
- 45 DEGREE HEAD TILT (UP AND DOWN)

FEATURES
- DUAL COOLING FANS
- MEEHANITE CASTING
- CHROMED WAYS
- SELF-LUBRICATING MOTOR SHAFT
- ABEC-7 SUPER PRECISION BEARINGS

STANDARD EQUIPMENT
- HARD-CHROMED WAYS AND GIBBS
- PRECISION GROUND AND FLAKED TABLE
- DOUBLE NUT BACKLASH SYSTEM
- CUTLER HAMMER ON/OFF SWITCH
- FRONT AND REAR RUBBER WAY COVERS
- ONE SHOT LUBE SYSTEM (X, Y, Z AXES)
- TOOL KIT

OPTIONS AVAILABLE - PRICE ON REQUEST
- AUTO LUBE SYSTEM
- 6" KURT VISE WITH SWIVEL BASE
- POWER FEEDS FOR TABLE, SADDLE, AND KNEE
- RIGHT ANGLE MILLING ATTACHMENT WITH ARBOR
- DRILL CHUCK AND DRILL ARBOR
- 6" RISER BLOCK
- COOLANT SYSTEM WITH CHIP PAN
- POWER DRAW BAR
- R-8 COLLECT SET (11 PIECES)
- CLAMPING KIT (52 PIECES / STEEL RACK)
- HALOGEN WORK LIGHT
- CE MARK
- TRANSFORMER (380 OR 575 VOLTS)
- UL COMPONENTS UPGRADE WITH ELECTRICAL BOX
- DIGITAL READOUT SYSTEMS
Power: 220/440 (3-Phase)
