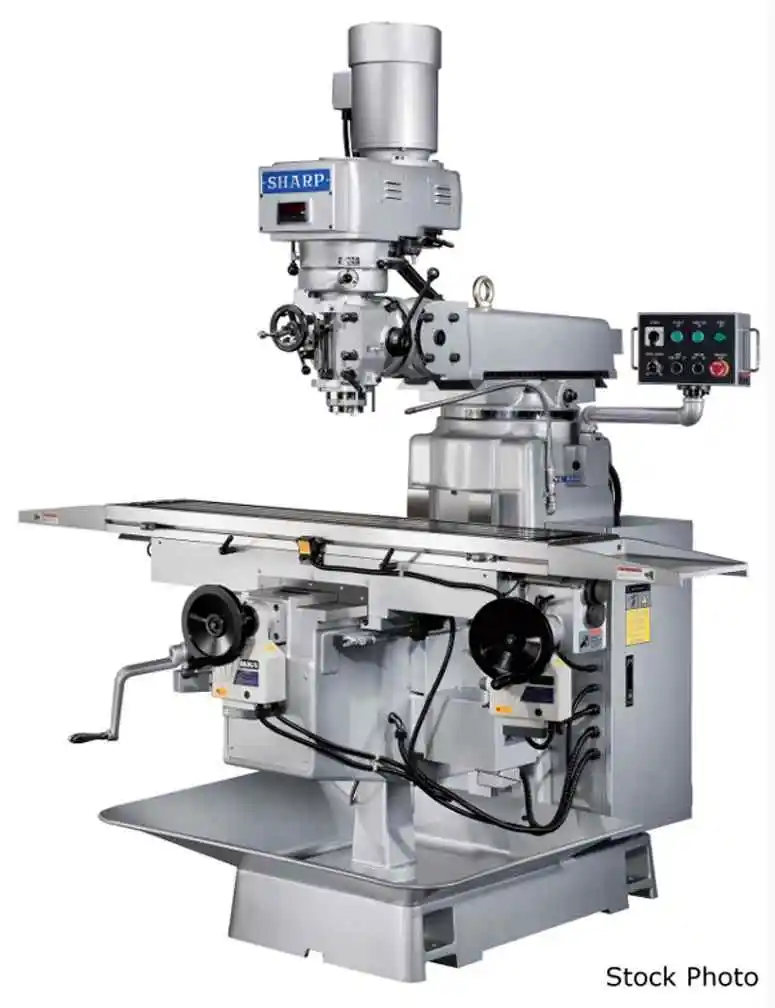

NEW SHARP V-1

SHARP (NEW) MODEL V-1 HEAVY-DUTY VERTICAL KNEE
MILL

TABLE
- 58" X 12"
- (3) 5/8" X 2-1/2" T-SLOTS

CAPACITY
- 40" TABLE X 16" CROSS X 16" VERTICAL TRAVEL
- VARIABLE SPEED TABLE SADDLE POWER FEED
- 37.5 IPM RAPID TRAVERSE

SPINDLE
- NST 40 TAPER
- 70 - 4,000 RPM VARIABLE SPEED DRIVE
- 5" QUILL TRAVEL
- 0.0015, 0.003 AND 0.006 IPR QUILL FEED
- 4-1/8" QUILL DIAMETER
- 90 DEGREE HEAD TILT (LEFT TO RIGHT)
- 45 DEGREE HEAD TILT (UP AND DOWN)
- 2" - 18" SPINDLE GAGE LINE TO TABLE TOP
- 17-3/4" RAM TRAVEL
- 5 HP MOTOR, 220 VOLTS

STANDARD EQUIPMENT
- HARDENED AND GROUND BOX WAYS
- POWER FEED TABLE AND SADDLE
- KNEE ELEVATION SYSTEM
- COOLANY SYSTEM
- DRAW BAR
- FRONT AND REAR RUBBER WAY COVER
- ONE-SHOT LUBE SYSTEM
- TOOL KIT

OPTIONS AVAILABLE - PRICE ON REQUEST
- DIGITAL READOUT SYSTEMS
- POWER DRAWBAR
- 6" RISER BLOCK
- HALOGEN WORK LIGHT
- DRILL CHUCK WITH ARBOR R-40
- MILLING VISE
- TRANSFORMER FOR 440 VOLT
Power: 220/440 (3-Phase)
