NEW PAT MOONEY PMI-20

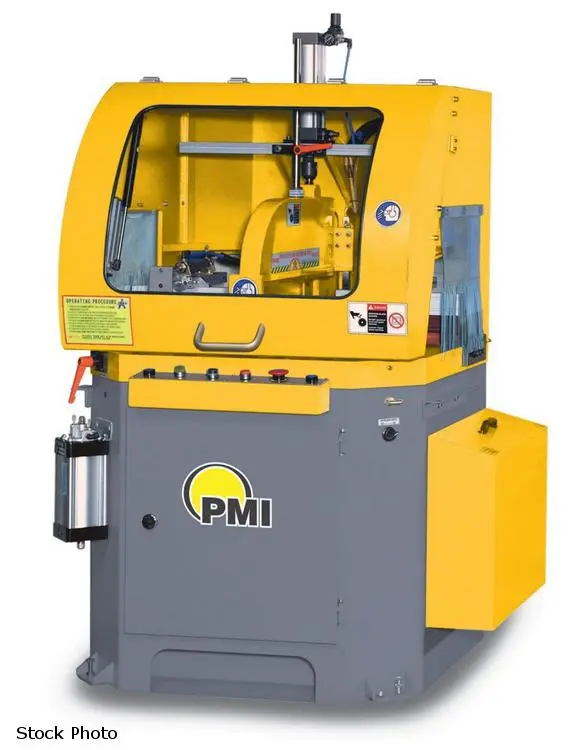

PAT MOONEY (NEW) MODEL PMI - 20 SEMI-AUTOMATIC
DOUBLE MITER UPCUT COLD SAW

DESIGNED TO SAW ALUMINUM PROFILES QUICKLY,
ACCURATELY AND WITH A BURR-FREE MIRROR FINISH

DOUBLE MITER - 55 DEGREES TO THE LEFT RIGHT
2800 RPM SAW BLADE SPEED
20" X 1" BORE SAW BLADE
35-5/8" X 35-5/8" TABLE
33-3/32" WORK HEIGHT
5.9" SAWING HEIGHT
11" SAWING WIDTH
7.5 HP

CUTTING CAPACITY AT 90 DEGREES
- 5.9" ROUND OR SQUARE
- 5.5" X 7.8" RECTANGLE
- 5.9" X 4.7" RECTANGLE
- 0.39" X 13.18" RECTANGLE

CUTTING CAPACITY AT 45 DEGREES
- 5.5" ROUND OR SQUARE
- 5.9" X 3.5" RECTANGLE
- 5.5" X 5.1" RECTANGLE
- 0.39" X 9.4" RECTANGLE

MACHINE FEATURES
- UPCUT DESIGN AND SAW BLADE CHAMBER
FULLY ENCLOSED SAW BLADE CHAMBER
BLADE TRAVELS UP THROUGH THE WORK PIECE
- PRECISION-GROUND WORK TABlE WITH CHROMATE
SURFACE COATING PREVENTS MARRING OF WORK PIECE
- PNEUMATIC MATERIAL CLAMPING SYSTEM
ADJUSTABLE CLAMPING PRESSURE
VERTICAL AND HORIZONTAL CLAMPING
- SAW BLADE FEED CONTROLLED BY PNEUMATIC CYLINDER
FULL CONTROL OF FEED RATE
- PRECISE MICRO-DRIP BLADE LUBRICATION SYSTEM

SAFETY FEATURES
- MACHINE ENCLOSURE MONITORED BY LIMIT SWITCH
- COVER MUST BE CLOSED FOR SAW TO CYCLE
- TWO-HAND CYCLE START ACTIVATION
- LIMIT SWITCH SHUTS DOWN MACHINE IF OPEN DOOR

EQUIPPED WITH
- TOOL KIT
- KANEFUSA 120T SAW BLADE
- OPERATING MANUAL

OPTIONS AVAILABLE - PRICE ON REQUEST
- 3 HP CHIP COLLECTOR
- KANEFUSA 120T SAW BLADE
- DIGITAL ANGLE DISPLAY
- 5' INFEED/OUTFEED CONVEYOR

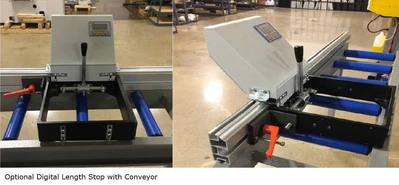

- DIGITAL LENGTH STOP WITH IN/OUTFEED CONVEYOR
5', 10', 15' OR 20'
USES MAGNETIC SCALE WITH LCD DISPLAY
LCD DISPLAY SHOWS UP TO 3 DECIMAL PLACES (0.000)
FINE ADJUSTMENT HANDLE
