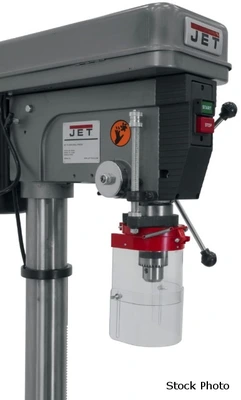

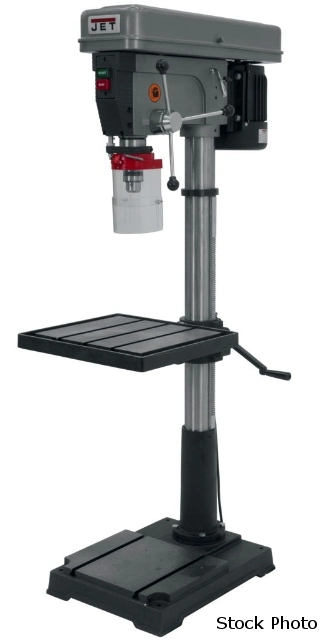

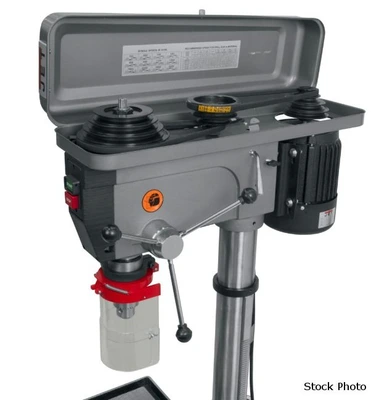

NEW JET J-2550

JET (NEW) MODEL J-2550 20" FLOOR MODEL DRILL PRESS

20" TO CENTER OF CIRCLE
5/8" MILD STEEL CAPACITY
3/4" CAST IRON CAPACITY
10" COLUMN TO SPINDLE
12 SPINDLE SPEEDS
- 150, 260, 300, 440, 490, 540, 1,150, 1,550
- 1,840, 2,220, 2,950, 4,200
3-5/8" COLUMN DIAMETER
MT-3 SPINDLE TAPER
4-3/4" SPINDLE TRAVEL
43-1/2" SPINDLE TO BASE
24" SPINDLE TO TABLE
18-11/16" X 16-3/4" TABLE SIZE
21-1/2" TABLE TRAVEL
THREE 1/2 T-SLOTS
4" T-SLOT CENTERS
66 LBS WORK TABLE WEIGHT CAPACITY
22-3/4" X 17-3/4" BASE
TWO 5/8" BASE SLOTS
1 HP MOTOR, 115/230 VOLT, 1 PHASE

CONSTRUCTED TO PROVIDE A SOLID BASE FOR DRILLING
ENCLOSED SPINDLE ASSY SUPPORTED BY 4 BALL BEARINGS
PERMANENTLY LUBRICATED BALL BEARING SPINDLE ASSY
LARGE QUILL FOR GREATER ACCURACY
LARGE GROUND STEEL COLUMN FOR MAXIMUM SUPPORT
LARGE PRODUCTION TABLE TILTS 45 DEGREES
4-3/4" STROKE FOR DEEP HOLE APPLICATIONS
ACCURATE DEPTH STOP FOR PRECISE HOLE DEPTHS
5/8" DRILL CHUCK AND ARBOR
TELESCOPING SAFETY SPINDLE GUARD
Power: 115/230 (Single)
