NEW DURMA AD-S 25100

DURMA (NEW) MODEL AD-S 25100 CNC HYDRAULIC PRESS BRAKE W/DT-15 CONTROL

110 US TONS
8' 4" BENDING LENGTH
7' 2" BETWEEN COLUMNS
35.4" TABLE HEIGHT
4.1" TABLE WIDTH
10.4" STROKE
20.8" DAYLIGHT
17.71" THROAT DEPTH
426"/MINUTE Y-AXIS RAPID SPEED
24"/MINUTE Y-AXIS WORKING SPEED
284"/MINUTE Y-AXIS RETURN SPEED
0.0004" Y-AXIS PRECISION
1200"/MINUTE BACKGAUGE (X-AXIS) WORKING SPEED
25.5" BACKGAUGE (X-AXIS) WORKING DISTANCE
0.0019" X-AXIS PRECISION
14 HP MOTOR

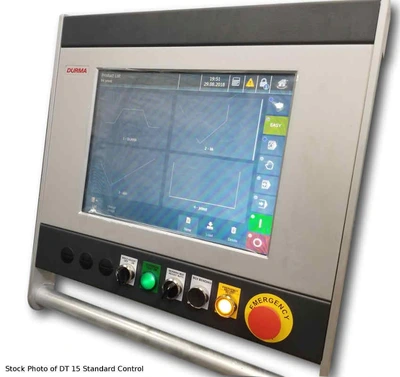

DT-15 CNC CONTROL
- 2D GRAPHICAL TOUCH SCREEN PROGRAMMING MODE
- USB PERIPHERAL INTERFACING
- SENSOR BENDING AND CORRECTION INTERFACE

STANDARD FEATURES
- 4-AXIS Y1, Y2, X, MANUAL R
- FIESSLER LC5 LASER FINGER SAFETY - MANUAL HT ADJUST
- SERVO DRIVEN BACKGAUGE SYSTEM (X-AXIS)
LINEAR GUIDE AND BALLSCREW DESIGN

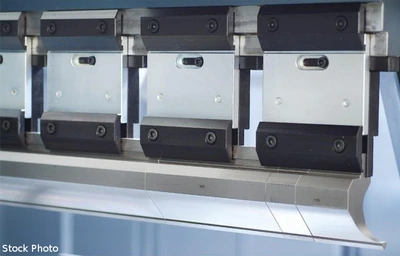

- UNIVERSAL WEDGE STYLE PUNCH CLAMP
(FOR AMERICAN OR EUROPEAN STYLE PUNCHES)
- BOTTOM DIE RAIL ADAPTER
(FOR AMERICAN AND EUROPEAN STYLE DIES)

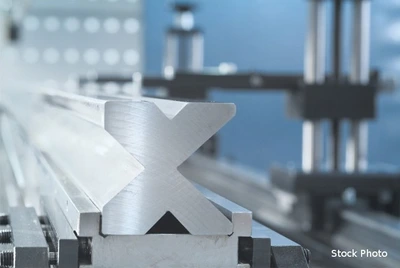

- PRECISION GROUND PUNCH/4-WAY DIE
TOP TOOL - ROLLERI P97.75.R08
BOTTOM TOOL - ROLLERI M.460R.85
- 2 SLIDING FRONT SUPPORT ARMS WITH T-SLOT,
TILTING STOP AND FULL LENGTH LINEAR GUIDE
- 2 BACKGAUGE FINGER BLOCKS
- MANUAL WEDGE-TYPE CROWNING
- LED WORK LIGHT ON TOP RAM

OPTIONS AVAILABLE - PRICE ON REQUEST
- 2-AXIS BACKGAUGE PACKAGE
X-AXIS = 25.59" R-AXIS = 9.8" X, R
- 4-AXIS BACKGAUGE PACKAGE
X-AXIS = 25.59" R-AXIS = 9.8" X, R, Z1, Z2
- CNC CONTROLLED MOTORIZED CROWNING
- DELEM DA-66S CNC CONTROL

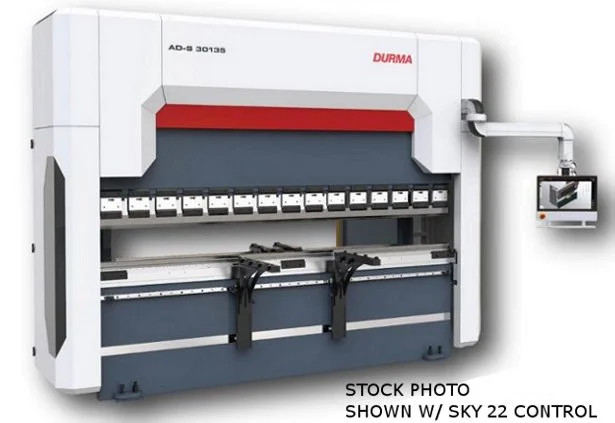

- SKY-22 CNC CONTROL
- DBEND 3D OFFLINE SOFTWARE PACKAGE
CAD/CAM IMPORTING AND SIMULATION
- QUICK RELEASE PUNCH CLAMPS
- ADDITIONAL BACKGAUGE FINGER BLOCKS
- SHORTER TOP TOOL - ROLLERI P97.75.R08
- TALLER TOP TOOL - ROLLERI P135.75.R08

HYDRAULIC OIL REQUIRED
